    GCE 96S high voltage BMS(HV BMS)307.2V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07-S20-125A307.2V
    Certification : CE/ROHS/MSDS
    Price : Negotiable with bruceliu@hngce.com, +86 13620097954(whatsapp)
    Payment Terms : FOB/CFR/EXW
    Supply Ability : 5000pcs / month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    GCE 96S high voltage BMS(HV BMS)307.2V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

    GCE 96S high voltage BMS(HV BMS)307.2V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System

    GCE HV BMS(Battery Management System):

    GCE, a prominent Chinese manufacturer specializing in battery management systems (BMS), possesses extensive experience of over a decade in the research, development, and production of high-voltage BMS solutions. Their BMS offerings excel in handling voltages up to 1500V, rendering them highly suitable for popular lithium-ion battery chemistries such as LFP, NMC, and LTO. These chemistries find wide application in various fields, including residential, commercial, and industrial energy storage systems, as well as uninterruptible power supplies (UPS).
    GCE's BMS products support parallel connections and can be configured in two-level or three-level architectures, ensuring seamless integration across a diverse range of energy storage systems, ranging from kilowatt-hour to megawatt-hour scales. Moreover, the GCE BMS is fully compatible with reputable inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic Power. This compatibility guarantees a high level of flexibility and system-level adaptability.
    With a proven track record, profound technical expertise, and broad compatibility, GCE has firmly established itself as a trusted provider of high-performance BMS solutions. Their products cater to the rapidly expanding energy storage industry, both in China and globally.


    Technical Parameters:

    SPECIFICATION
    Basic Parameters
    Max current
    125A
    Rated voltage
    350V / 750V(Optional)
    Power consumption
    ≤15W
    Current sampling accuracy
    1%FSR
    Insulation withstand voltage
    2800VDC <1mA 1min
    Protection level
    IP20
    Dimension(W*H*D)
    482 * 132 * 500(mm)
    Net weight
    16Kg
    Communication Port
    Communication port with BMU
    CAN
    Communication port with UPS
    RS485/CAN
    Communication port with SBMS
    RS485/CAN
    Communicate with PC software
    Ethernet
    Basic Functions
    Battery charge & discharge management
    Support
    Battery temperature management
    Support
    IAP upgrade
    Support
    System protection parameter setting
    Support
    Short circuit protection
    Support(6KA 20ms)
    Precharge function
    Support
    Parallel loop current control
    Support
    Event record
    Support 5000 records
    Middle line system
    /
    Dual power supply
    Support
    Optional Functions
    Monitor insulation
    ≥300V (Optional)
    HMI display
    4.3-inch(Optinal)
    Parallel
    Support up to 15 RBMS in parallel
    Dry contact
    2 dry contact outputs (optional)
    Others
    Color
    Black
    Installation
    Suitable for standard 19-inch cabinet
    Inlet and outlet line method
    Front side in and front side out.
    Operating ambient temperature
    -20℃~60℃
    Operating ambient humidity
    5%~75%RH
    Compliance with national standards
    GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
    Safety compliance certification
    CE

    Applications:

    High Voltage Battery Management Systems (BMS) play a vital role in a wide array of energy storage applications. They are integral in optimizing the management and utilization of renewable energy sources like solar and wind power in residential, commercial, and grid-scale energy storage systems. By accurately monitoring, balancing, and safeguarding battery packs, these BMS ensure the dependable and efficient operation of these energy storage systems, maximizing their performance, safety, and durability.
    In addition to their applications in the building sector, high-voltage BMS is also crucial in industrial environments. They effectively manage the battery packs of Automated Guided Vehicles (AGVs) and Uninterruptible Power Supplies (UPS), ensuring the uninterrupted and reliable operation of these mission-critical systems. With their advanced features, these BMS solutions assist industrial operators in optimizing the uptime, efficiency, and service life of their battery-powered equipment.
    Across a broad range of applications, high-voltage BMS has become the linchpin in unlocking the full potential of battery-based energy storage systems. They are instrumental in driving the transition towards a more sustainable and resilient energy future.


    GCE 96S high voltage BMS(HV BMS)307.2V 125A Master Slave BMS For Solar Energy Storage System 1MWh 2MWh ESS BMS LFP System


    Hunan GCE Technology Co., Ltd.(GCE) is a leading high-tech company with more than a decade of experience specializing in the research and development, as well as production, of BMS energy storage systems and batteries. Our product offerings cater primarily to industrial and commercial energy storage applications, as well as home energy storage.


    The BMS 30-75S employs an integrated design and relay solution, effectively meeting the lithium battery requirements of multiple strings of smaller-capacity batteries. This design greatly reduces user usage costs.


    The 60s-405S utilizes a three-tier architecture, enabling it to fulfill the series and parallel demands of single high-capacity lithium batteries within the 1500V range.


    Our Stackable Home Energy Storage System offers a range of 7.68KWh to 40.96KWh. It supports the connection of 3 to 8 HV battery modules in series. The system boasts a compact size, lightweight construction, and plug-and-play built-in modules. With a built-in Smart BMS, installation and maintenance are made easy.


    Packing and Shipping:

    Shipping Methods
    Arrive AT
    Delivery From
    By Sea
    Sea port you want
    Any port in China
    By Air
    Airport you want
    Any port of China
    By Railway
    Your door
    Any railway station
    By Express
    Your door
    Changsha City

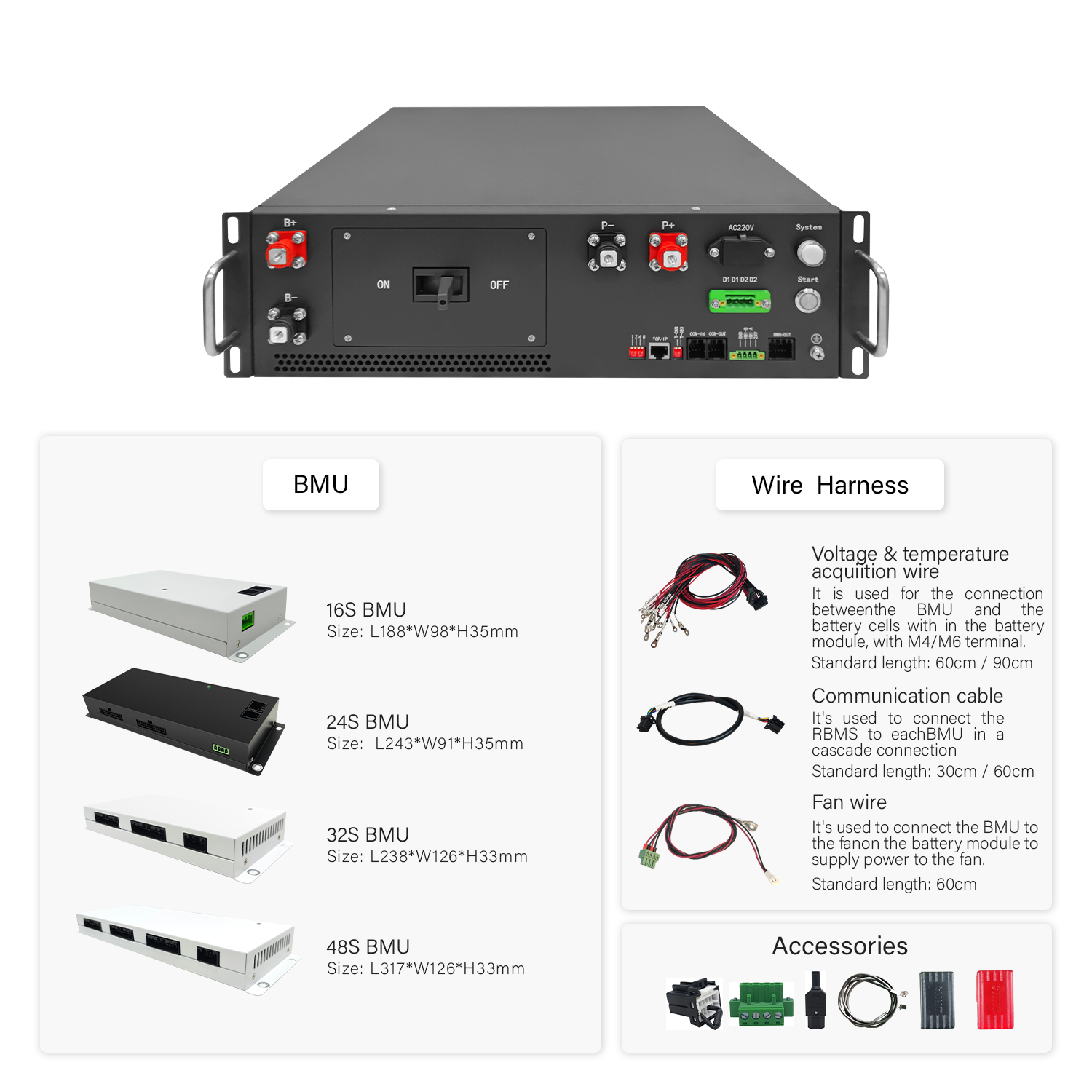

    Packing list: 3U BMS, voltage & temperature acquisition wire, fan wire and communication cable.
