    High Voltage Battery Management System With RS485/CAN Communication 270S 864V 400A Bms For Solar Energy Storage System

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS-S20-400A-1000
    Certification : CE
    Price : negiociate with cara@hngce.com
    Payment Terms : L/C, T/T
    Supply Ability : 5000 sets/month
    Delivery Time : 15-25 days
    • Product Details
    • Company Profile

    High Voltage Battery Management System With RS485/CAN Communication 270S 864V 400A Bms For Solar Energy Storage System

    High Voltage Battery Management System with RS485/CAN Communication 270S 864V 400A bms for Solar energy storage system


    Product Description:

    The Battery Management System (BMS) is a backup battery system designed for use in a wide range of applications, from small consumer electronics to large industrial applications. It provides a reliable and secure way to manage and protect Lithium-Ion (LFP), NMC and LTO batteries. With its easy-to-use communication port with BMU, the BMS offers a high level of protection, with IP20 rating, and event recording capabilities of up to 5000 events. It also offers a wide operating temperature range of -20℃ to 60℃, making it suitable for use in a variety of environments. The BMS also offers a range of advanced features, such as temperature monitoring and balancing, to ensure the optimal performance and longevity of the batteries. With its advanced features and reliable protection, the BMS is the ideal solution for all battery management needs.

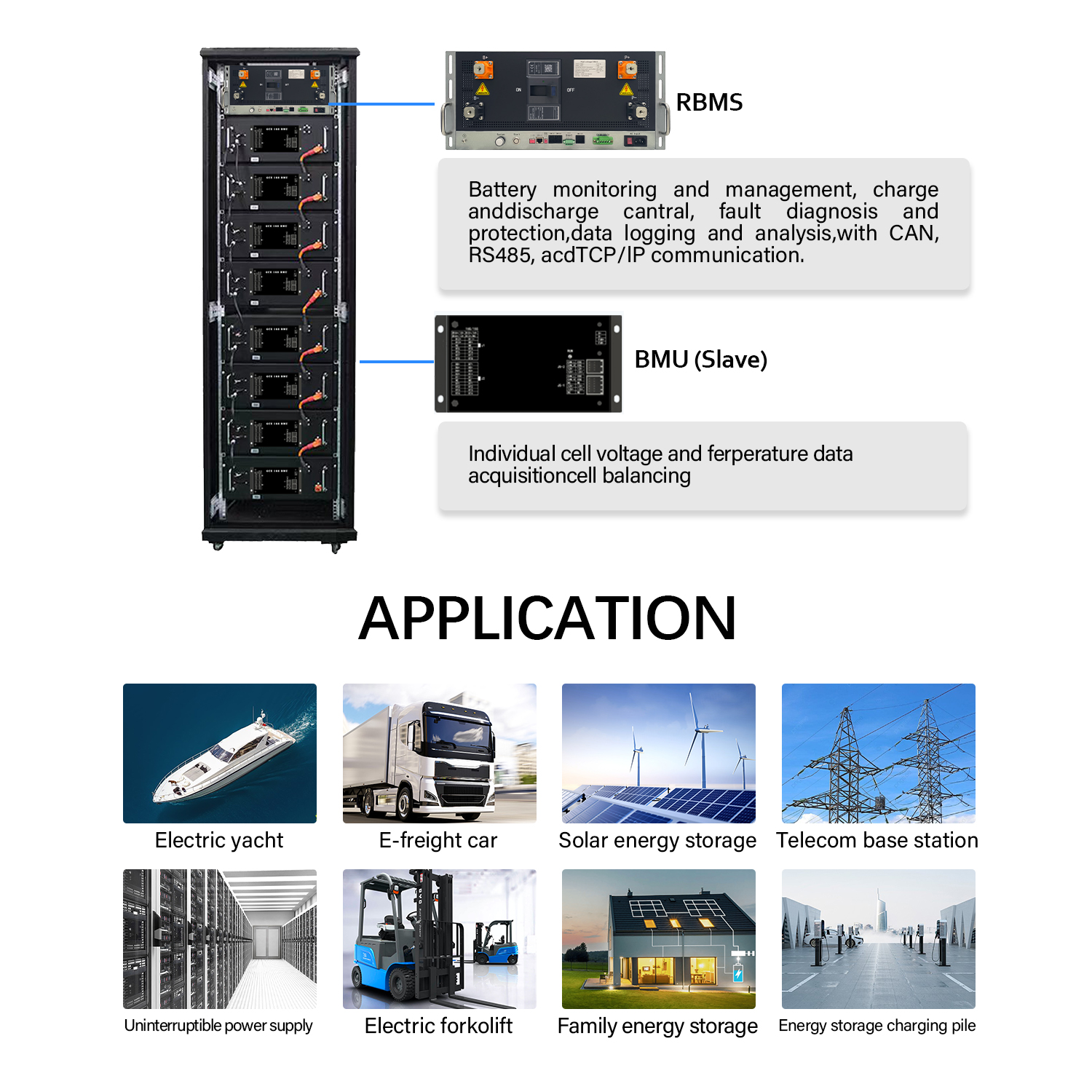

    Applications:

    1. PV power plant storage systems

    2. in island off-grid energy storage scenarios

    3.Optical storage charge integration

    4. lithium ion battery storage

    5.energy storage include UPS power supplies and 220V DC power supply, as well as for rail transit 110V DC power supplies.

    6. energy storage systems (ESS) as well as in Solar ESS systems .

    Customization:

    GCE RBMS07-S20-400A432V high voltage BMS(HV BMS) for LiFePO4

    GCE RBMS07-S20-400A432V is a high voltage Battery Management System (BMS) designed to manage LiFePO4 batteries. It has a Master-Slave configuration for communication and features RS485/CAN port for communication with SBMS. The current range is 400A/500A, voltage range is 92V-1500V, and the protection level is IP20. It is CE/RoHS/SGS/MSDS certified and operates at an ambient humidity of 5%~75%RH.


    Features:

    • high voltage BMS(HV BMS) for LiFePO4
    • Master-Slave configuration
    • RS485/CAN port for communication with SBMS
    • Current range is 400A/500A
    • Voltage range is 0V-1500V
    • Protection level is IP20
    • Operates at an ambient humidity of 5%~75%RH
    • CE/RoHS/SGS/MSDS certified

    Secification:

    SPECIFICATION
    Basic parameters
    Max current
    400A / 500A (Optional)
    Rated voltage
    350V / 700V / 1000V (Optional)
    Power consumption
    ≤15W
    Current sampling accuracy
    1%FSR
    Insulation withstand voltage
    2800VDC <1mA 1min
    Protection level
    IP20
    Dimension(W*H*D)
    485 * 220 * 550(mm)
    Net weight
    ~32Kg

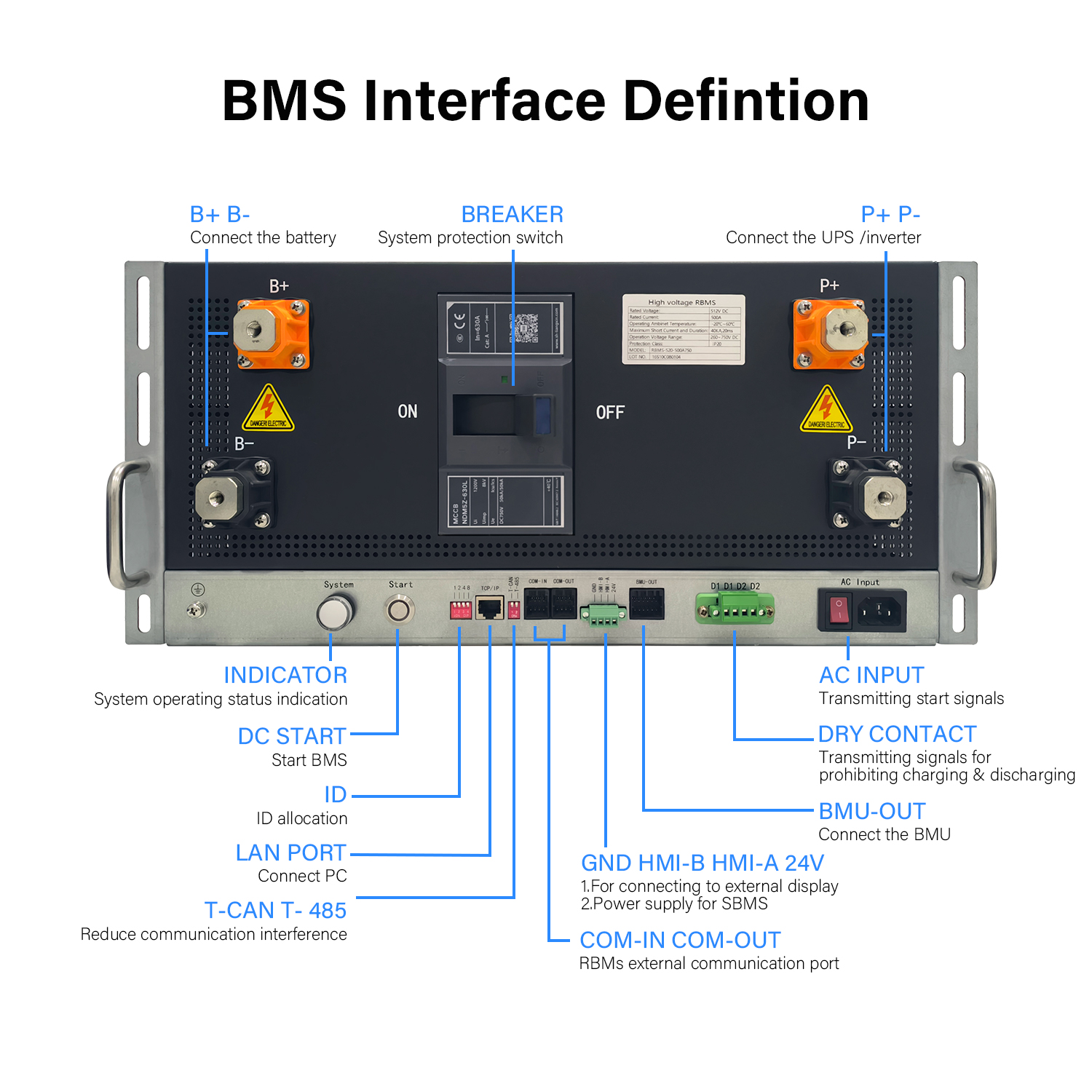

    Communication port
    Communication port with BMU
    CAN
    Communication port with UPS
    RS485/CAN
    Communication port with SBMS
    RS485/CAN
    Communicate with PC software
    Ethernet
    Basic functions
    Battery charge and discharge management
    Support
    Battery temperature management
    Support
    IAP upgrade
    Support
    System protection parameter setting
    Support
    Short circuit protection
    Support(6KA 20ms)
    Precharge function
    Support
    Parallel loop current control
    Support
    Event record
    Support 5000 records
    Middle line system
    Support(Optional)
    Dual power supply
    Support(Battery + municipal power
    supply, municipal power in priority)
    Optional functions
    Monitor insulation
    Optional
    HMI display
    3.5", 7" display(optional)(external)
    Standalone or parallel
    Set-up completed before leaving the factory
    Dry contact
    2 dry contact outputs (optional)
    Others
    Color
    RAL9005 black sand grain
    Installation method
    Suitable for standard 19-inch cabinet installation
    Inlet and outlet line method
    Front side in and front side out.
    Operating ambient temperature
    -20℃~60℃
    Operating ambient humidity
    5%~75%RH
    Compliance with national standards
    GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
    Safety compliance certification
    CE

    Support and Services:

    Technical Support and Service for Battery Management System

    The Battery Management System from our company is designed to optimise the performance of your battery and extend its life. We provide a variety of technical support and services to ensure your Battery Management System runs smoothly and safely.

    Technical Support

    Our technical support team is available to answer any questions you may have about the Battery Management System. We offer 24/7 online support as well as phone support during normal business hours. We also provide troubleshooting assistance and software updates to ensure your system is up-to-date.

    Maintenance and Repair Services

    We provide regular maintenance services to keep your Battery Management System running properly and efficiently. In the event of a malfunction or breakdown, we offer repair services to quickly get your system back up and running. Our experienced technicians are available to provide on-site repair services to ensure your system is running at its best.

    Warranty Services

    We provide a one-year warranty on all our Battery Management Systems. This warranty covers parts and labor for any defects in materials or workmanship. If your system fails to operate during the warranty period, we will repair or replace it at no cost to you.

    Packing and Shipping:

    The Battery Management System will be packaged and shipped in a secure manner to ensure its safe delivery to the customer. The system will be packaged in a cardboard box and wrapped in foam for additional protection. It will be shipped through a reliable courier service or postal service with tracking information provided.

    FAQ:

    Q1: What is the brand name of the Battery Management System?

    A: The brand name of the Battery Management System is GCE.

    Q2: What is the model number of the Battery Management System?

    A: The model number of the Battery Management System is RBMS07-S20-400A624V.

    Q3: Where is the place of origin of the Battery Management System?

    A: The place of origin of the Battery Management System is China,Hunan.

    Q4: What certification does the Battery Management System have?

    A: The Battery Management System has CE/RoHS/SGS/MSDS certifications.

    Q5: What is the minimum order quantity for the Battery Management System?

    A: The minimum order quantity for the Battery Management System is 1set.


    COMPANY INFORMATION:


    Hunan GCE Technology Co., Ltd. is a high-tech company specializing in the research and development of BMS and
    lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by
    our company adopts the international leading technology, which greatly improves the battery management efficiency and
    prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced
    by most competitors for our BMS.
    4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary
    development compatibility. 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium
    battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users. 60s-270s adopts
    master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium
    batteries within 1000V.
    By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium
    battery peripherals to meet the high-quality needs of the market
