To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | 2U |
| Certification : | CE/RoHS/SGS/MSDS |
| Price : | negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076 |
| Supply Ability : | 2000 sets/month |
| Delivery Time : | 15-20 days |
GCE 144V/45S 50Amp 2U Best Bms For Lifepo4 High Voltage Battery
How to custom your demand BMS
1. Firstly, inform us of your demand voltage, cell capacity, Max current, and so on.
2. Second, help to fill in the customer's detailed demands specification table for reference.
3. Third, according to your requirements recommend you the suitable BMS solutions
4. Fourth, quote and discuss
5. Fifth, release the sample order or trial order
6. Sixth, arrange the production and update the production status
7. Seventh, arrange shipment
8. Eighth, arrival quality test
9. Ninth, reorder or exploitation another new BMS project again.
 |  |  |
12S-24S BMU(Slave)

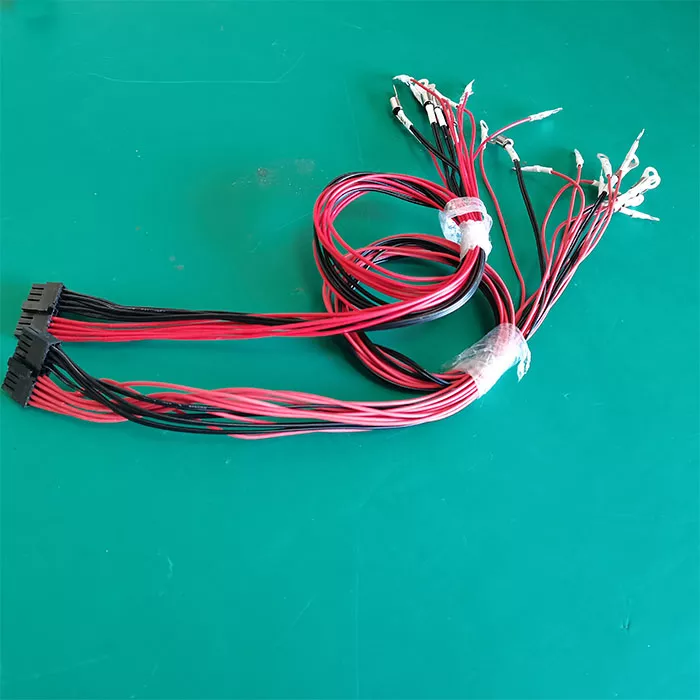

| Wire harness-Signal acquisition wire

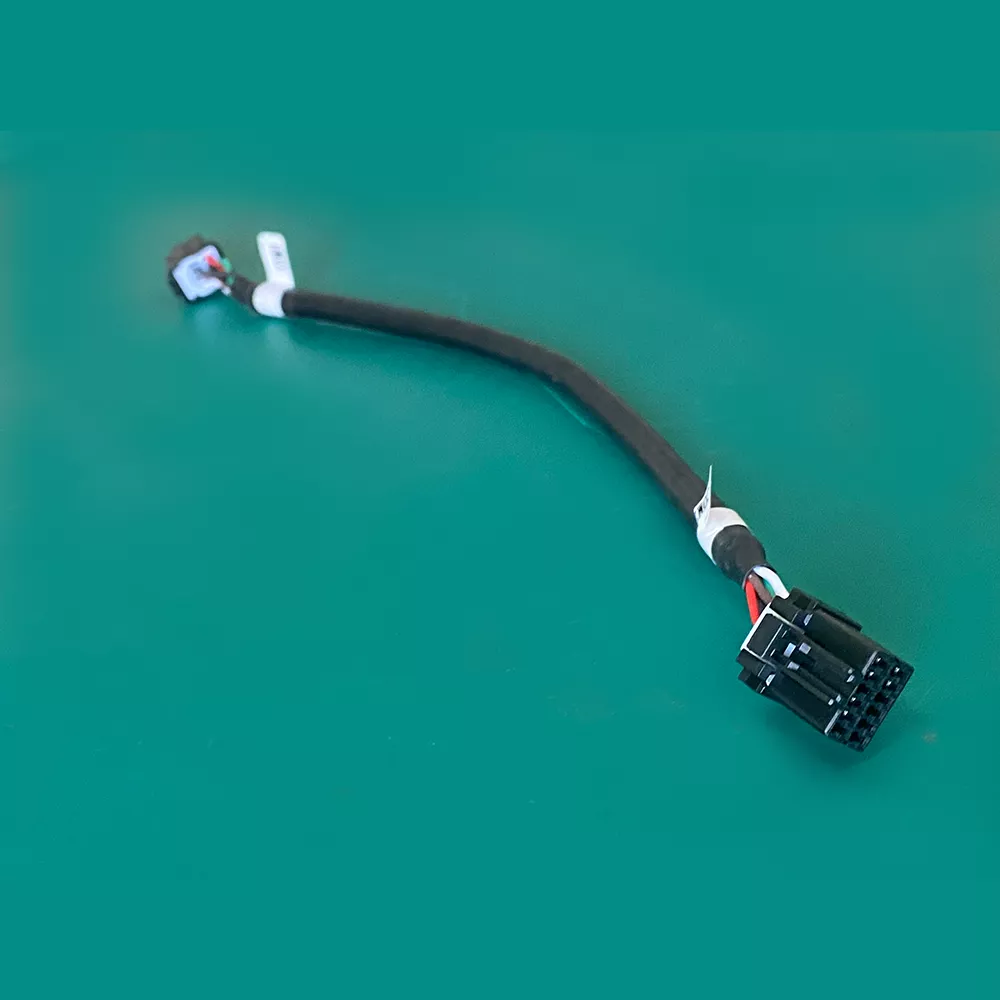

| Wire harness-communication wire
|
 |  |  |

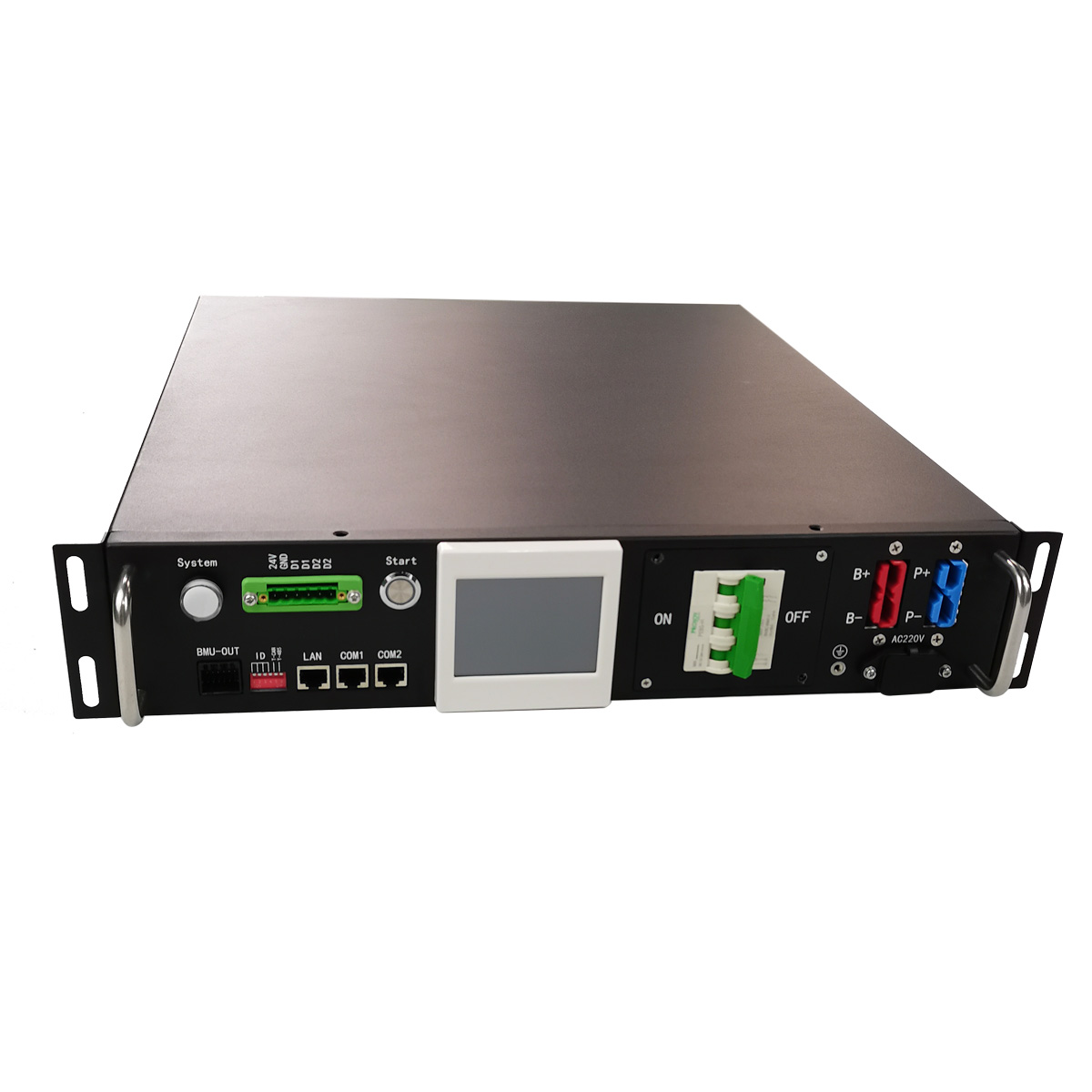

2U master BMS Model no.: RBMS07S2-3-63A144V 1set Master BMS, 3 sets 15S Slave BMU 3 sets 15S Wire Harness 2U standard 19inch case Efficient, stable, and reliable W482*H132*D500mm | |
 |  |
| 2U Master BMS is developed by GCE technical team. | We use advanced technology and a strong R & D team to build this efficient, stable, and reliable high-voltage BMS for several years. |
 |  |
| We provide the overall solution of BMS to ensure the quality and superior performance of our products. | |
Other BMS We Made:
| 2U BMS: | 3U BMS |
Voltage Range:120V-680V Protecting method: MCCB+Contactor Rated Current range: -125A~125A Voltage Range: 120V-680V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes(Optional) Dry contact output :Up to 3 Maximum qty of BMUs:13 Power consumption:≤15W Size:3U (482*132*500mm) Net weight:~15kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS | Protecting method: MCCB+Contactor Rated Current range: -125A~125A Voltage Range: 120V-680V n Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes (Optional) Dry contact output :Up to 3 Maximum qty of BMUs:13 Power consumption:≤15W Size:3U (482*132*500mm) Net weight:~15kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS |
 |
 |
| 4U BMS: | 5U BMS: |
Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:4U (482*180*500mm) Net weight:~22kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS | Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -500A~500A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:5U(482*220*500mm) Net weight:~32kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS |
 |
 |
| Center Tap BMS: | Integrated BMS: |
Voltage Range: 192V(±96V), 288V(±144V), 384V(±192V), 480V(±240V), 576V(±288V), 672V(±336V), 768V(±384V), 864V(±432V) Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 192V(±96V)~864V(±432V) Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤25W Size:4U (482*180*500mm) Net weight:~22kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS | Strings:30-75S Current:50A,100A System Operating Voltage Range:120V-370V Battery Strings: 30S-75S SOC: ≤5% Communication Mode: RS485/CAN Hall Sensor Specifications: 50A/100A Charging Temperature: -10~75℃ Discharging Temperature: -20~75℃ Power consumption:≤10W Size:410*232*128mm) Net weight:~4.5kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS |
 |
 |
1. Devoated in BMS solution over ten years experience
|
|
