To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-50A409.6V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 12-20 work days |
120V 144V 192V 240V 384V 480V 50A BMS
96S BMS Battery Management System Lifepo4 BMS 120V 144V 192V 240V 384V 480V 50A Relay BMS With RS485 CAN Communication
BMS Configuration
96S 307.2V 50A high voltage BMS(HV BMS) * 1set
16S BMU * 6sets
16S wire harness *6sets
(16S 51.2V battery module,6 modules in series for 96S 307.2V 50A system)
| Item | Picture | Description |

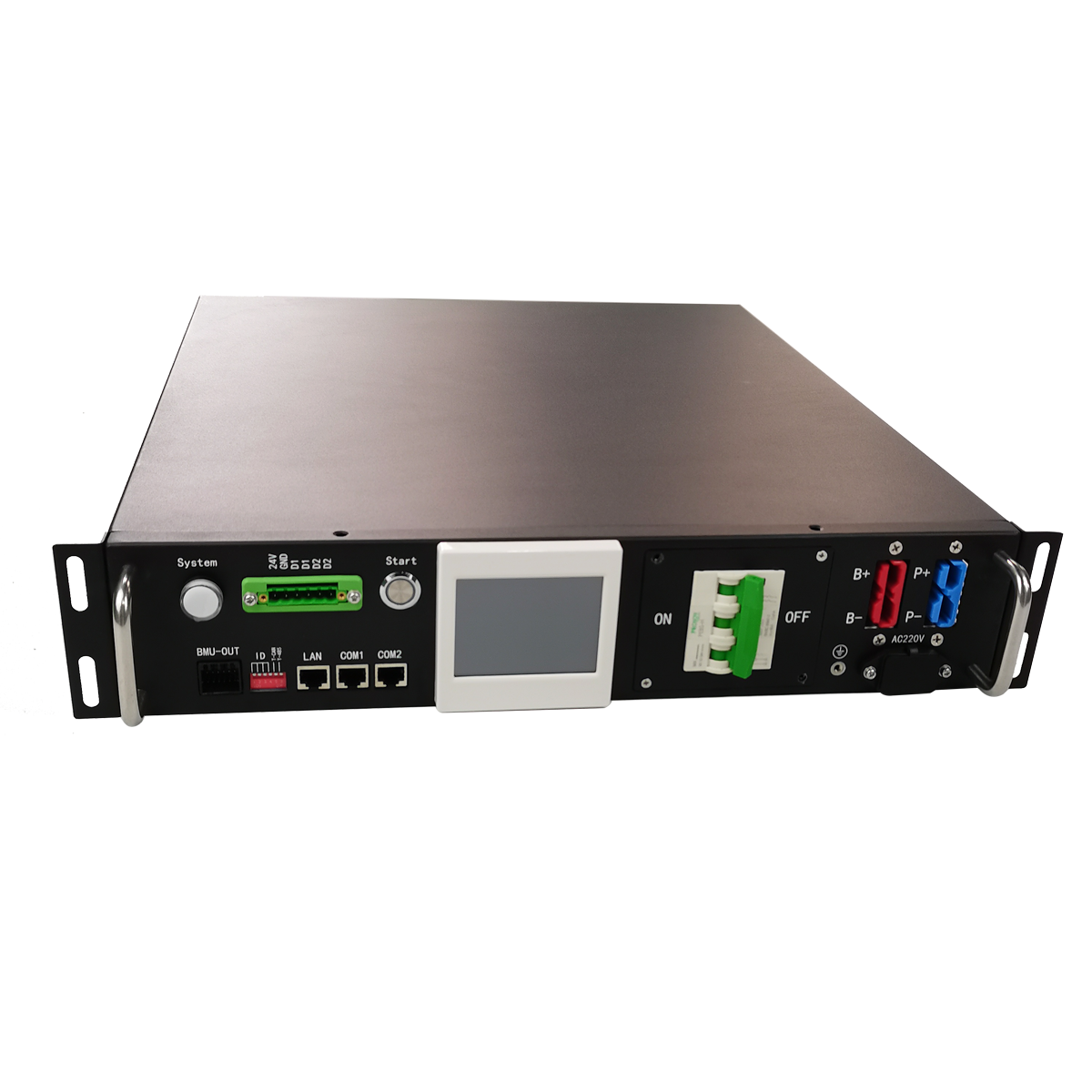

| 2U Master BMS |  | 1.Relay solution BMS with 3.5inch touch screen 2.Master BMS With RS485 & CAN communication 3.high voltage BMS(HV BMS) Compatible with various brands of inverters, such as Sermatec, Sofar, Goodwe, ATESS, Growatt, Megarevo, Voltronic, Victron Power...... 4. BMS for LFP LTO NMC battery 5.Voltage: 96V-500V 6.Current: 50A (Specificaiton: 30S 96V 50A BMS, 45S 144V BMS, 60S 192V BMS, 75S 240V 50A BMS, 288V 50A BMS, 96S 307.2V 50A BMS, 110S 352V 50A BMS, 120S 384V 50A BMS, 135S 432V 50A BMS, 150S 480V 50A BMS) |

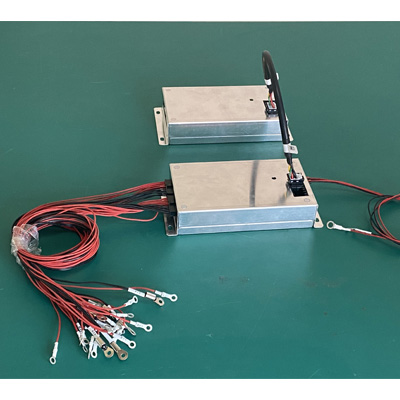

| Slave BMU |  | 12S-24S optional BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V),
voltage detection range 0-5V,12V power supply,consumption less
20mA, CAN2.0 B communication |

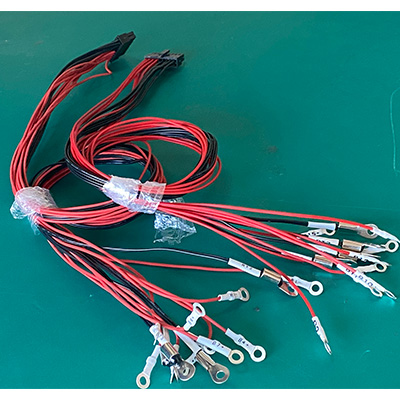

| Acquisition Wire |  | 18 Pin+20Pin wire Standard length: 600mm ,900mm, 1200mm Tempreture sensor wire: standard length is 600mm,900mm,1200mm |
| Communication Cable |  | Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance |
Application
Battery Management System for Battery Energy Storage System(BESS)
Battery Management System for Off-grid energy storage
Battery Management System Data Center
Battery Management System for solar battery system
Battery Management System for UPS power supply
Battery Management System for Photovoltaic farm
Specification

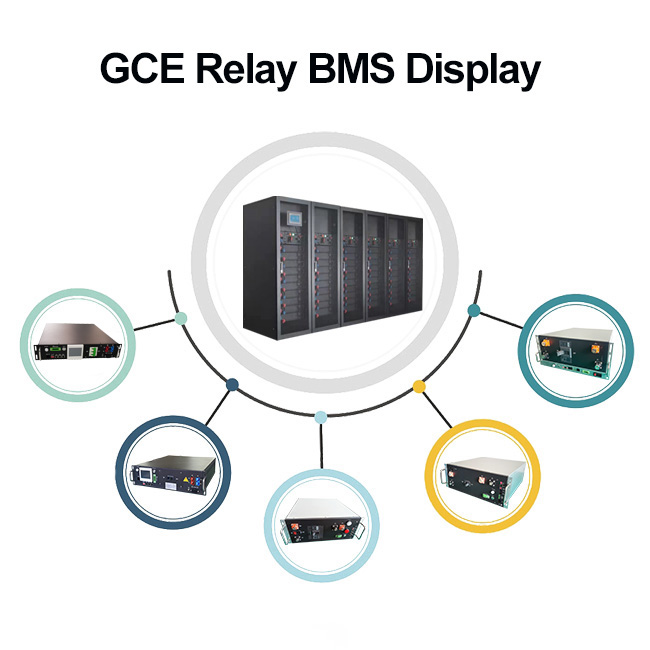

Products Display
GCE High Voltage Battery Management System Solution
GCE high voltage BMS(HV BMS) is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.
FAQ
Q. What is your MOQ?
A: 2 unit
Q. How long is the lead time?
A: 12-20 workdays.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see battery information real time.
Q. What specification of BMS do you have ?
A: We provide 96V-1000V, 50A~500A BMS for LFP, NCM. LTO Batteries.
