6U high voltage BMS(HV BMS) Lithium Battery Management System 400A 500A For ESS UPS Energy Storage
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Product Features:
※ Advanced battery management system---The highly integrated battery management system can realize seamless monitoring. ※ Perfect self-test and running status detection function, with HMI display screen, the system running information is clear at a glance. ※ Perfect and reliable system control and protection strategy, fully guarantee the safety of the battery and escort to prolong the life of the battery pack. ※ Modular design, configurable and expandable---multiple energy storage units can be flexibly combined to expand into a larger energy storage system, which can support up to 256 cells (400 cells for lead-carbon batteries) in series. ※ Rich communication interfaces---multi-channel RS485, CAN, Ethernet, dry contact input and output, and other interfaces, support communication with most PCS and monitoring servers on the market. ※ The communication interface protocol is flexible---the factory comes with the company's communication protocol, and can also adapt to the PCS of different manufacturers according to customer needs ※ The capacity is big---the built-in large-capacity storage chip that can store a large amount of key operating data, and an SD card can be added to store the historical data of the battery cells ※ Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs. |
 |
Product Specification:
Product name | 6U RBMS |
Basic parameter | |
Maximum current | 400A.500A(optional) |
Maximum voltage | 350V.750V.1000V, Use it according to the matches rated voltage |
| Power Consumption | ≤25W |
Current sampling accuracy | 1%FSR |
| Insulation withstand voltage | 2800VDC ＜1mA 1min |
| Protection class | IP20 |
Dimensions (W * H * D) | 485*260*550(mm) |
| N.W. | ~40Kg |
Communication interface | |
| Communication port with BMU | CAN |
| Communication port with UPS | RS485/CAN |
Communication port with the SBMS | RS485/CAN |
Communication with the monitoring software | Ethernet |
| Basic function | |
Battery charge, discharge management | support |
Battery temperature management | support |
IAP upgrade | support |
System protection parameter settings | support |
short-circuit protection | Support (50KA 20ms) |
Pre-charging function | support |
And mechanical circulation control | support |
incident record | Support for 5,000 pieces |
duplicate supply | Support (battery + mains power supply, mains power priority) |
| Optional function | |
Insulation detection | Apply to the minimum system above 300V |
HMI display screen | 3.5 In, 7 " optional (plug-in) |
Single-alone or parallel functions | The Setup is completed before leaving the factory |
Dry contact point | Up to 2-way dry contact outputs |
Other | |
Appearance color | RAL9005 black sand grain |
way to install | Suitable for standard 19-inch cabinet installation |
The way in and out | Before going out |
Use ambient temperature | -20℃~60℃ |
Use ambient humidity | 5%~75%RH |
Comply with national standards | GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 |
Safety regulations certification | Meet the CE certification standards |
| |
RBMS Random Accessories List:
Name | Specification | Quantity number | Figure legend |

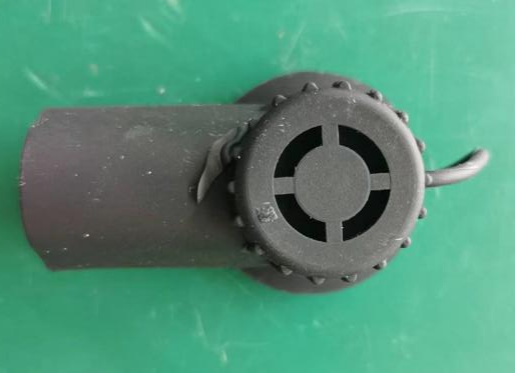

Power terminal sheath | black | 2 |  |
Power terminal sheath | orange | 2 |  |
External communication line | 6-core shield-2 m | 1 |  |
AC socket (switchable) | 250V 10A | 1 |  |
Dry contact connection terminals | 5.08-4Pin | 1 |  |

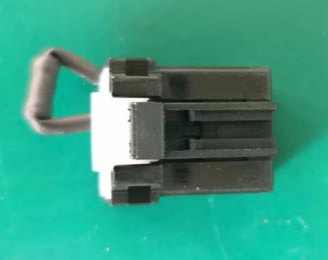

Terminal matching resistance | 120R | 1 |  |
Display screen wiring terminal | 3.81-4Pin | 1 |  |
Circuit breaker auxiliary operating handle | 1 |  |
