To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-250A480V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
Master Slave BMS 165S 528V 250A BMS for LFP 15S 16S 48V 51.2V Battery module 3-architecture BMS
BMS Configuration
165S 528V 250A High Voltage BMS * 1set
15S BMU * 11sets
15S wire harness *11sets
(15S48V battery module,11 modules in series for 165S 528V 250A
system)
Product Features
| 1 | Advanced battery management system---The highly integrated battery management system can realize seamless monitoring. |
| 2 | Perfect self-checking and running status checking function, with HMI display screen, system running information is clear at a glance. |
| 3 | Complete and reliable system control and protection strategies, comprehensively guarantee battery safety, and escort to extend the life of battery packs. |
| 4 | Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system. |
| 5 | Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS and monitoring servers on the market. |
| 6 | The communication interface protocol is flexible---the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs. |
| 7 | The built-in large-capacity memory chip can store a large amount of key operating data, and an SD card can be added to realize battery historical data storage |
| 8 | Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs. |
Application
GCE Battery Management System for Solar Power System
GCE Battery Management System for Lithium ion Battery Pack
GCE Battery Management System for Battery Energy Storage
System(BESS)
GCE Battery Management System for Industrial and Commercial Battery
Solution
GCE Battery Management System for Photovoltaic Farm
GCE Battery Management System for Off-grid energy storage
GCE Battery Management System for Home Energy Storage
GCE Battery Management System for Data Centre
GCE Battery Management System for Grid Frequency Modulation Energy
Storage
GCE Battery Management System for Portable Power Station
GCE Battery Management System for UPS Power Supply
GCE Battery Management System for LifePO4 pack
GCE Battery Management System for Lithium ion Batteri Pack
GCE Battery Management System for Micro-grid applications
GCE Battery Management System for Wind Energy Storage
Specification
Product Name | 150S 528V 250A high voltage BMS |
Model no. | RBMS07S2-3-250A528V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 28kg |
Products Display

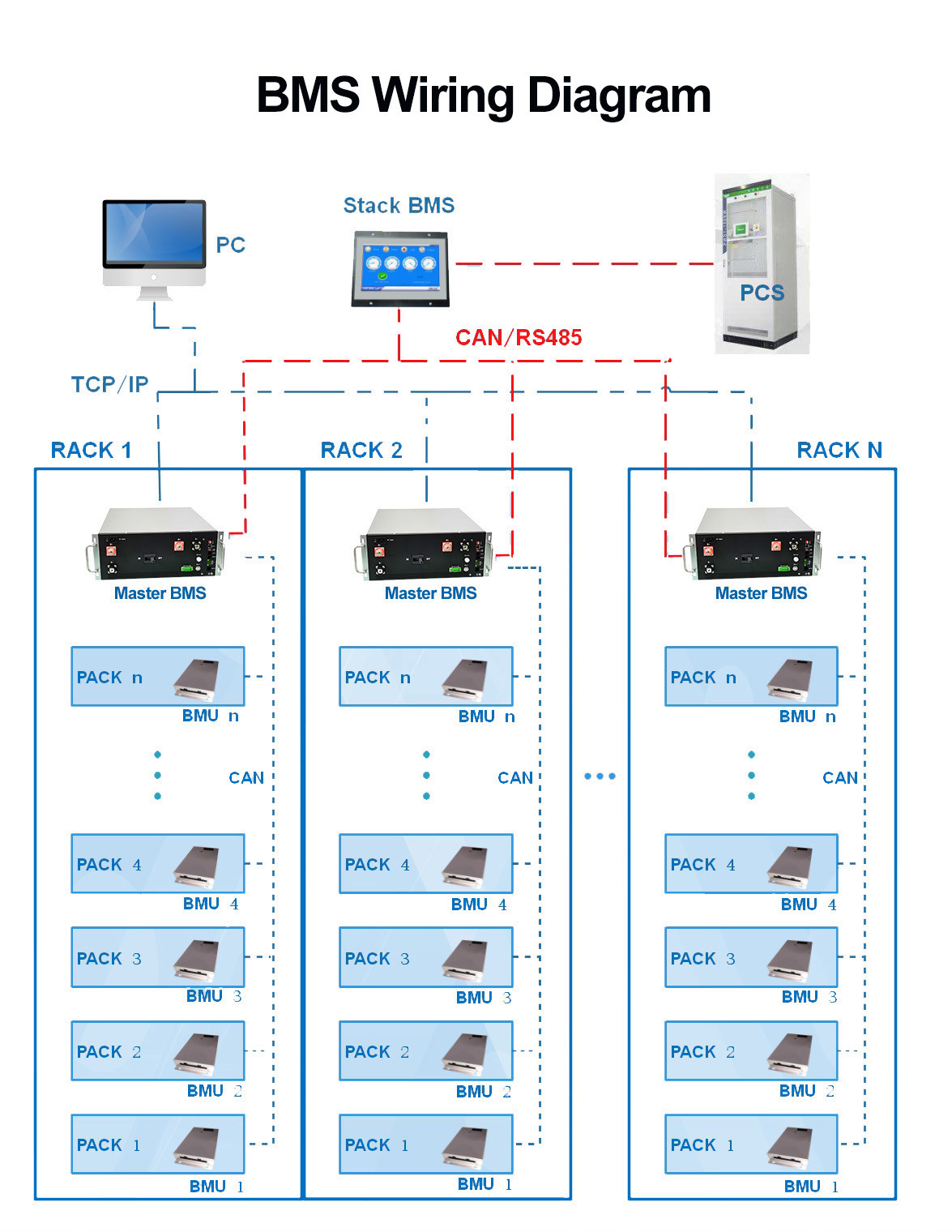

GCE High Voltage Battery Management System Solution
GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.
