To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-160A384V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20000sets / Month |
| Delivery Time : | 10-15 work days |

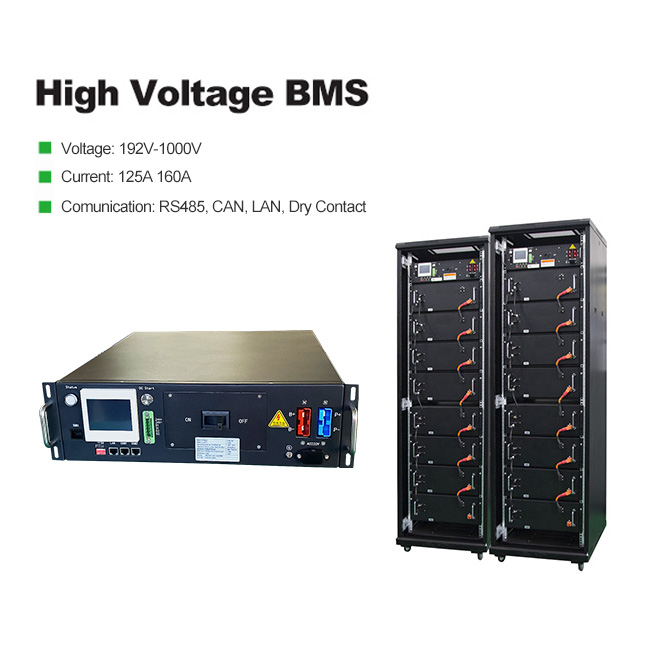

Battery Management System Lithium Ion 120S 384V 160A Smart BMS Lifepo4 BMS 15S 16S BMU In Series For BESS UPS Solar PV
BMS Configuration
120S 384V 160A High Voltage BMS * 1set
15S BMU *8sets
15S wire harness * 8sets
(15S48V battery module, 5 modules in series for 120S 384V 160A system)
 |
| * 4U BMS: Voltage 240V-1000V. Current 250A * Slave BMU: 12s-16S, 17-24s * Wire harness standard length 600mm,900mm,1200mm with M4/M6 terminal * Support multiple BMS connected in paralle to achieve higher capacity. |
Specification
Product Name | BMS |
Model no. | RBMS07S2-3-125A384V |
protecting method | MCCB+Contactor |
Rated Current range | -125A~125A |
Voltage Range | 48V-384V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 17kg |
Products Display
BMS Application
GCE HV BMS for solar power system
GCE HV BMS for UPS battery bank
GCE HV BMS for photovoltaic farm
GCE HV BMS for data center
GCE HV BMS for wind energy storage system
GCE HV BMS for off grid energy storage system
GCE HV BMS for industrial and commercial energy storage
FAQ
Q. What is your MOQ?
A: 1set is available for quality checking and market testing.
Q. How long is the lead time?
A: 12-15 workdays.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see
battery information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP, NCM. LTO Batteries.
Integrated BMS: 30S, 40S, 50S, 60S, 64S, 75S, 96V-240V 50A / 100A
2U BMS: 192V, 240V, 256V, 288V,336V,384V......500V
3U BMS:192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 125A / 160A
4U BMS: 192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 250A
5U BMS: 192V,204.8V, 358.4V, 409.6V, 460.8V, 716.8V,......1000V, 400A / 500A
