To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-125A336V |
| Certification : | CE |
| Price : | Please contact： ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20000sets / Month |
| Delivery Time : | 10-15 work days |
GCE Battery Management System
Bms Battery Management System 105S 336V 125A For Lithium Ion Battery ESS UPS Off Grid Hibrid Solar Power System
BMS Configuration
105S 336V 125A high voltage BMS(HV BMS) * 1set

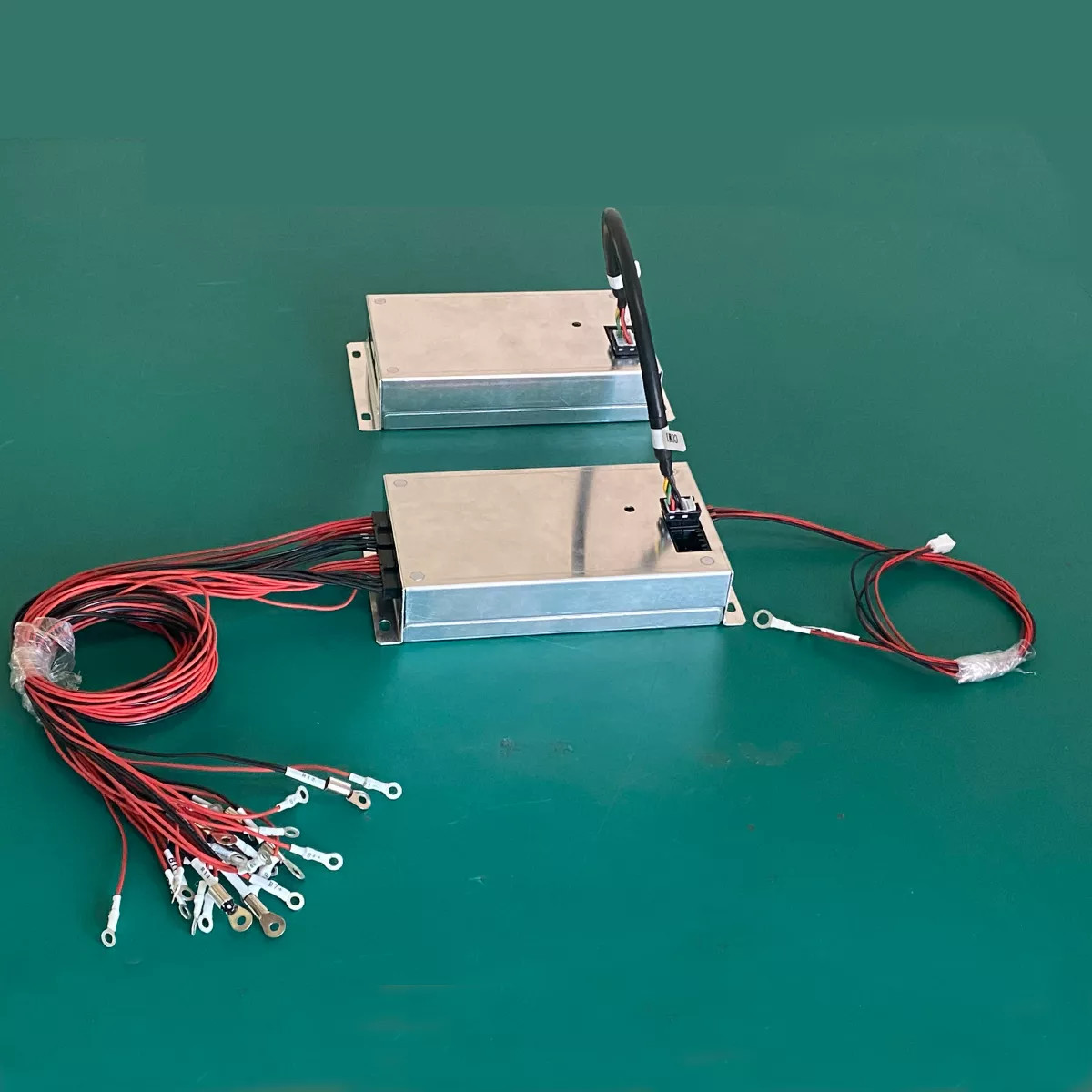

15S BMU *7sets

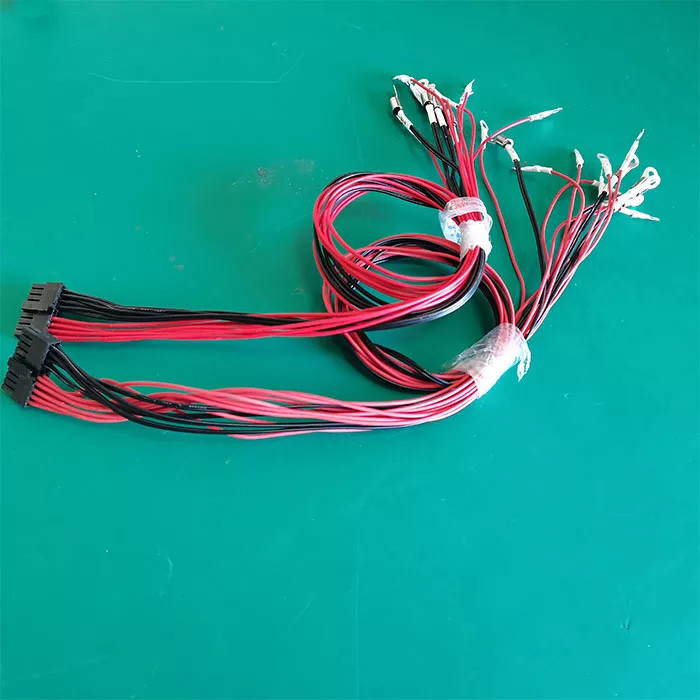

15S wire harness * 7sets
(15S48V battery module, 7 modules in series for 105S 336V 125A system)
 |  |  |  |
| Master BMS | Slave BMU | Wire Harness | Commucation Cable |
Specification
Product Name | Battery Management System (BMS) |
Model no. | RBMS07S2-3-125A336V |
protecting method | MCCB+Contactor |
Rated Current | 125A |
Voltage | 336V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Net weight | 17kg |
Application
high voltage BMS(HV BMS) for UPS battery bank
high voltage BMS(HV BMS) for solar power system
high voltage BMS(HV BMS) for photovoltaic farm
high voltage BMS(HV BMS) for wind energy storage system
high voltage BMS(HV BMS) for industrial and commercial energy storage
high voltage BMS(HV BMS) for data center
high voltage BMS(HV BMS) for off grid energy storage system
Products Display
Shippment
By Air
By Sea
By express: EMS, TNT, UPS, Fedex, DHL
We can arrange shipment as your request.
FAQ
Q. What is your MOQ?
A: one unit.
Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20
days depending on requirement and quantity.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery
information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.
Integrated BMS: 96V-240V 50A / 100A
2U BMS: 192V-500V, 50A / 100A

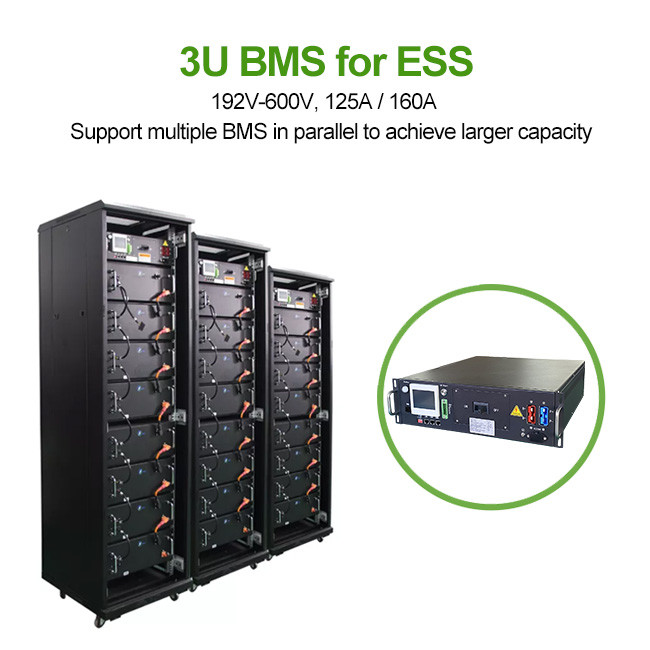

3U BMS:192V-600V, 125A / 160A
4U BMS: 192V-1000V, 250A
5U BMS: 192V-1000V, 400A /500A
