GCE High voltage battery management system(BMS)

High Voltage BMS 255S 816V 250A Battery Management System With 15S 16S 19S 20S 21S 22S 23S
24S BMU Slave BMS For Energy Storage System UPS Data Center

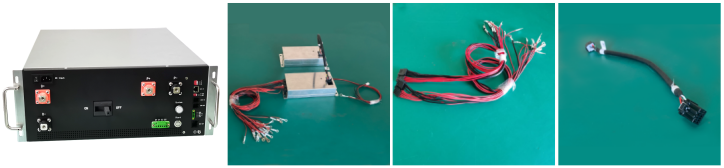

BMS Configuration

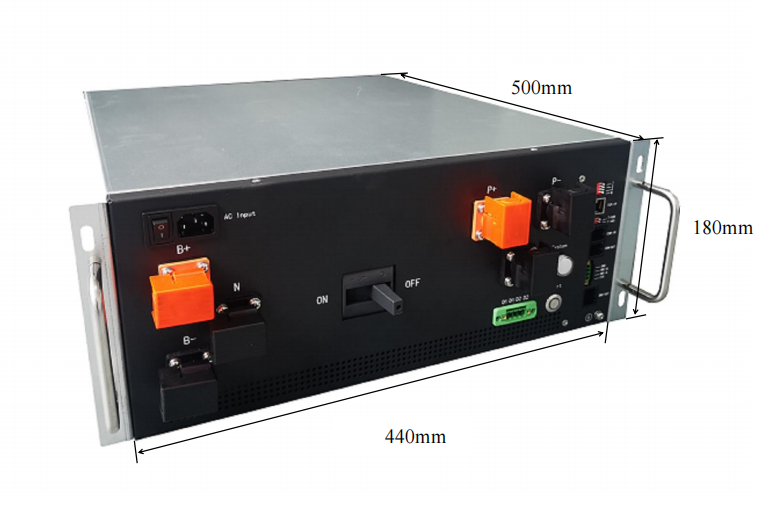

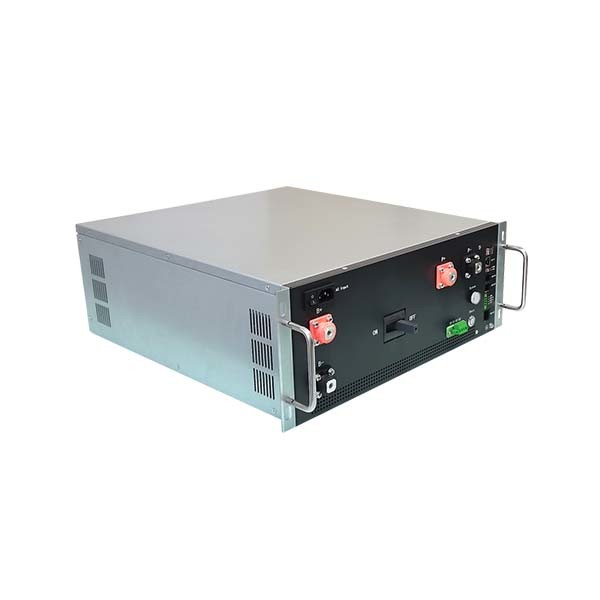

225S 816V 250A High Voltage BMS * 1set
15S BMU * 15sets
15S wire harness *15sets
(15S48V battery module, 15 modules in series for 225S 816V 250A system)

- GCE Relay BMS 50a 125A 160A 250a 400a 500A 30S-270S smart bms lifepo4 48v 15s Slave BMU for inverter UPS ESS.
- We can design it for various lithium batteries like LiFepo4, NMC, LTO etc.
- GCE BMS Support 30S-270S,96V-864V.
- BMS manufactured by high quality relay and IC.
- Over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.

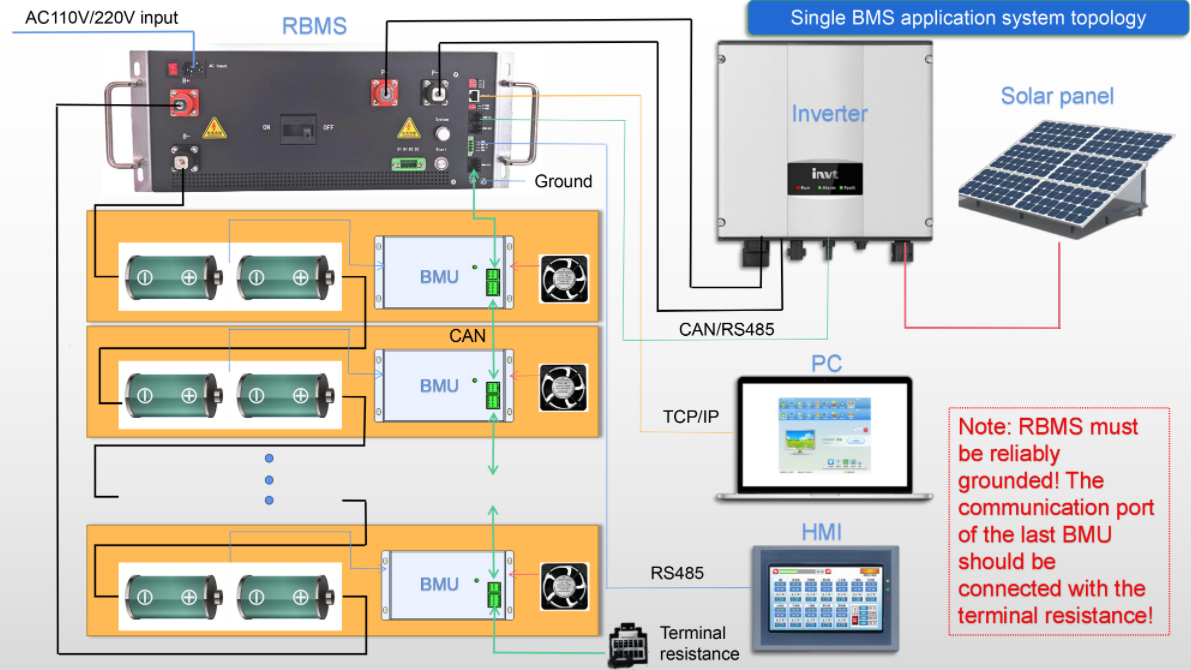

- From kWh to MWh, GCE High-Voltage BMS manages up to 1000 VDC per battery rack (battery stack) and up to 8 racks (stacks)
in parallel with the addition of SBMS for Multi rack / stack.


Specification

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
