Center Tap BMS
* RS485, CAN, LAN, Dry contact

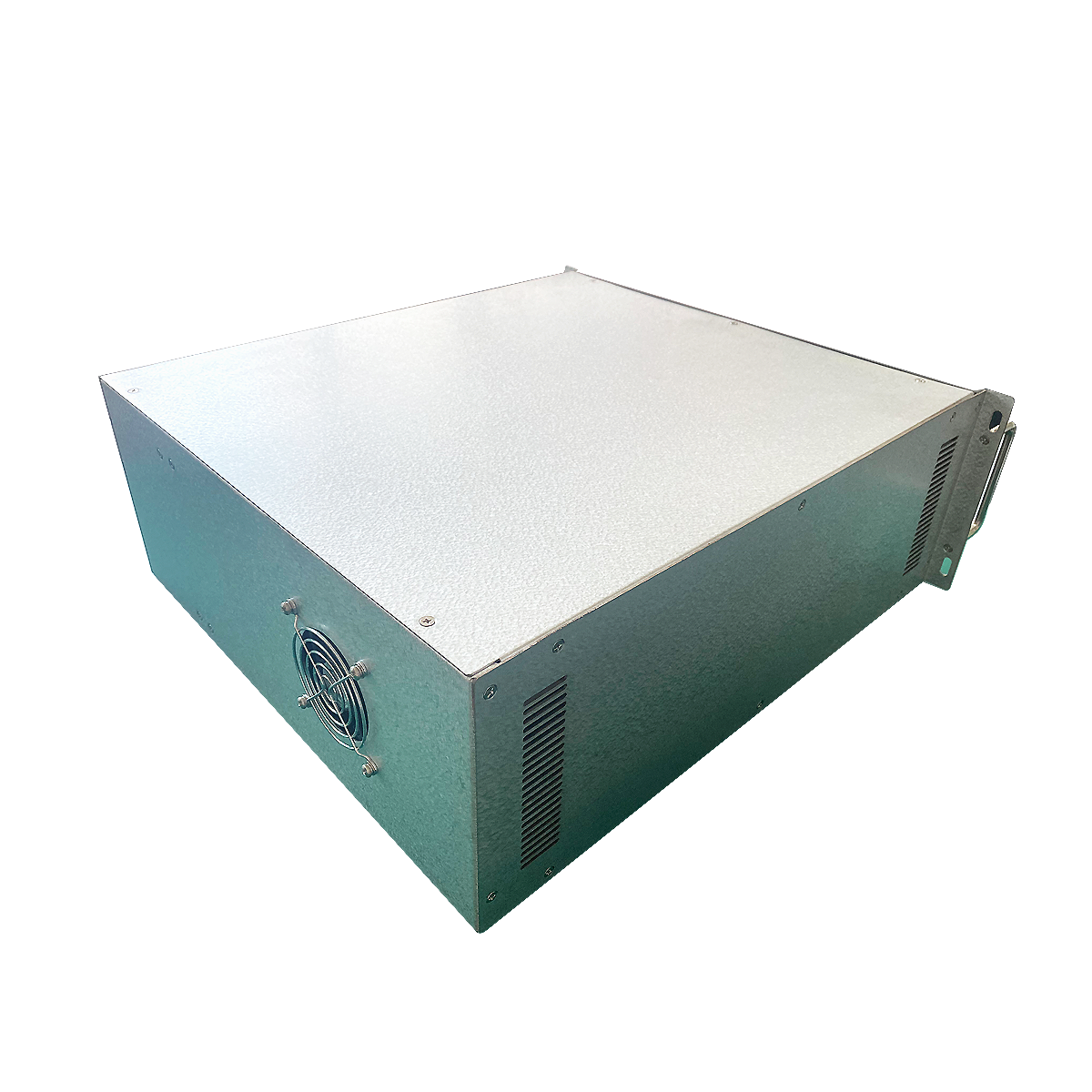

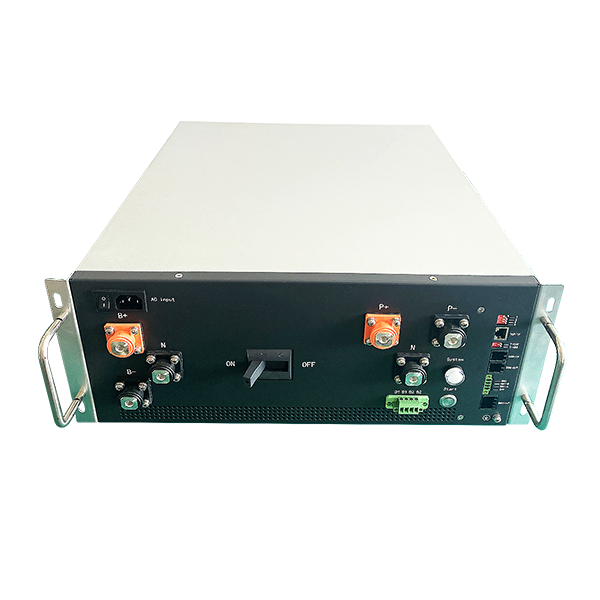

* 4U standard 19inch case * Efficient, stable and reliable * size:W440*H178mm*D500
* RS485, CAN, LAN, Dry contact
* 4U standard 19inch case * Efficient, stable and reliable * size:W440*H178mm*D500
Specification
Product Feature
1. Support 150 series single 3.2 LiFePO4 batteries in series 2.
Support the mid-line structure, support positive and negative
battery charge and discharge respectively 3. Shunt circuit breakers
support B +, B- at the same time closing and disconnecting 4.
charge and discharge with the same mouth design 5. CBMS + BMU
two-tier architecture 6. Intelligent balanced management,
supporting intra-module balance and inter-module balance 7. SOC
estimation error ≤5% 8. LCD display real-time display battery and
BMS status (optional, 3.5-inch inside,7.0-inch outside) 9. Support
and UPS protocol communication, RS485 and CAN2.0 communication,
support for multi-channel dry contact communication 10. Support PC
to view the battery data and BMS status of each device through
Ethernet 11. Support machine room management system or other higher
level management equipment protocol communication 12.Support for
distributed thermal management (48v battery module independent
cooling) or centralized thermal management (the entire cabinet
unified cooling) 13.Support UPS DC start function (option)

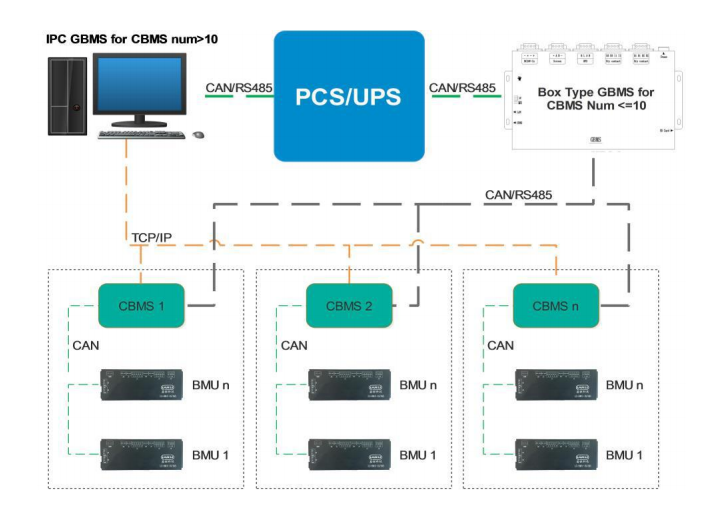

BMS System Structure
