To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-125A336V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20000sets / Month |
| Delivery Time : | 10-15 work days |
GCE Battery Management System BMS
150S 480V 125ah Battery Management System LifePO4 Smart BMS For LFP Lithium Battery Pack Bess Ups Solar Storage System
BMS Configuration
150S 480V 125A High Voltage BMS * 1set
15S BMU *10sets
15S wire harness * 10sets
(15S48V battery module, 10 modules in series for 150S 480V 125A system)
BMS Application
GCE HV BMS for solar power system
GCE HV BMS for UPS battery bank
GCE HV BMS for photovoltaic farm
GCE HV BMS for data center
GCE HV BMS for wind energy storage system
GCE HV BMS for off grid energy storage system
GCE HV BMS for industrial and commercial energy storage
Specification
Product Name | Battery Management System (BMS) |
Model no. | RBMS07S2-3-125A480V |
protecting method | MCCB+Contactor |
Rated Current range | -125A~125A |
Voltage Range | 48V-384V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 17kg |

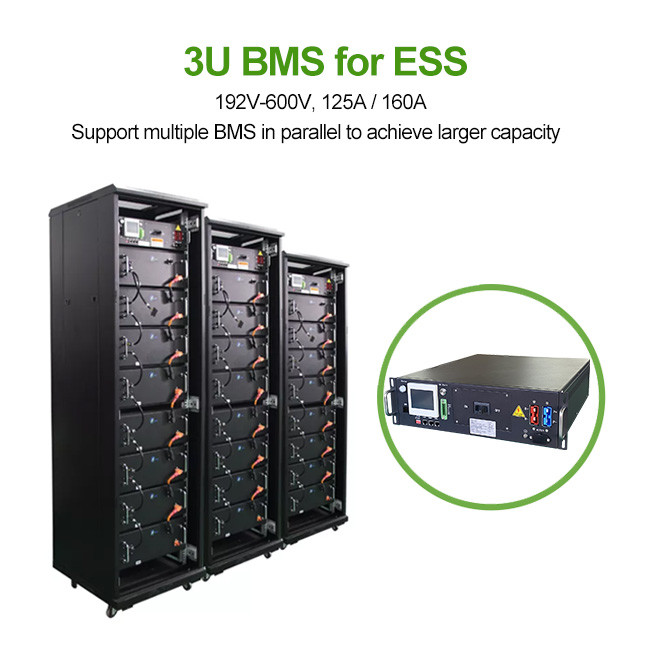

Products Display
Factory Details
- Hunan GCE technology Co., Ltd. was founded in 2012, specializing in R&D and manufacture high voltage battery
management system
(BMS) for KWh to MWh power system.
- Products are exported to more than 150 countries.
- 30s to 75s BMS adopts master-slave integrated design and relay
solution to meet the lithium battery demand of multiple strings of
small capacity
batteries. Greatly reduce the use cost of users.
- 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single
lithium batteries within 1000V.
