To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-125A480V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20000sets / Month |
| Delivery Time : | 10-15 work days |
GCE Battery Management System
150S 480V 125ah Battery Management System GCE BMS LifePO4 Smart BMS
For LFP Lithium Battery Pack Bess Ups Solar Storage System
BMS Configuration

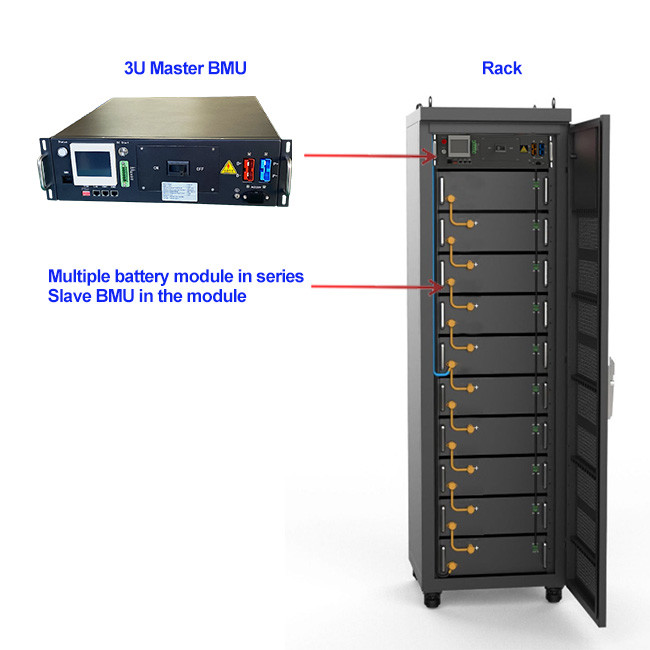

| 150S 480V 125A BMS * 1set 15S BMU *10sets 15S wire harness * 10sets 15S48V battery module, 10 modules in series for 150S 480V 125A rack BMS system |
 |
*Support multiple Rack BMS in parallel. |
BMU. 12S-24S 8pcs tempreture sensors. Consumption less 20mA, CAN2.0 communication Wire Harness 18 Pin+20Pin wire. Length: 600mm,900mm,1200mm Communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance. |
Specifications
Product Name | Battery Management System (Relay BMS) |
Model no. | RBMS07S2-3-125A480V |
protecting method | MCCB+Contactor |
Rated Current | 125A |
Voltage Range | 397V-555V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Tap center | Not support |
Net weight | 17kg |
Detail Picture
Our Company
- Hunan GCE technology Co., Ltd. was founded in 2012, specializing in R&D and manufacture high voltage battery
management system
(BMS) for KWh to MWh power system.
- Products are exported to more than 150 countries.
- 30s to 75s BMS adopts master-slave integrated design and relay
solution to meet the lithium battery demand of multiple strings of
small capacity
batteries. Greatly reduce the use cost of users.
- 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single
lithium batteries within 1000V.
