To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S20-400A576V |
| Certification : | CE |
| Price : | Negotiable with jeffreyth@hngce.com |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 20-25days |
GCE 576V 400A single cabinet discharge current 5U iron case high voltage BMS for energy storage system solar power UPS
GCE 5U high voltage BMS can be installed in 96V to 1000V battery systems, and for single rack/ cabinet discharge current can go up to 300A/400A/500A three stage with different modles.
customers usually use high discharge rate battery systems to UPS, Charging station energy storage,Electric energy peak shaving and valley filling, electric energy frequency modulation etc.
GCE high voltage BMS features:
| ※ Advanced battery management system---The highly integrated battery management system can realize seamless monitoring. |
| ※ Perfect self-checking and running status checking function, with HMI display screen, system running information is clear at a glance. |
| ※ Complete and reliable system control and protection strategies, comprehensively guarantee battery safety, and escort to extend the life of battery packs. |
| ※ Modular design, configurable and expandable---multiple energy storage units can be flexibly combined and expanded into a larger energy storage system. |
| ※ Abundant communication interfaces---multiple RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS and monitoring servers on the market. |
| ※ The communication interface protocol is flexible---the factory comes with the company's communication protocol, and it can also be adapted to the PCS of different manufacturers according to customer needs. |
| ※ The built-in large-capacity memory chip can store a large amount of key operating data. |
| ※ Automatic circulation control and automatic parallel/offline control can easily realize the parallel connection of battery packs. |
GCE high voltage BMS technical parameters:
| RBMS | 5U-300A-500A-S | 5U-300A-500A-D |
| protecting method | MCCB+Contactor | MCCB+Contactor |
| Rated Current range | -500A~500A | -500A~500A |
| Voltage range | 384V-1000V | 384V-1000V |
| Current sampling accuracy | 1.0%FSR | 1.0%FSR |
| Communication interface with PCS | RS485/CAN | RS485/CAN |
| Communication interface with BMU | CAN | CAN |
| Communication interface with GBMS | RS485/CAN | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet | Ethernet |
| Support IAP upgrade | Yes | Yes |
| Support HMI display and parameter settings | No(OptionalPlug in) | No(OptionalPlug in) |
| Insulation detection | Yes(Optional) | none |
| High voltage power module | Support DC start (optional) | Support DC start (optional) |
| Dry contact output (normally open) | None | None |
| Maximum qty of BMUs | 20 | 20 |
| Power | 24VDC(18~28V) | 24VDC(18~28V) |
| Power consumption | ≤20W | ≤20W |
| Size (W*H*D)mm | 5U | 5U |
| (440*223*500) | (440*223*550) | |
| Way out | Front | Front |
| Tap center | support(optional) | support(optional) |
| net weight | 38kg | 42kg |

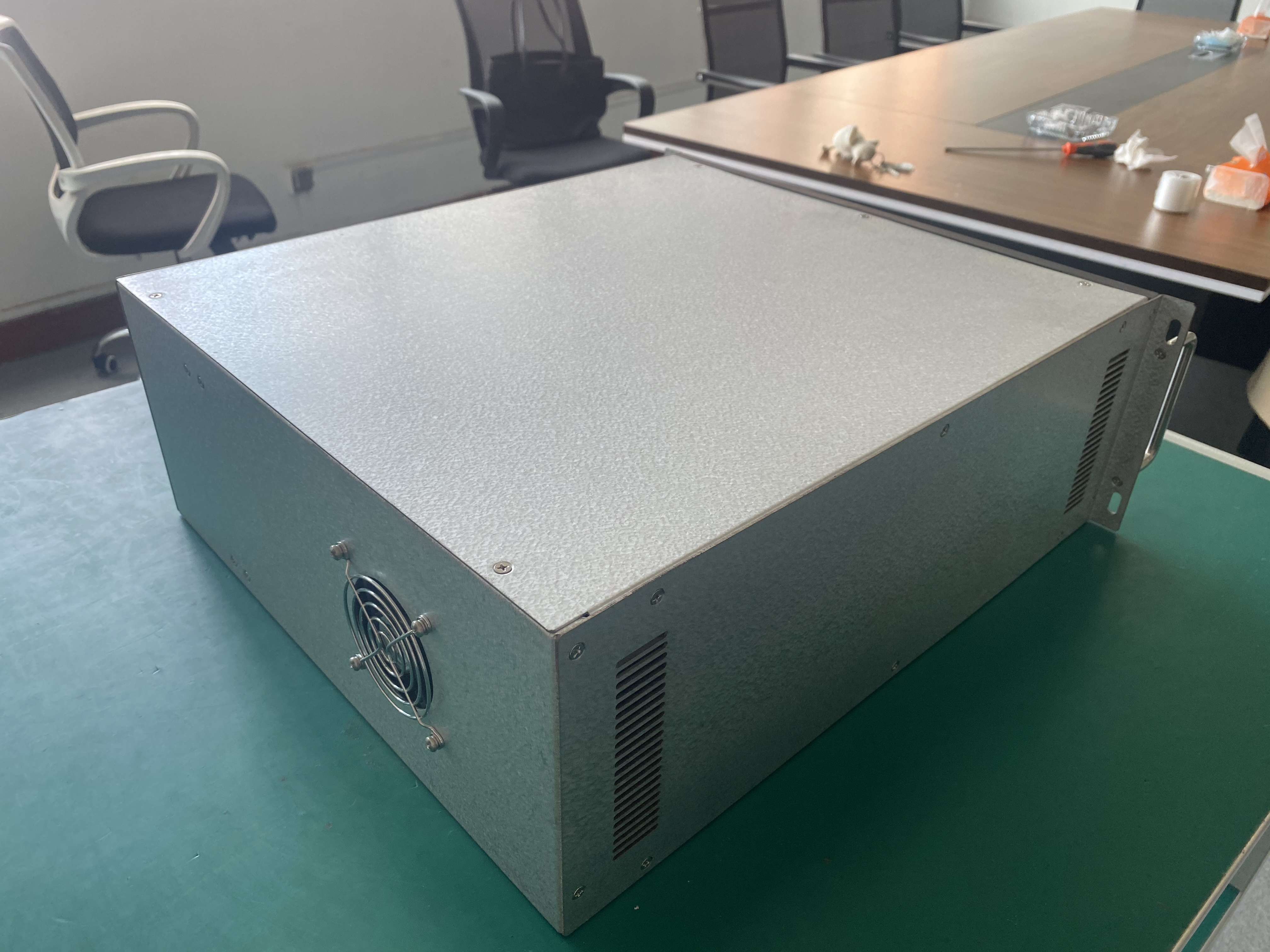

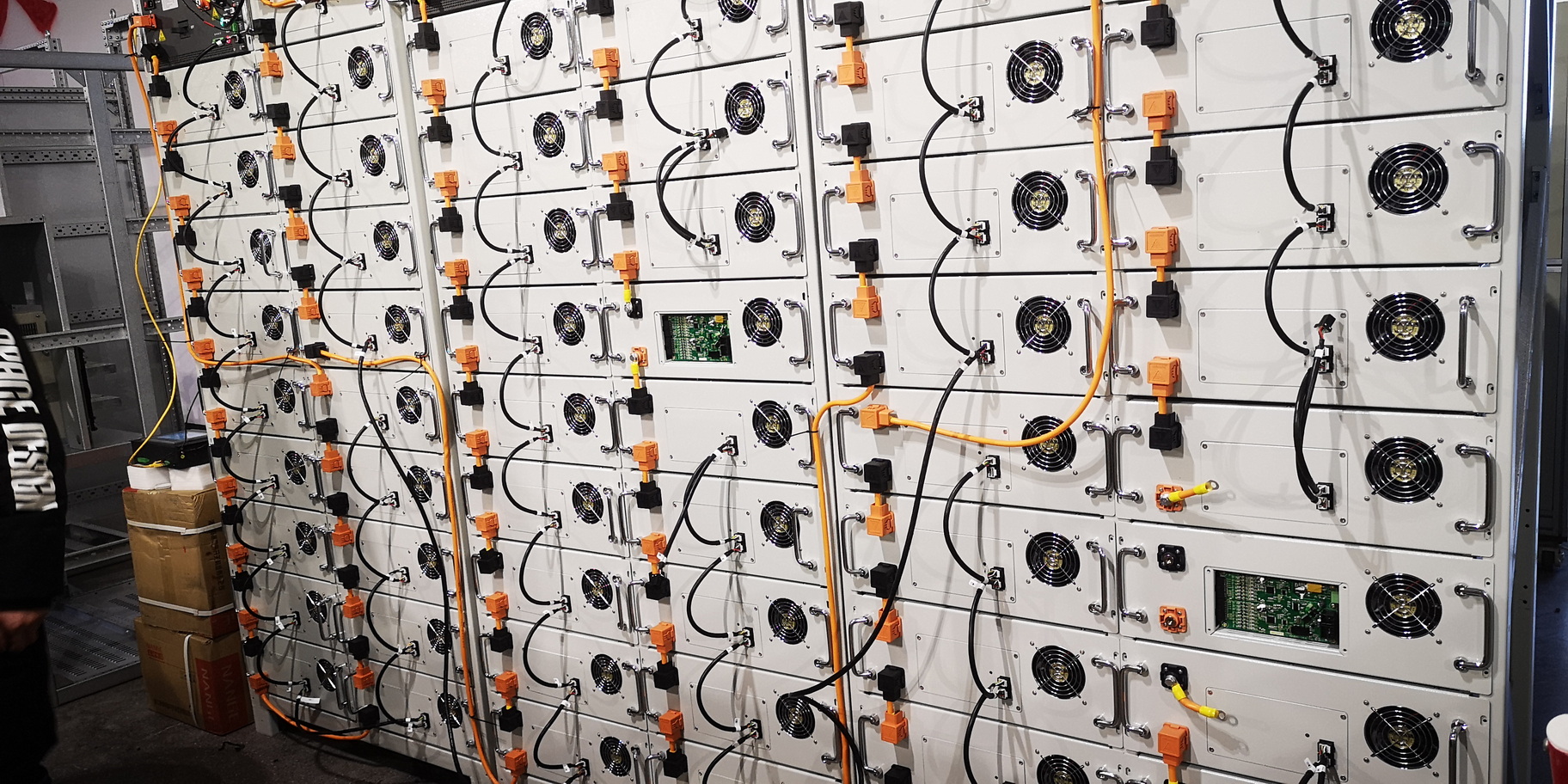

GCE high voltage BMS pictures:
|
