GCE Lifepo4 Battery 105S 336V 250A Smart BMS For Solar System For UPS EV ESS Solar Energy Storage System

Overall Solution High Voltage Battery Management System

BMS configuration:

105S 336V 250A high voltage BMS(HV BMS) * 1 set
15S BMU * 7 pcs
15S wire harness *7 pcs
(15S48V battery module, 7 modules in series for 105S 336V 250A system)

336V250Amp

Communication protocol:
Rs485, CAN, LAN

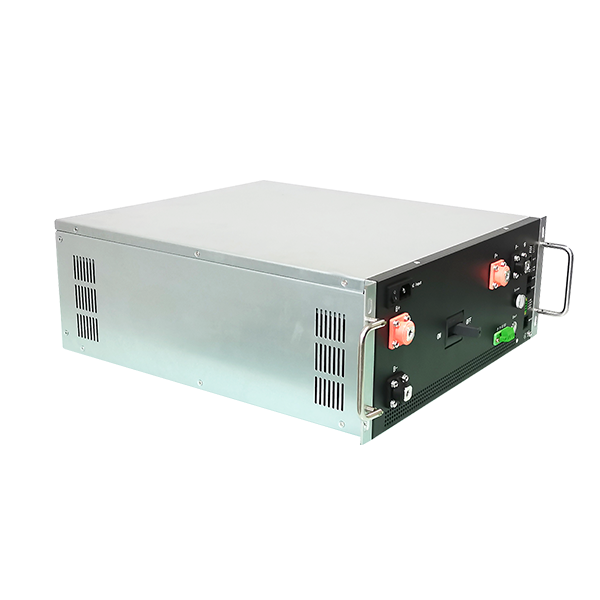

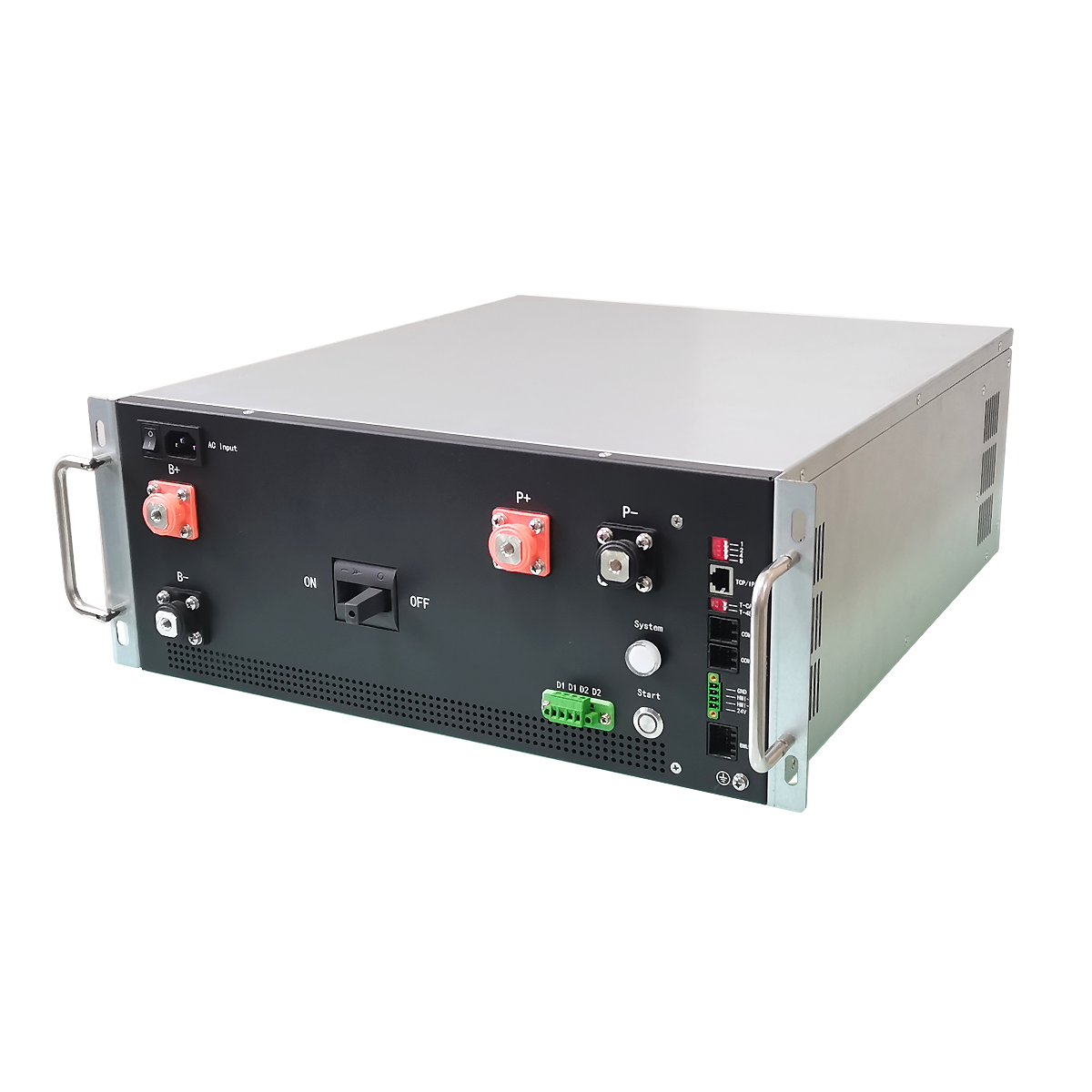

* 4U standard 19inch case * Efficient, stable and reliable * size:W440*H178*D500mm

--Specification--

Our Advantages:

Ideal for energy storage applications where high performance and high reliability are key to successful

integration:

• Commercial bus & transportation
• Medium and heavy duty trucks
• ISO and sub-ISO marine
• High performance / high voltage apps
• Industrial equipment
• Light rail

--BMS System Structure--

GCE high voltage BMS(HV BMS) is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
