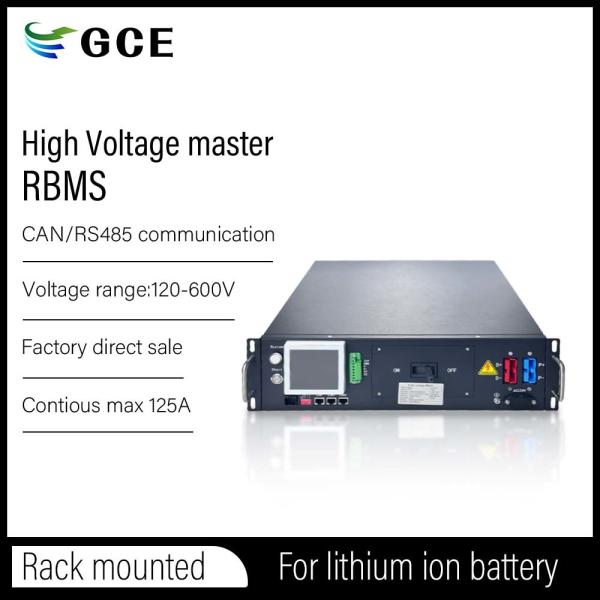

    Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07S23-125A576V
    Certification : CE UL
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000+pcs+1 month
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    Battery Management Smart Bms System 180S 576V 125A 3U For PV Power Plant Storage

    180S 576V 125A 3U smart BMS for high voltage bms with relay contactor lifepo4 bms slave master for PV power plant storage


    Specification
    Product Name
    BMS
    Model no.
    RBMS07S2-3-125A576V
    protecting method
    MCCB+Contactor
    Rated Current range
    -125A~125A
    Voltage Range
    0V-576V
    Current Sampling Accuracy
    1.0%FSR
    Communication interface with PCS
    RS485/CAN
    Communication interface with BMU
    CAN
    Communication interface with RBMS
    RS485/CAN
    Communication with monitoring software/EMS
    Ethernet
    Support IAP upgrade
    Yes
    Support HMI display and parameter
    Yes(Optional)
    Insulation detection
    Yes(Optional)
    High voltage power module
    Support DC start (optional)
    Dry contact output (normally open)
    Up to 3
    Maximum qty of BMUs
    13
    Power
    24VDC(18~28V)
    Power consumption
    ≤20W
    Size(W*H*D)mm
    3U (440*133*500))
    Way out
    Back and front
    Mid-line
    Not support
    Tap center
    Not support
    Net weight
    17kg

    BMS System Structure
