GCE High Voltage Overall Solution BMS 192V 50A Relay BMS with 15S BMU for BESS UPS

Sistemas De Energia Solar Energy System Solar BESS Large scale ESS Container BESS Micro Grid ESS Home ESS Solar Carport ESS

HV Overall Solution BMS Configuration:

A central control model#: SBMS07 will be required for multiple racks parallel connection applications, equipped

with a 7" display, the main control enables the communications among different racks. Customers can also make

some parameters setting and monitor the battery module status easily.

High Voltage Master BMS and Accessories:

Product Name	BMS(Battery Management System)

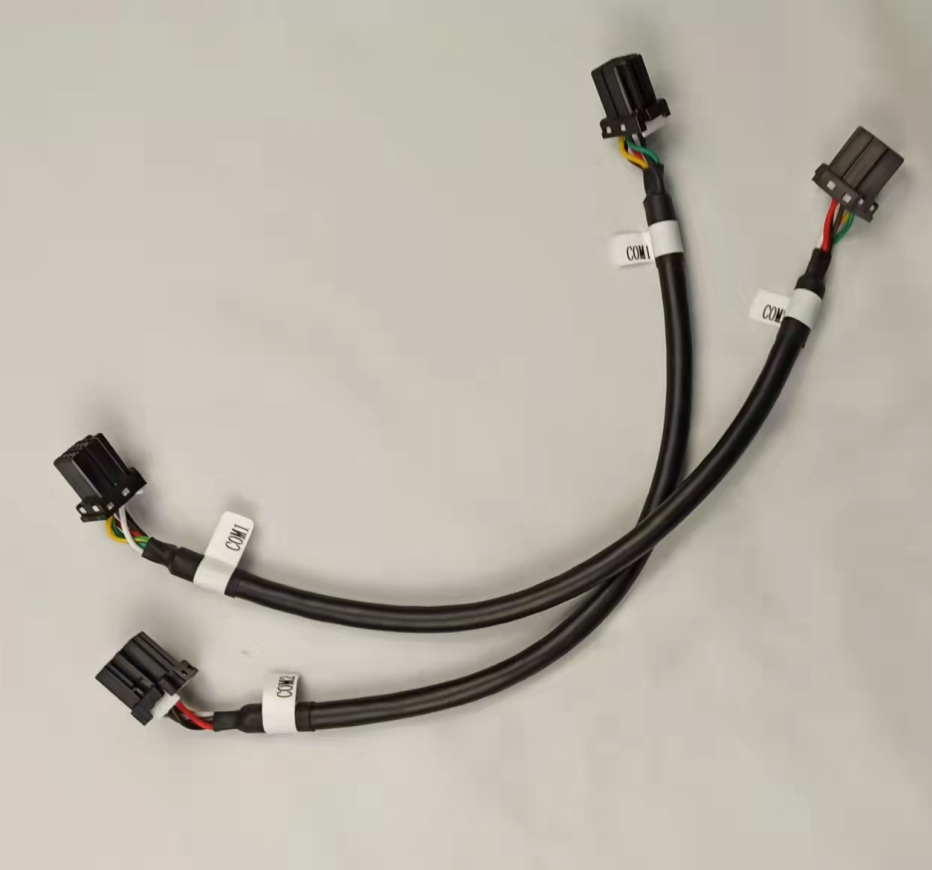

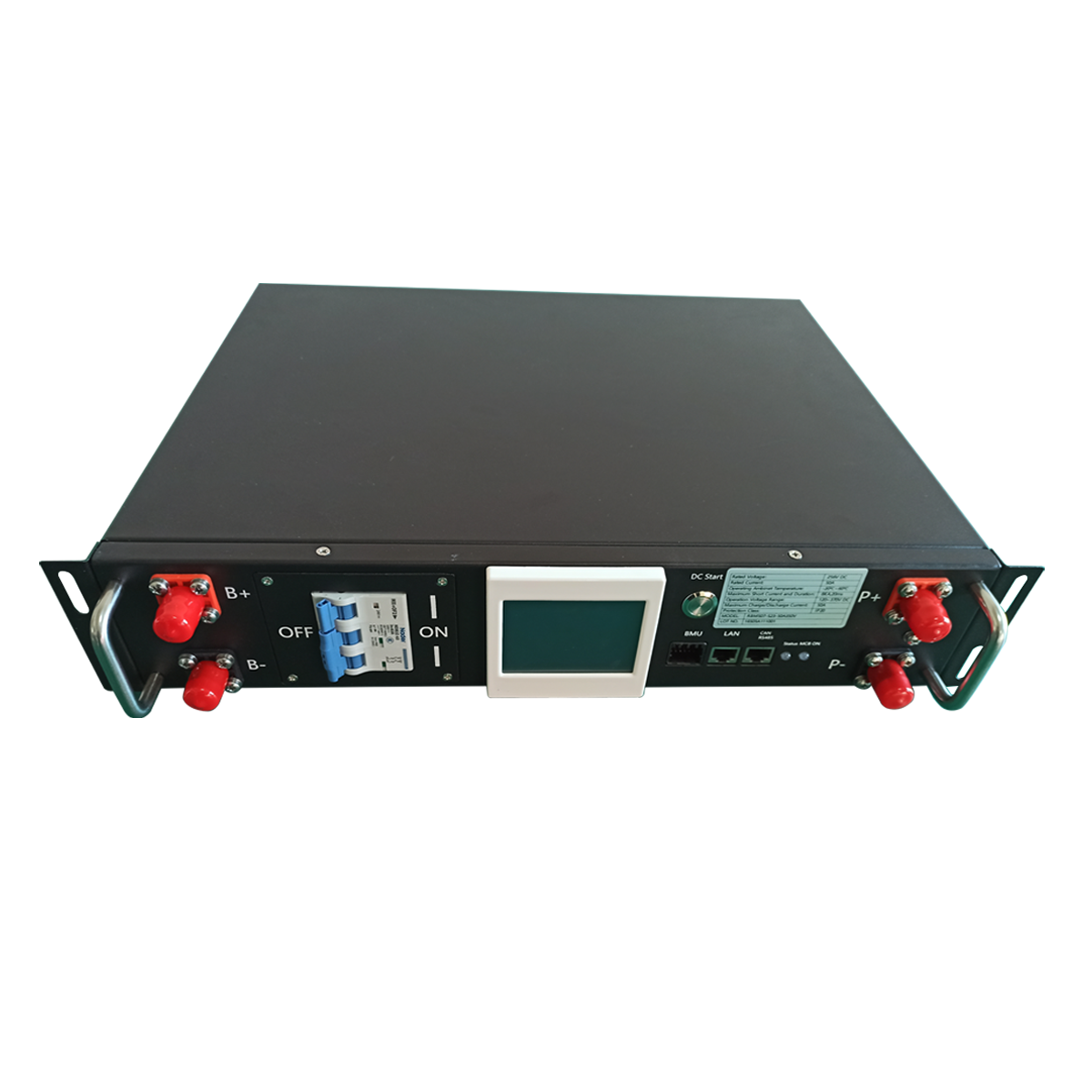

Model no.:RBMS07-S23-50A192V 1set Master BMS, Model#: RBMS07-S23-50A192V 4sets of 15S Slave BMU Model#: BMU07-15S8T48F 4sets of 15S Wire Harness, including voltage&temperature acquisition wires, BMU communication wires, Fan power wires.
protecting method	MCCB+Contactor
Rated Current range	-250A~250A(Max. 500A)
Voltage Range	96V-1000V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plugin)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤25W
Size(W*H*D)mm	2U (440mm*88mm*350mm)
Way out	Front
Tap center	Support(Optional)
Net weight	23 kg

Slave BMUs and Wire harness	12S-24S BMU(Slave) 8pcs of temperature sensors per BMU, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V, 12V power supply, consumption less than 20mA, CAN2.0 B communication	Wire harness- Signal acquisition wire 18 P+20P, 20P+22P, standard voltage&temp sensor wire: 600/900/1200mm. Fan Power wire: 600mm	Wire harness- communication wire Standard Length: 180/300mm, connecting from the master BMS to each BMU with a cascade connection, the last port is for terminal resistance

HV BMS technical parameters:

HV BMS SYSTEM STRUCTURE:

HV BMS Applications:

FAQs about GCE BMS:

• Q: Are you a manufacturer or simply a trading company?
  A: We are a manufacturer, and we sincerely welcome you to visit our factory.
• Q: Can I get some samples?
  A: Yes, a sample order is available for quality checking and market testing.
• Q: What kind of cells are applicable to this Battery Management System?
  A: LFP, NMC, LTO
• Q. How about the delivery time?
  A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
• Q. What are your terms of payment?
  A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
• Q: What are your warranty terms?
  A: We offer a 3-year warranty.
• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
• Q: Is your BMS easy and convenient to install&test?
  A: This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
• Q: What benefits do customers get?
  A: Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
