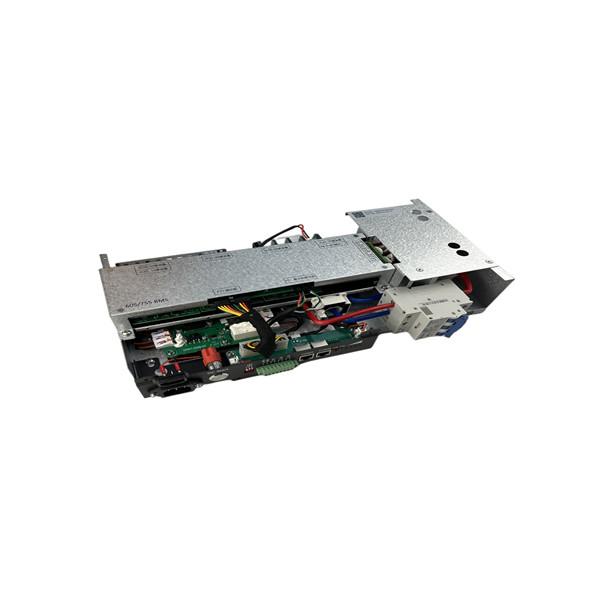

BMS 30S 96V 100A lifepo4 NMC LTO battery developed for large-scale high-voltage battery energy storage systems

Model No.: RBMS07S30S100A

System Features

Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
15 probes for every 15 strings, for a total of 15
current collection uses Hall sensor, safe and reliable, no heat;
SOC estimation error ≤ 5%;
3-digit address dialing to set the BMS address;
3-channel relay dry contact output;
LED signal indicates working status (4-bit SOC indication, 1-bit operation indication, 1-bit fault indication)
3-digit address dialing to set the BMU address;
3-channel relay dry contact output;
4-channel contactor expansion and auxiliary contact detection;
Provide PC software to facilitate the customer to debug the battery system, or modify the
system parameters through the host computer;
Support temperature module expansion;
Support Bluetooth, GPRS, external serial port display expansion (extended function single machine three choice one);
Support for parallel use (maximum 7 units)
The default system overcurrent capability is 100A

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
