To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-250A480V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |

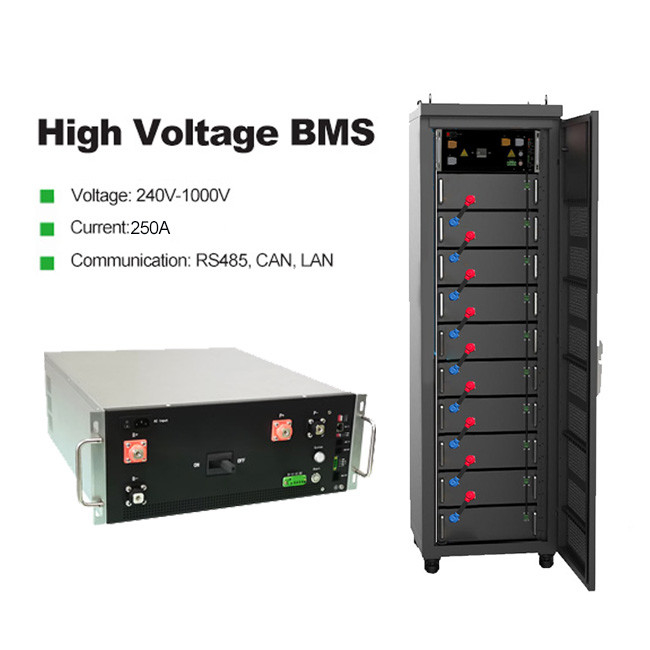

150S BMS for UPS ESS Solar Energy
GCE smart bms 150S lifepo4 BMS 250A 480V UPS BMS lithium ion
lifepo4 LTO bms with communication for UPS Solar PV ESS

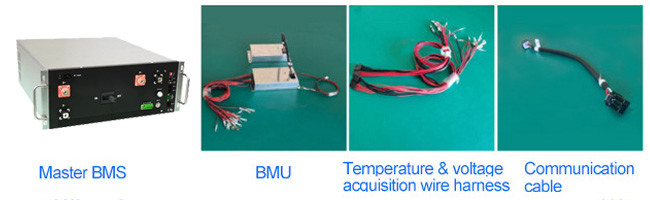

BMS Configuration
150S 480V 250A high voltage BMS(HV BMS) * 1set
15S BMU * 10sets
15S wire harness *6sets
(15S48V battery module,10 modules in series for 150S 384V 250A
system)
Application
Smart BMS for ESS (Energy Storage System)
Smart BMS for Off-grid energy storage
Smart BMS for Data Center
Smart BMS for photovoltaic farm
Smart BMS for off grid energy storage system
high voltage BMS(HV BMS) for industrial and commercial energy
storage
Smart BMS for LFP UPS power supply
Specification
Product Name | 150S 480V 250A high voltage BMS(HV BMS) |
Model no. | RBMS07S2-3-250A480V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 28kg |

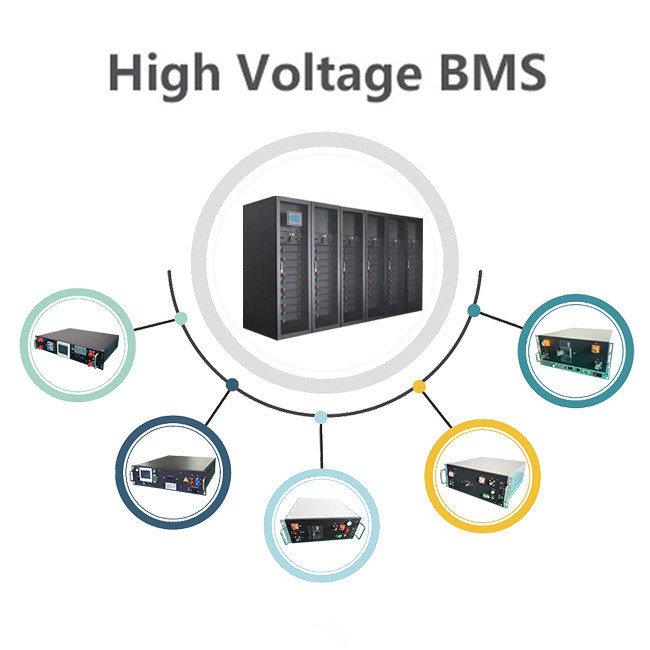

Products Display
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, and we have 10 years of experience in
high voltage manufacturer.
Q: What is your MOQ?
A: 1unit sample is available for quality checking and market
testing.
Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20
days depending on requirement and quantity.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery
information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.
Integrated BMS: 96V-240V 50A / 100A
2U BMS: 192V-500V, 50A / 100A
3U BMS:192V-600V, 125A / 160A
4U BMS: 192V-1000V, 250A
5U BMS: 192V-1000V, 400A /500A
