    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07S2-3-125A432V
    Certification : CE
    Price : Please contact: ellen@hngce.com
    Payment Terms : T/T
    Supply Ability : 5000sets / Month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

    135S 432V High Voltage Battery Management System (BMS)


    Battery Management System 135S 432V 125A LifePO4 BMS with 15S Slave BMU For high voltage energy storage system


    BMS Configuration


    135S 432V 125A high voltage BMS(HV BMS) * 1set
    15S BMU * 9sets
    15S wire harness *9sets
    (15S48V battery module, 9 modules in series for 135S 432V 125A system)

    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN135S 432V BMS Solution High Voltage Battery Management System RS485/CAN135S 432V BMS Solution High Voltage Battery Management System RS485/CAN135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

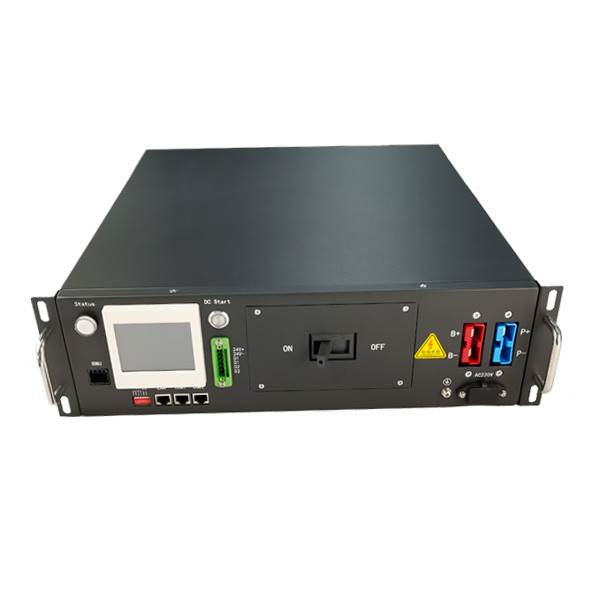

    3U Master BMSSlave BMUWire HarnessCommunication Cable
    192V-600V, 125A /160A BMS

    12S-24S BMU.

    8pcs tempreture sensors.

    Consumption less 20mA, CAN2.0 communication

    18 Pin+20Pin wire.

    Length: 600mm,900mm,1200mm
    Fan wire: 600mm

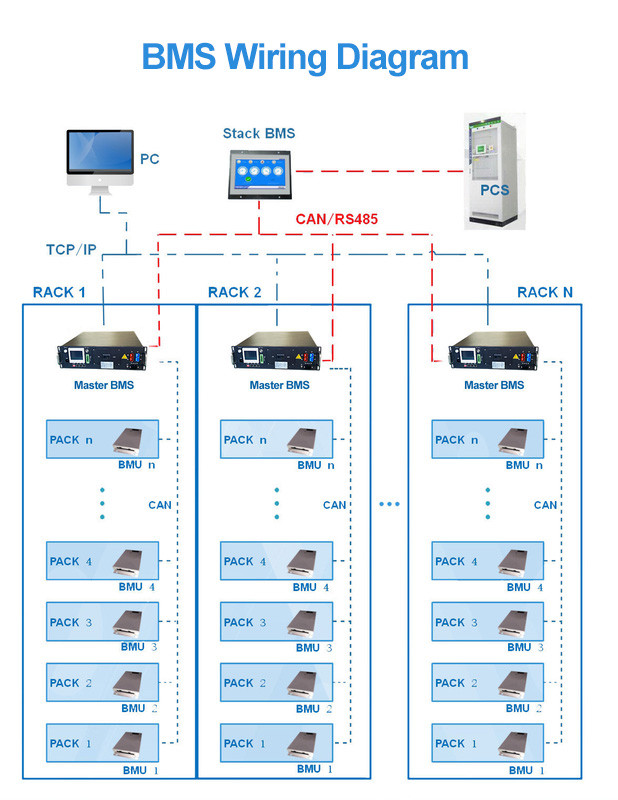

    Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance.



    Application


    GCE BMS for Off-grid energy storage

    GCE BMS for Battery Energy Storage System(BESS)
    GCE BMS for Data Center
    GCE BMS for Grid solar energy power sytem

    GCE BMS for LifePO4 pack

    GCE BMS UPS power supply


    Specification


    Product Name
    BMS
    Model no.
    RBMS07S2-3-125A432V
    protecting method
    MCCB+Contactor
    Rated Current
    125A
    Voltage
    432V
    Current Sampling Accuracy
    1.0%FSR
    Communication interface with PCS
    RS485/CAN
    Communication interface with BMU
    CAN
    Communication interface with SBMS
    RS485/CAN
    Communication with monitoring software/EMS
    Ethernet
    Support IAP upgrade
    Yes
    Support HMI display and parameter
    Yes(Optional)
    Insulation detection
    Yes(Optional)
    High voltage power module
    Support DC start (optional)
    Dry contact output (normally open)
    Up to 3
    Power
    24VDC(18~28V)
    Power consumption
    ≤20W
    Size(W*H*D)mm
    3U (440*133*500)
    Net weight
    21kg

    Products Display



    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN



















    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN

    135S 432V BMS Solution High Voltage Battery Management System RS485/CAN


    Our Company


    Hunan GCE technology Co., Ltd. We have 10 years of experiece in high voltage battery management system(BMS)R&D and manufacture.


    30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users;


    60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V. By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
