GCE 256V 250A Lifepo4 BMS lithium battery management system BMS With

15S BMU For Large-scale LFP NCM LTO BESS UPS Solar ESS Micro Grid ESS

Home ESS Container ESS Solar Carport ESS

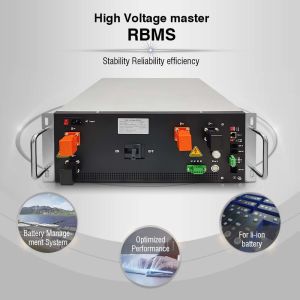

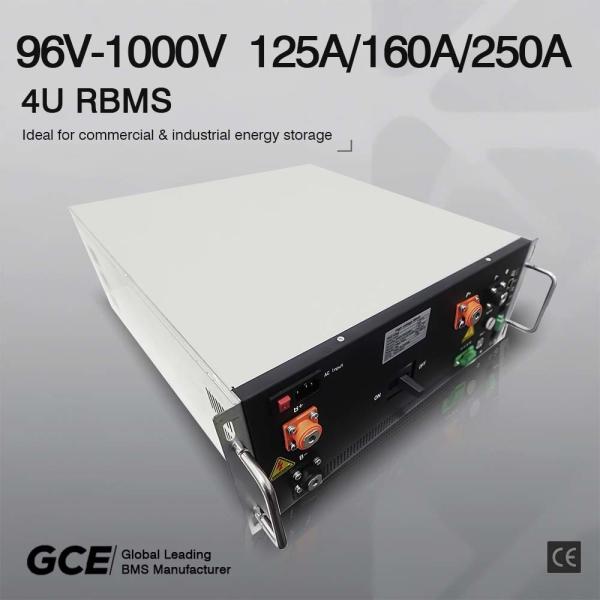

High Voltage Master BMS: RMBS07-S20-250A624V

One complete set of HV 80S256V 250A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S20-250A256V

4sets of 20S Slave BMU Model#: BMU07-20S8T48F

4sets of 20S Wire Harness:

including voltage&temperature sensoring wires,

BMU communication wires,

Fan power wire.

1.Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.

2. perfect self-test and operational status detection, with HMI display, system operation information at a glance.

3. perfect and reliable system control and protection strategies to fully protect the battery safety, and extend the life of the

battery escort.

4. Modular design, configurable, scalable --- flexible combination of multiple energy storage units can be expanded to a larger

energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.

12S-24S BMU(Slave) 12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication	Wire harness- Signal acquisition wire 18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm	Wire harness- communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Actual picture of BMU:

Specification:

Documents Download:

Linkage for downloading specifications for Master BMS and Slave BMU:

GCE_RBMS specification--EN--V1.0.pdf

GCE 17-24S BMU-specification-UL-V1.0.pdf

Linkage for downloading of BMS demand information collection form:

high voltage BMS(HV BMS) info collection form EN2021-04.do...

For more information about our BMS, please contact me.

Applications:

FQAs:

• Q: Are you a manufacturer or simply a trading company?
  A: We are a manufacturer, and we sincerely welcome you to visit our factory.
• Q: Can I get some samples?
  A: Yes, a sample order is available for quality checking and market testing.
• Q: What kind of cells are applicable to this Battery Management System?
  A: LFP, NMC, LTO
• Q. How about the delivery time?
  A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
• Q. What are your terms of payment?
  A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
• Q: What are your warranty terms?
  A: We offer a 3-year warranty.
• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.

Contact Information:

Bruce Liu
Marketing Director
bruceliu@hngce.com
0086-0136-2009-7954

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
