336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System

Ask Lasest Price
Brand Name :	GCE
Model Number :	RBMS07S23-50A336V
Certification :	CE UL
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10000+pcs+1 month
Delivery Time :	8-15 days

Add to Cart

Product Details
Company Profile

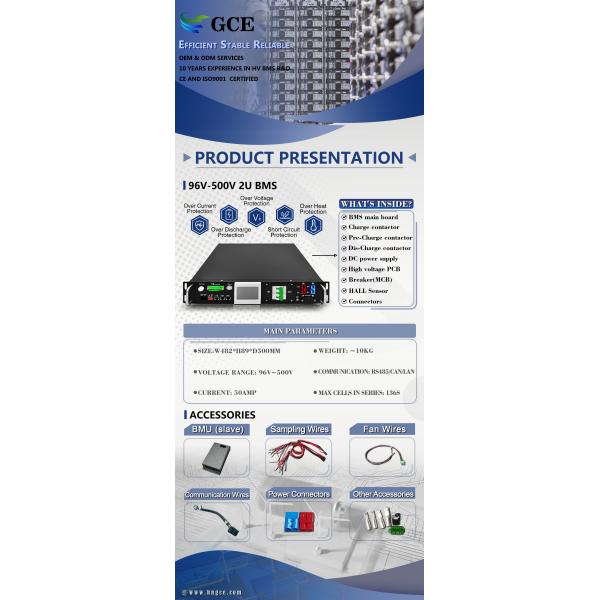

336V 50A BMS Solution , BESS UPS Lithium Ion Battery Management System

336V 50A Lifepo4 BMS lithium battery management system BMS for Lithium-ion Battery Pack BESS UPS home solar application

- 336V50A BMS

Communication protocol:
Rs485, CAN, LAN, dry contact
* 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

Accessories

 12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
 supply,consumption less 20mA, CAN2.0 B communication

 Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
 Fan wire: 600mm

 Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories

 12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
 supply,consumption less 20mA, CAN2.0 B communication

 Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
 Fan wire: 600mm

 Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Accessories

 12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
 supply,consumption less 20mA, CAN2.0 B communication

 Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
 Fan wire: 600mm

 Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

 Specification

  	 			Product Name

 			BMS

 			Model no.

 			RBMS07S2-3-63A192V

 			protecting method

 			MCCB+Contactor

 			Rated Current range

 			-50A~50A

 			Voltage Range

 			120V-500V

 			Current Sampling Accuracy

 			1.0%FSR

 			Communication interface with BMU

 			RS485/CAN

 			Communication interface with BMU

 			CAN

 			Communication interface with BMU

 			RS485/CAN

 			Communication with monitoring software/EMS

 			Ethernet

 			Support IAP upgrade

 			Yes

 			Support HMI display and parameter

 			Yes(Optional)

 			Insulation detection

 			No

 			High voltage power module

 			Support DC start (optional)

 			Dry contact output (normally open)

 			Up to 3

 			Maximum qty of BMUs

 			5

 			Power

 			24VDC(18~28V)

 			Power consumption

 			≤20W

 			Size(W*H*D)mm

 			2U (440*88*500)

 			Way out

 			Front

 			Mid-line

 			Not support

 			Tap center

 			Not support

 			Net weight

 			14kg
