To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-400A576V |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
180S High Voltage BMS for ESS USP Solar
60S-270S 192V-1000V 400A 500A relay BMS 576V for lithium lifepo4
battery master slave bms ess solar energy systems UPS
BMS Configuration
180S 576V 400A High Voltage BMS * 1set
20S BMU * 9sets
20S wire harness *9sets
(20S48V battery module,9 modules in series for 180S 576V 400A
system)
Specification
Product Name | |
Model no. | RBMS07S2-3-400A576V |
protecting method | MCCB+Contactor |
Rated Current range | -400A~400A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 28kg |

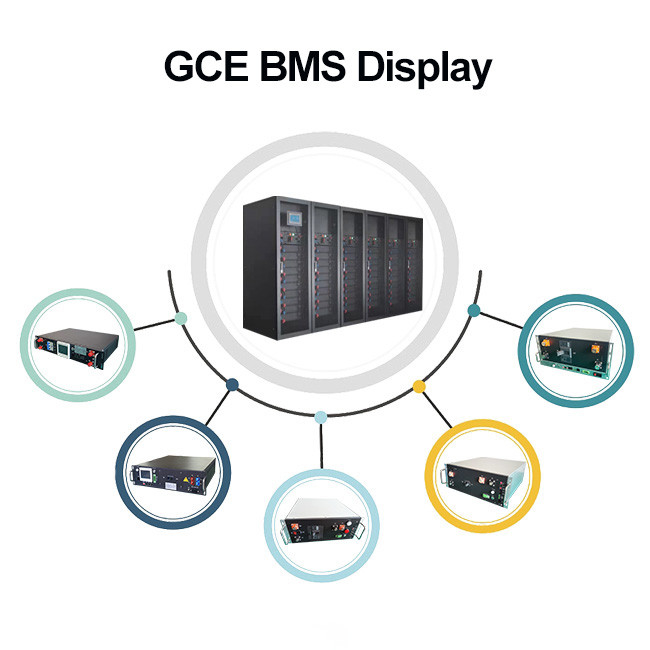

Products Display
BMU and Wire Harness
Product Feature
* Multiple commmunication interface
RS485, CAN, Ethernet, dry contact input and output interfaces,
which can establish communication with most PCS and inverter in the
market.
* With 3.5inch / 7inch HMI display
Perfect self-test and running status detection function, with HMI
display screen, the system running information is clear at a
glance.
* Intelligent Cell Balancing
Efficient passive balancing is used to maximize the usable capacity of battery packs.
* Health Monitoring
Monitors internal resistance of individual cells and the measured
capacity of the battery pack.
* Field Programmable
Parameters such as voltage ranges, current limits and many other
settings are easily field changeable.
* Current & Voltage Protection
Protects the battery pack from over-charge and over-discharge
thereby extending cycle life.
* Thermal Management
Over-temperature and under-temperature protection with fan controls
for cooling or heating.
Application
GCE High Voltage BMS for Lithium ion Battery Pack
GCE High Voltage BMS for Battery Energy Storage System(BESS)
GCE High Voltage BMS for Industrial and Commercial Battery Solution
GGCE High Voltage BMS for Photovoltaic Farm
GCE High Voltage BMS for Off-grid energy storage
GCE High Voltage BMS for Home Energy Storage
GCE High Voltage BMS for Data Centre
GCE High Voltage BMS for Micro-grid applications
GCE High Voltage BMS for Wind Energy Storage
GCE High Voltage BMS for Solar Power System
GCE High Voltage BMS for Grid Frequency Modulation Energy Storage
GCE High Voltage BMS for Portable Power Station
GCE High Voltage BMS for UPS Power Supply
GCE High Voltage BMS for LifePO4 pack
GCE High Voltage BMS for Lithium ion Batteri Pack
