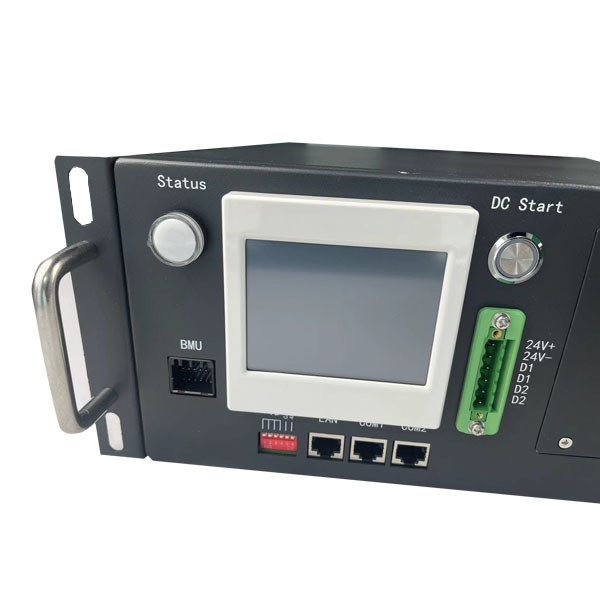

165S 528V 125A Lifepo4 Batteries Pack Solar Battery Storage BMS Systems

1. Includes:

1set Master BMS,

11sets 15S Slave BMU

11sets 15S Wire Harness

3U standard 19inch case

Efficient, stable and reliable

Size:W482*H132*D500mm

Quick Details Place of Origin: Hunan, China Brand Name: GCE Model Number: RBMS07S2-3-125A528V Battery Type: LFP, LTO, NCM Warranty: 3 years Application: BESS UPS SOLAR BATTERY EV Type: DC BMS Midline: Optional Rack configuration: standalone or Parallel Features: DC&AC dual power supply Display screen: Optional Weight: 21.0kg Current: 125A Voltage: 528V

3. Flexible communication interface protocol

The company comes with the company
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.

4. PCS has a protocol control function, the choice of circuit breaker version.

5. Capacity is large

Built-in large-capacity memory chips can store a large number

Specification

Product Name	BMS
Model no.	RBMS07S2-3-125A528V
protecting method	MCCB+Contactor
Rated Current range	-125A~125A
Voltage Range	120V-680V
Current Sampling Accuracy	1.0%FSR
Communication interface with UPS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	13
Power	24VDC(18~28V)
Power consumption	≤20W
Size(W*H*D)mm	3U(W482*H132*D500mm)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	21kg

More details

Why choose us?

1. over ten years of BMS solution experience

2. Has worked in the filed for more than eight years each of engineer

3. Sample order before mass production to ensure your order benefit.

4. Full inspection before shipment tp avoid any risky

5. Flexible payment method facilitates your money management

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
