To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-160A384V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20000sets / Month |
| Delivery Time : | 10-15 work days |

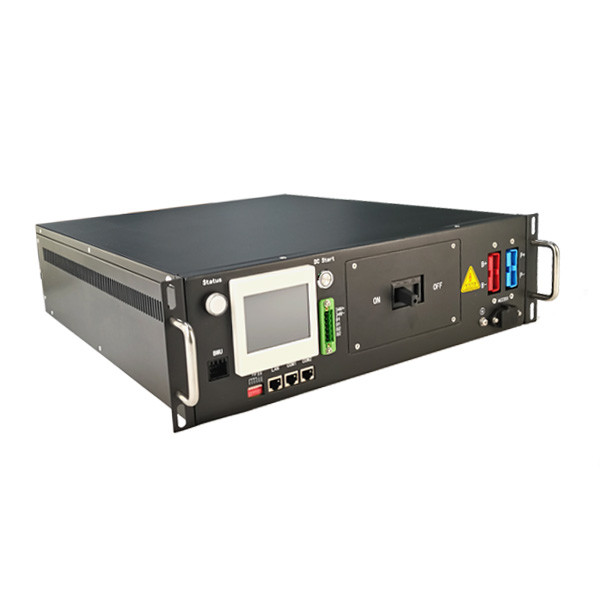

GCE Battery Management System
Bms Lifepo4 Bms 432V 125A 135S BMS For 3.2V Lithium Battery Pack With RS485 CAN BUS PROTOCOL For Inverter Ups Ess Solar

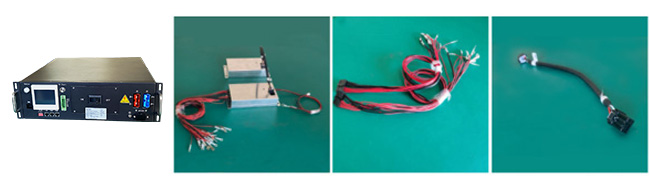

BMS Configuration
135S 432V 125A High Voltage BMS * 1set
15S BMU *9sets
15S wire harness * 8sets
(15S48V battery module, 9 modules in series for 135S 432V 120A system)
Specification
Product Name | BMS |
Model no. | RBMS07S2-3-125A432V |
protecting method | MCCB+Contactor |
Rated Current range | -125A~125A |
Voltage Range | 48V-384V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 17kg |
Products Display
Application
GCE Battery Management System for Lithium ion Battery Pack
GCE Battery Management System for Battery Energy Storage System(BESS)
GCE Battery Management System for Industrial and Commercial Battery Solution
GCE Battery Management System for Photovoltaic Farm
GCE Battery Management System for Off-grid energy storage
GCE Battery Management System for Home Energy Storage
GCE Battery Management System for Wind Energy Storage
GCE Battery Management System for Solar Power System
GCE Battery Management System for Grid Frequency Modulation Energy Storage
GCE Battery Management System for Portable Power Station
GCE Battery Management System for UPS Power Supply
GCE Battery Management System for LifePO4 pack
GCE Battery Management System for Lithium ion Batteri Pack
GCE Battery Management System for Micro-grid applications
GCE Battery Management System for Data Centre
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, and we have 10 years of experience in high voltage BMS manufacture.
Q: Can I get some samples?
A: Yes, a sample order is available for quality checking and market testing.
Q: What kind of cells are applicable to this Battery Management System?
A: LFP, NMC, LTO
Q. How about the delivery time?
A: Usually we need about 15-18 work days, which is according to the specification and the order quantity.
Q. What are your terms of payment?
A: Advanced T/T is the main payment term, and other payment terms are negotiable.
Q: What are your warranty terms?
A: We offer a 3-year warranty.
Q. Can you produce BMS with customization requirements?
A: Yes, we offer OEM & ODM services.
Q: How does your factory do regarding quality control?
A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
