GCE 165S 528V 160A BMS for Off Grid Home Solar LFP Power solution battery Storage System UPS lithium ion batteries

Overall Solution High Voltage Battery Management System

Two Categories:
Integrated BMS (30S/96V~75S/240V, Max. 100A)
Separated Master BMS(60S/192V~270S/864V, Max. 500A)
Support Li-Ion batteries:LFP,NMC,LTO

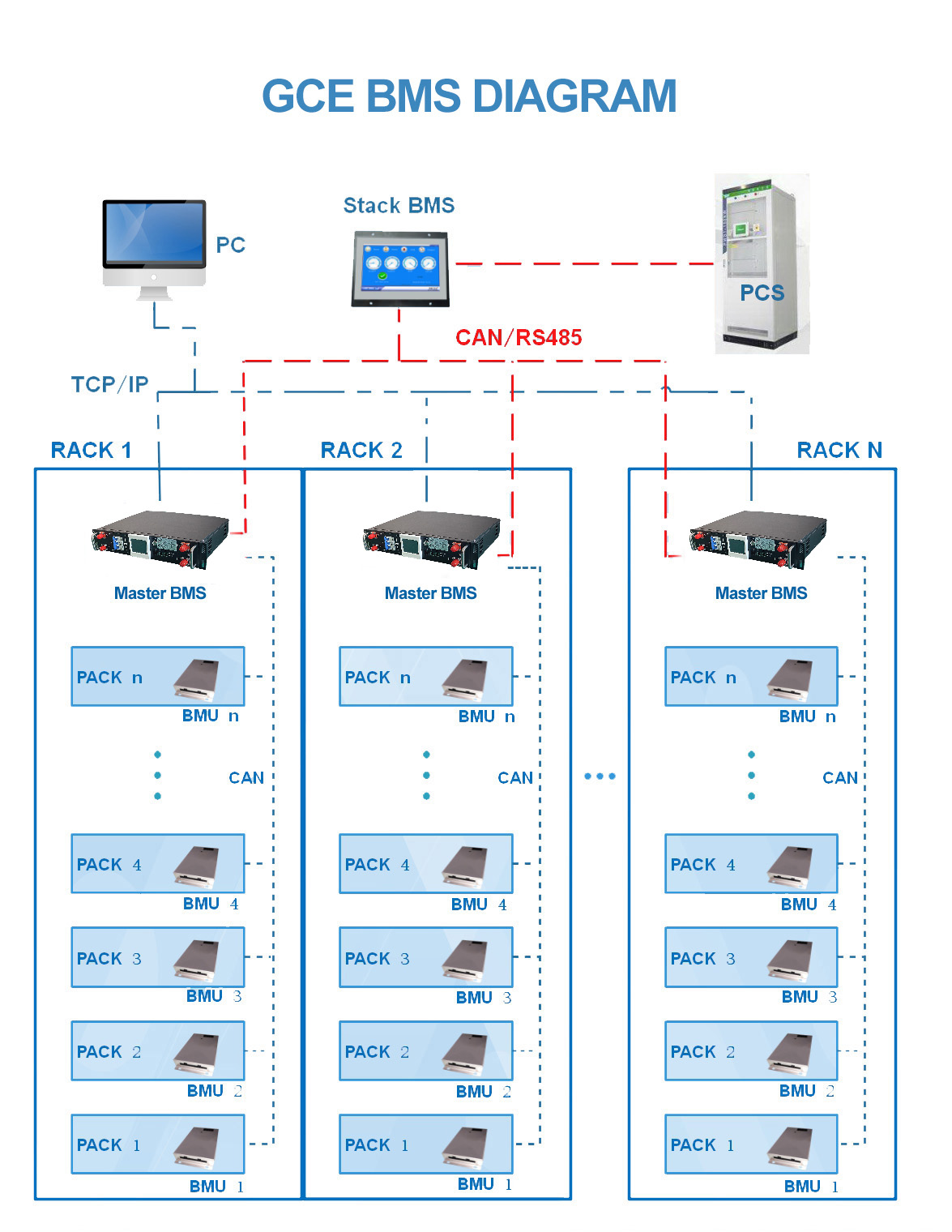

Stack BMS will be required for multiple racks parallel connection, for communications
between different racks and SBMS07.

BMS Gonfiguration:

165S 528V 160A high voltage BMS(HV BMS) * 1 set
15S BMU * 11 pcs
15S wire harness *11 pcs
(15S48V battery module, 11 modules in series for 165S 528V 160A system)

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
