To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S30S100A |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
30S BMS
30S 96V 100A BMS Master Slave all In one Relay BMS with RS485 CAN
Communication for Off Grid Home Solar Power solution
Product Features
※ 3 temperature sensor per 15 strings, 12 total for 60 strings; 15
total for 75 strings.
※ SOC estimation error ≤ 5%.
※ 3 relay dry contact output.
※ PC software will be provided for customers to debug BMS and modify
system parameters.
※ Support 7 BMS in parallel.
※ HMI display: Optional (3.5-inch screen)
※ Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
※ BMS integrated machine components are composed of BMS main control
board, BMU sampling board, high voltage board, switching power
supply, Hall sensor, DC contactor, micro switch, power terminal,
structural box and wiring harness, etc.; the characteristic is that
the main
control board Integrate with sampling board and other power devices
to keep the system as a secondary architecture.
※ It has the characteristics of compact structure, flexible installation and low cost, and is suitable for integrated installation with small capacity batteries.
※ The BMS integrated machine component is mainly suitable for the
charge and discharge management of lithium iron phosphate batteries
(LFP). If you need to modify the parameters with other batteries,
please contact our company for confirmation.
Specification
Product Name | Master Slave BMS (Integrated BMS) | |
Model no. | RBMS07S60S100A | |
System voltage range | 96-240 V DC | |
Startup mode | DC start (optional AC and DC starter) | |
Number of battery strings | 60S(4 x 15S) | |
Balance | Equilibrium type | Passive resistance equalization |
Balanced current | 100mA ± 10mA(Single cell 3.4V ) | |
Temperature Sampling | Numbers | 12 Battery temperature(4*3) |
Sampling accuracy | ± 2℃ | |
Voltage Sampling | Sampling accuracy | Single cell ±20mV |
SOC | ≤5% | |
Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, | |
Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit
operation indication, 4-bit SOC power indication HMI display: optional | |
Hall sensor specifications | 50A/100A | |
Maximum load of power components | Steady-state:100A transient state:150A/10S( Adjustable) | |
Alarm level | 1 Level | |
Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down | |
Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ | |

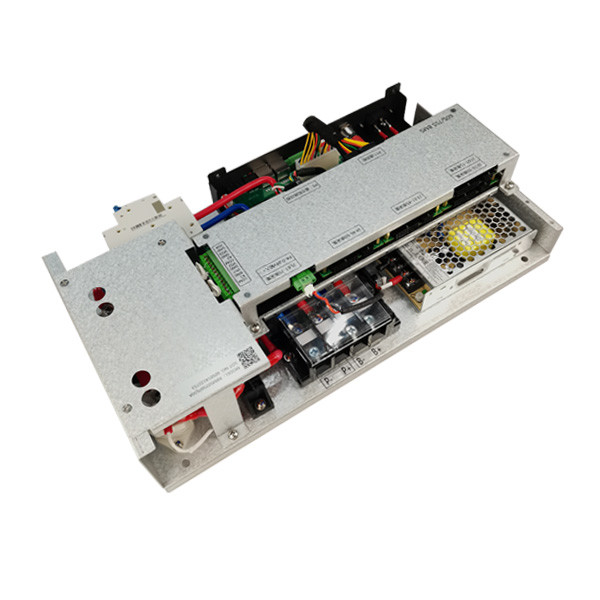

Products Display
