To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S30S50A |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
Integrated BMS for Home Energy Storage
GCE Integrated BMS 30S 60S 75S 50A 100A LifePO4 BMS 30S 102.4V 50A for high-voltage battery energy storage systems
Product Features
- Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
- 3 temperature sensor per 15 strings, 12 total for 60 strings; 15 total for 75 strings.
- Hall sensor for current collection, safe and reliable, no heat.
- SOC estimation error ≤ 5%.
- 3-digit address dialing to set the BMS address.
- 3-channel relay dry contact output.
- PC software will be provided for customers to debug BMS and modify system parameters.
- Support up to 7 BMS in parallel.
- HMI display: Optional (3.5-inch screen)
Specification
Product Name | Master Slave BMS (Integrated BMS) | |
Model no. | RBMS07S30S50A | |
System voltage range | 96-240 V DC | |
Startup mode | DC start (optional AC and DC starter) | |
Number of battery strings30 | 30S-75S | |
Balance | Equilibrium type | Passive resistance equalization |
Balanced current | 100mA ± 10mA(Single cell 3.4V ) | |
Temperature Sampling | Numbers | 12 Battery temperature(4*3) |
Sampling accuracy | ± 2℃ | |
Voltage Sampling | Sampling accuracy | Single cell ±20mV |
SOC | ≤5% | |
Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, | |
Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit
operation indication, 4-bit SOC power indication HMI display: optional | |
Hall sensor specifications | 50A/100A | |
Maximum load of power components | Steady-state:100A transient state:150A/10S( Adjustable) | |
Alarm level | 1 Level | |
Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down | |
Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ | |

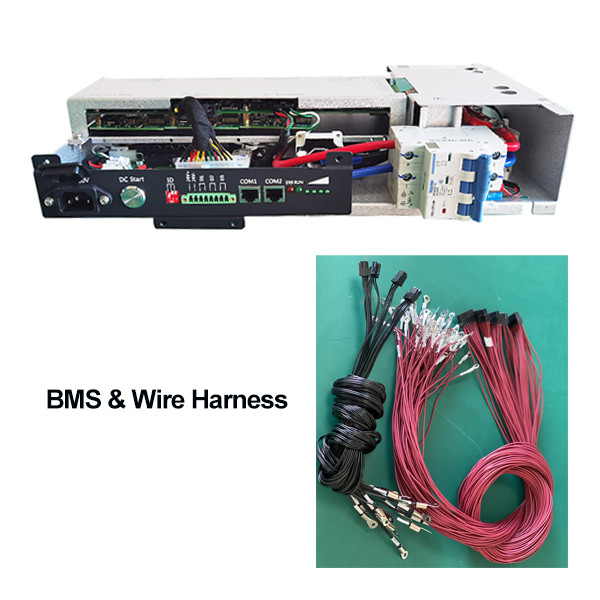

Products Display
Application
Integrated BMS for Lithium ion Battery Pack
Integrated BMS for Battery Energy Storage System(BESS)
Integrated BMS for Industrial and Commercial Battery Solution
Integrated BMS for Photovoltaic Farm
Integrated BMS for Off-grid energy storage
Integrated BMS for Home Energy Storage
Integrated BMS for Data Centre
Integrated BMS for Wind Energy Storage
Integrated BMS for Solar Power System
Integrated BMSfor Grid Frequency Modulation Energy Storage
Integrated BMS for Portable Power Station
Integrated BMS for UPS Power Supply
Integrated BMS for LifePO4 pack
Integrated BMS for Lithium ion Batteri Pack
