240S 768V 250A Lithium Battery BMS 4U Standard 19inch Case

Ask Lasest Price
Brand Name :	GCE
Model Number :	4U
Certification :	CE/RoHS/SGS/MSDS
Price :	negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076
Supply Ability :	1000 sets/month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

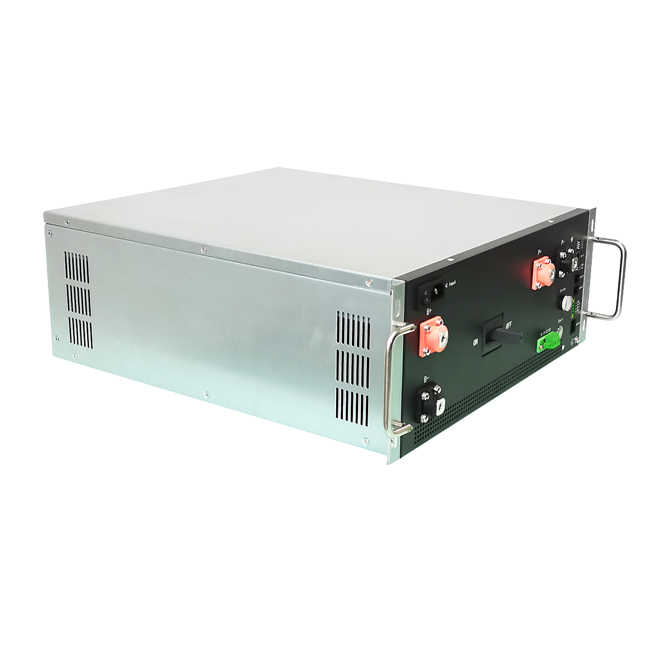

240S 768V 250A Lithium Battery BMS 4U Standard 19inch Case

240S 768V 250A Lifepo4 BMS Lifepo4 Solar BESS UPS Li Ion BMS Lithium Battery BMS

Product Feature

768VDC250A BMS

Communication protocol:
Rs485, CAN, LAN

* 4U standard 19inch case
* Efficient, stable and reliable
* size:W482*H180*D500mm

Cables Including
12S-24S BMU(Slave)
12S-24S BMU has 8pcs of temperature sensors, Fan voltage
48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture
sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

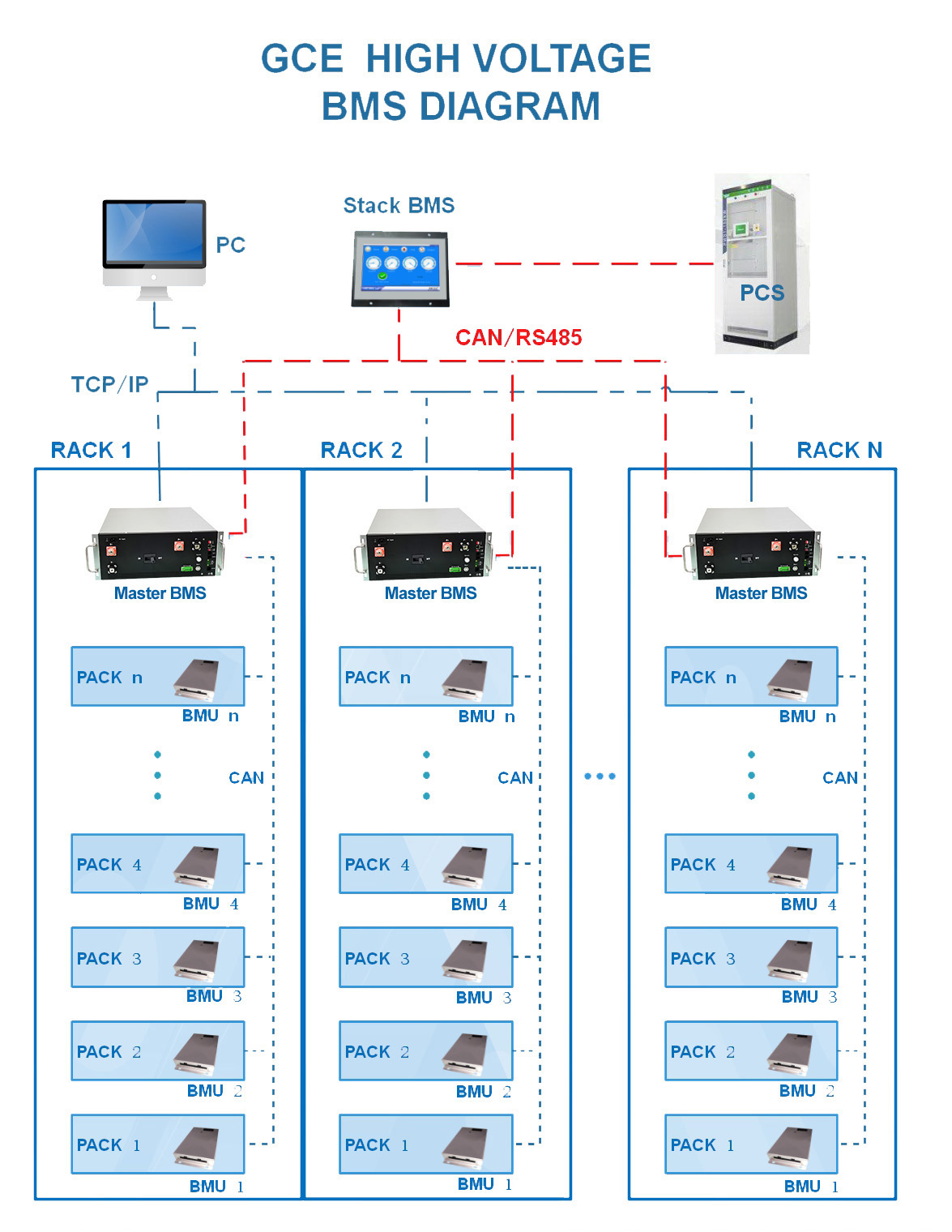

Wire harness-communication wire
Communication wire is connecting from the master BMS to each BMU
with a cascade connection, the last port is for terminal resistance
Specification
Product Name
BMS
Model no.
RBMS07-S20-250A768V
protecting method
MCCB+Contactor
Rated Current range
-250A~250A
Voltage Range
384V-1000V
Current Sampling Accuracy
1.0%FSR
Communication interface with PCS
RS485/CAN
Communication interface with BMU
CAN
Communication interface with SBMS
RS485/CAN
Communication with monitoring software/EMS
Ethernet
Support IAP upgrade
Yes
Support HMI display and parameter
No(Optional plug-in)
Insulation detection
Yes(Optional)
High voltage power module
Support DC start (optional)
Dry contact output (normally open)
No
Maximum qty of BMUs
20
Power
24VDC(18~28V)
Power consumption
≤25W(Three wire systems); ≤15W(Two wire systems)
Size(W*H*D)mm
4U (482*180*500)
Way out
Front
Tap center
Support(Optional)
Net weight
23kg


Lead Time
Quantity(Sets)1 - 56 - 2021 - 50>50
Est. Time(days)152025To be negotiated
Our comapny
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech
company specializing in the research and development of BMS and
lithium battery peripheral equipment.
We are ready to share Information, Experience, and Solutions in BMS
(Battery Management System) Solar Power Investment.
Also to help Partners Optimize Investment Capital, Develop lifepo4
battery - Renewable Power sources widely.
At the same time, anticipate and well control the risks in Battery
Project, Solar Power Project, and Electrical Power System Project
BMS Management.



​
