To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S75S100A |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
75S 100A Unique design BMS lithium battery management system 240V BMS for lifepo4 battery pack HV BMS
Product Features
- 3 temperature sensor per 15 strings, 12 total for 60 strings; 15
total for 75 strings.
- Hall sensor for current collection, safe and reliable, no heat.
- SOC estimation error ≤ 5%.
- 3-digit address dialing to set the BMS address.
- 3-channel relay dry contact output.
- PC software will be provided for customers to debug BMS and
modify system parameters.
- Support up to 7 BMS in parallel.HMI display: Optional (3.5-inch
screen)
- Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.

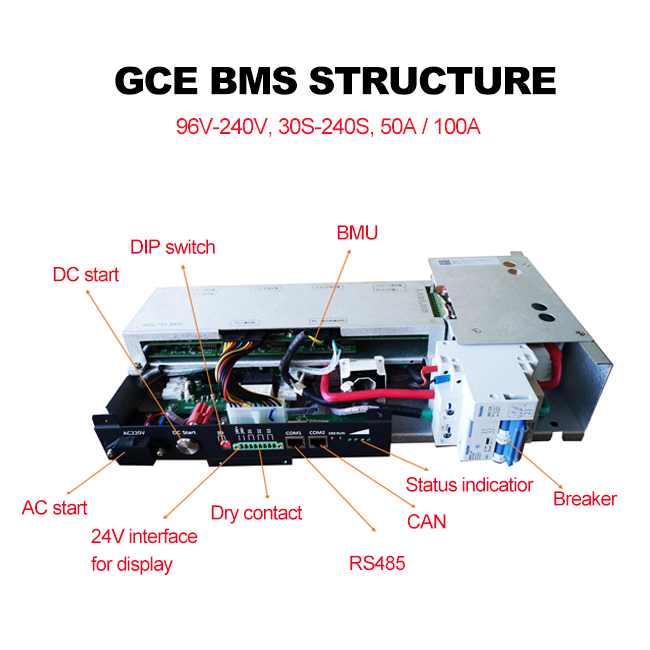

- BMS integrated machine components are composed of BMS main
control board, BMU sampling board, high voltage board, switching
power supply, Hall sensor, DC contactor, micro switch, power
terminal, structural box and wiring harness, etc.; the
characteristic is that the main
control board Integrate with sampling board and other power devices
to keep the system as a secondary architecture. It has the
characteristics of compact structure, flexible installation and low
cost, and is suitable for integrated installation with small
capacity batteries. The BMS integrated machine component is mainly
suitable for the charge and discharge management of lithium iron
phosphate batteries (LFP). If you need to modify the parameters
with other batteries,please contact our company for confirmation.
Specification
Product Name | Master Slave BMS (Integrated BMS) | |
Model no. | RBMS07S75S100A | |
System voltage range | 96-240 V DC | |
Startup mode | DC start (optional AC and DC starter) | |
Number of battery strings30 | 30S-75S | |
Balance | Equilibrium type | Passive resistance equalization |
Balanced current | 100mA ± 10mA(Single cell 3.4V ) | |
Temperature Sampling | Numbers | 12 Battery temperature(4*3) |
Sampling accuracy | ± 2℃ | |
Voltage Sampling | Sampling accuracy | Single cell ±20mV |
SOC | ≤5% | |
Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, | |
Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit
operation indication, 4-bit SOC power indication HMI display: optional | |
Hall sensor specifications | 50A/100A | |
Maximum load of power components | Steady-state:100A transient state:150A/10S( Adjustable) | |
Alarm level | 1 Level | |
Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down | |
Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ | |

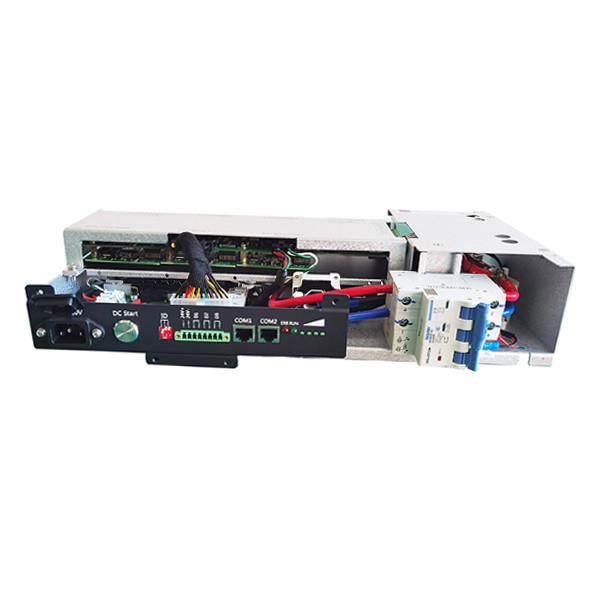

Detail Picture
Our Company
- Hunan GCE technology Co., Ltd. was founded in 2012, specializing in R&D and manufacture high voltage battery management system
(BMS) for KWh to MWh power system.
- Products are exported to more than 150 countries.
- 30s to 75s BMS adopts master-slave integrated design and relay
solution to meet the lithium battery demand of multiple strings of
small capacity
batteries. Greatly reduce the use cost of users.
- 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single
lithium batteries within 1000V.
