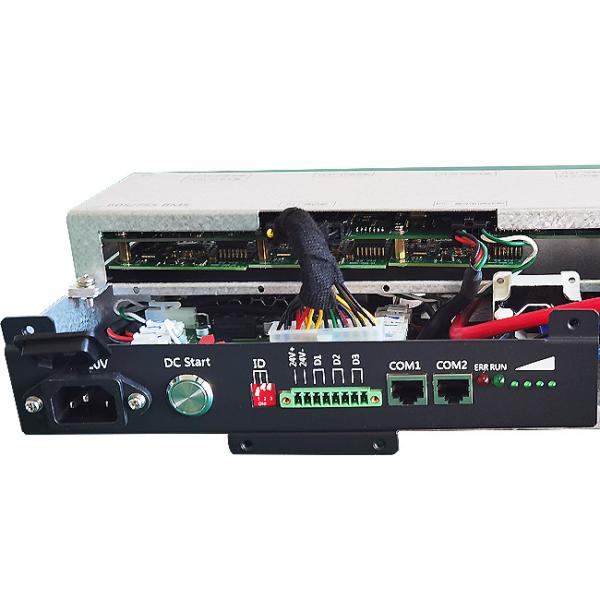

GCE 38S 120V 100A New Design BMS lithium battery management system lifepo4 BMS

Model No.: RBMS07S38S100A

1.It is high integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.

3.It without heavy metals and environment friendly.

4.Maintenance free,there is no memory effect.

5.Internal BMS with full protection,battery has high voltage protection with higher reliability.

6. Master and Slave all in one.

System Features

• Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.
• 15 probes for every 15 strings, for a total of 15
• current collection uses Hall sensor, safe and reliable, no heat;
• SOC estimation error ≤ 5%;
• 3-digit address dialing to set the BMS address;
• 3-channel relay dry contact output;
• LED signal indicates working status (4-bit SOC indication, 1-bit operation indication, 1-bit fault indication)
• 3-digit address dialing to set the BMU address;
• 3-channel relay dry contact output;
• 4-channel contactor expansion and auxiliary contact detection;
• Provide PC software to facilitate the customer to debug the battery system, or modify the
  system parameters through the host computer;
• Support temperature module expansion;
• Support Bluetooth, GPRS, external serial port display expansion (extended function single machine three choice one);
• Support for parallel use (maximum 7 units)
• The default system overcurrent capability is 100A
• APPLICATION SCENARIO
  1. Home storage

  2. Island off-grid energy storage

  3. Micro-grid applications

  4. UPS power supply

  5. Power System 220V DC power supply

Equalization function
