2U Smart High Voltage Battery Management System BMS 90S 288V 50A

Ask Lasest Price
Brand Name :	GCE
Model Number :	RBMS07S2-3-50A288V
Certification :	CE
Price :	Please contact: ellen@hngce.com
Payment Terms :	T/T, L/C
Supply Ability :	5000sets / Month
Delivery Time :	10-15 work days

Add to Cart

Product Details
Company Profile

2U Smart High Voltage Battery Management System BMS 90S 288V 50A

90S 288V 50A 2U Smart BMS High Voltage Bms With Relay Master Slave BMS Lifepo4 For Battery Energy Storage UPS

BMS Configuration

90S 288V 50A High Voltage BMS * 1set

15S BMU * 6sets

15S wire harness *6sets

(15S 48V battery module, 6 modules in series for 90S 288V 50A system)

Application

Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid energy storage
LFP UPS power supply

Specification

Product Name	BMS
Model no.	RBMS07S2-3-50A288V
protecting method	MCCB+Contactor
Rated Current range	-50A~50A
Voltage Range	48V-500V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with RBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	No
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	5
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	2U (44088500)
Tap center	Not support
Net weight	14kg

Detail Picture

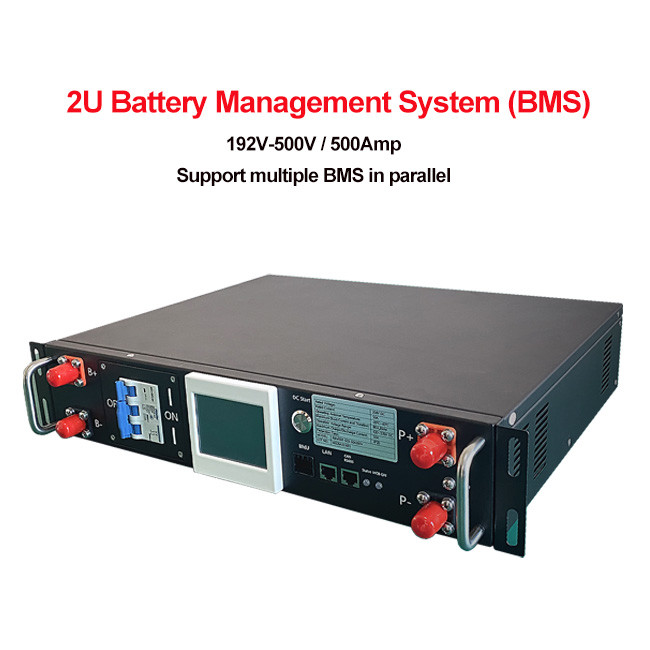

2U Smart High Voltage Battery Management System BMS 90S 288V 50A

Our Company

Hunan GCE Technology Co., Ltd. is a high-tech company specializing in the R & D and production of high voltage BMS for UPS, ESS, Solar Energy Storage and etc.

30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.

60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, and we have 10 years of experience in high voltage manufacture.

Q. What is your MOQ?
A: Yes, a sample order is available for quality checking and market testing.

Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20 days depending on requirement and quantity.

Q. How is your warranty?
A: 3-years.

Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery information real time.

Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.

Integrated BMS: 96V-240V 50A / 100A

2U BMS: 192V-500V, 50A / 100A

3U BMS:192V-600V, 125A / 160A

4U BMS: 192V-1000V, 250A

5U BMS: 192V-1000V, 400A /500A
