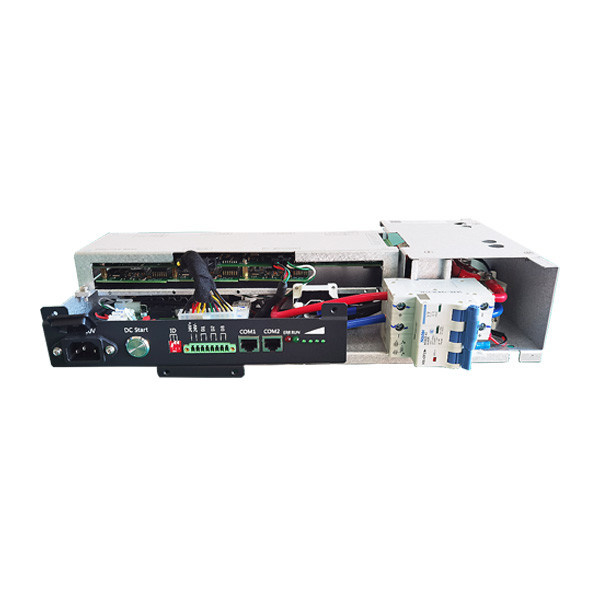

60S 192V 100A BMS For Solar System RS485 CAN Communication Protocol

Product Categories

Hunan GCE Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	GCE
Model Number :	RBMS07S60S100A
Certification :	CE
Price :	Please contact: ellen@hngce.com
Payment Terms :	T/T, L/C
Supply Ability :	2000sets / Month
Delivery Time :	10-15 work days

Add to Cart

Master Slave BMS 60S 192V 100A With RS485 CAN Communication Protocol For UPS Inverter PCS Home Solar Energy ESS

Product Features

- GCE unique design integrated BMS. Voltage 96V-240V, Current 50A / 100A.

- Master and slave are in one BMS device. It's a high cost performance BMS in the market.

- Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units.

- 3 temperature sensor per 15 strings, 12 total for 60 strings; 15 total for 75 strings.

- Hall sensor for current collection, safe and reliable, no heat.

- SOC estimation error ≤ 5%.

- 3-digit address dialing to set the BMS address.

- 3-channel relay dry contact output.

- PC software will be provided for customers to debug BMS and modify system parameters.

- Support up to 7 BMS in parallel.

- HMI display: Optional (3.5-inch screen)

Specification

Product Name	Master Slave BMS (Integrated BMS)
Model no.	RBMS07S60S100A
System voltage range	96 -240V DC
Startup mode	DC start (optional AC and DC start)
Number of battery strings	60S(4 x 15S)
Balance	Equilibrium type	Passive resistance equalization
	Balanced current	100mA ± 10mA(Single cell 3.4V )
Temperature Sampling	Numbers	12 Battery temperature(4*3)
	Sampling accuracy	± 2℃
Voltage Sampling	Sampling accuracy	Single cell ±20mV
SOC	≤5%
Communication mode	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional,
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Hall sensor specifications	50A/100A
Maximum load of power components	Steady-state:100A transient state:150A/10S( Adjustable)
Alarm level	1 Level
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃

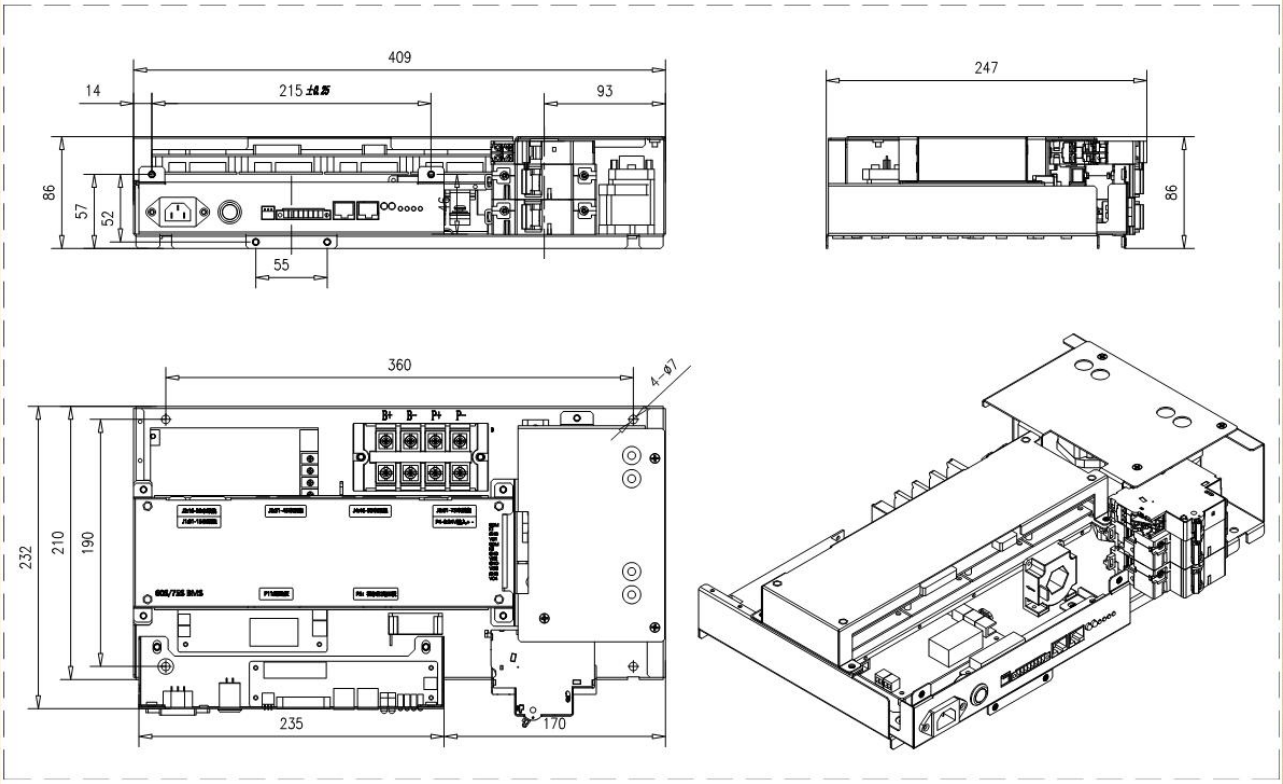

Detail Picture

60S 192V 100A BMS For Solar System RS485 CAN Communication Protocol

GCE BMS

- GCE Relay BMS 50A 125A 160A 250a 400a 500A 30S-270S smart bms lifepo4 48v 15s Slave BMU for inverter UPS ESS.

- We can design it for various lithium batteries like LiFepo4, NMC, LTO etc.
- GCE BMS Support 30S-270S,96V-864V.

- BMS manufactured by high quality relay and IC.

- Over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.

- From kWh to MWh, GCE High-Voltage BMS manages up to 1000 VDC per battery rack (battery stack) and up to 8 racks (stacks)

in parallel with the addition of SBMS for Multi rack / stack.
