GCE BMS 180S 576V 250A high voltage master Slave BMS with relay contactor lifepo4 bms 15S BMU wire harness

The Battery Management System (BMS) is used for batteries of high voltage hybrid / off grid solar energy system, UPS and BESS application. As a core component the battery management system is integrated into the Li-Ion battery and manages all its functions. Based on collected system data, the cells are individually balanced and operated under safe conditions. The BMS has a modular structure including the Battery Management Controller (BMC), the Cell Supervising Circuit (CSC) and HV Sensor Device.

BMS Configuration

180S 576V 250A High Voltage BMS * 1set

18S BMU * 10sets

18S wire harness *10sets

(18S57.6V battery module,10 modules in series for 180S 576V 250A system)

Support multiple BMS connected in parallel

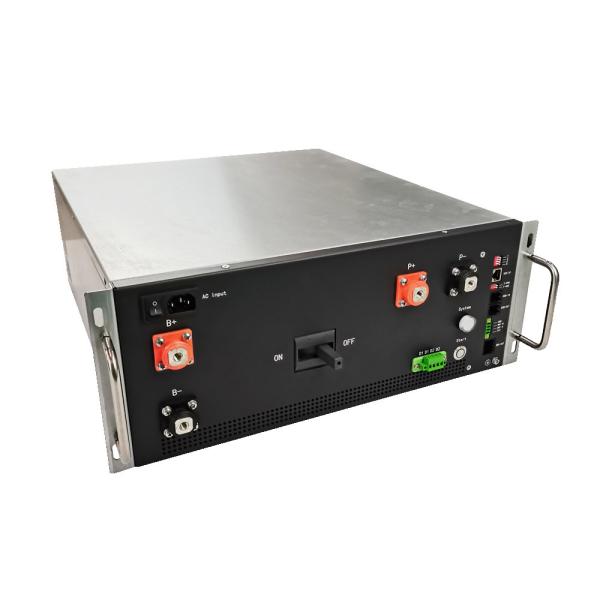

Mater BMS

Voltege: 192V-1000V, 250A

12S-24S Slave BMU

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 communication.

Wire Harness

18 Pin+20Pin wire

Tempreture & Voltage acquisition wire length: 600mm,900mm,1200mm
Fan wire: 600mm

Cmmunication Cable

The communication cables are used to connect the master BMS to each BMU.

Application

GCE high voltage BMS suiltable for Battery Energy Storage System(BESS), Hibrid / Off Grid solar Energy Storage System, Wind Energy Storage System, Data Center, UPS and etc.

Specification

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
