BMS 195S 576V DC 125A High Voltage Lifepo4 BMS For LFP LTO NCM BESS UPS Battery System

We are a high voltage BMS manufacturer, We made BMS voltage from 48V to 1000V with master and slave three-level structure solution.

It is suitable for LFP & NMC batteries in BESS, UPS..., If you are interested in please don't hesitate to contact me free.

Model no.: RBMS07S2-3-160A576V

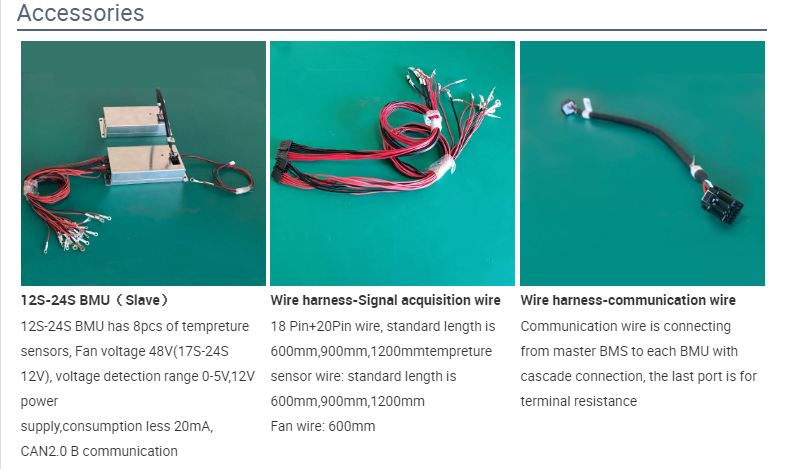

1set Master BMS,

13sets 15S Slave BMU

13sets 15S Wire Harness

3U standard 19inch case

Efficient, stable and reliable

W482*H132*D500mm

Specification

Product Name	BMS
Model no.	RBMS07S2-3-125A576V
protecting method	MCCB+Contactor
Rated Current range	-125A~125A
Voltage Range	120V-680V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	13
Power	24VDC(18~28V)
Power consumption	≤15W
Size(W*H*D)mm	2U (440*88*500)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	15kg

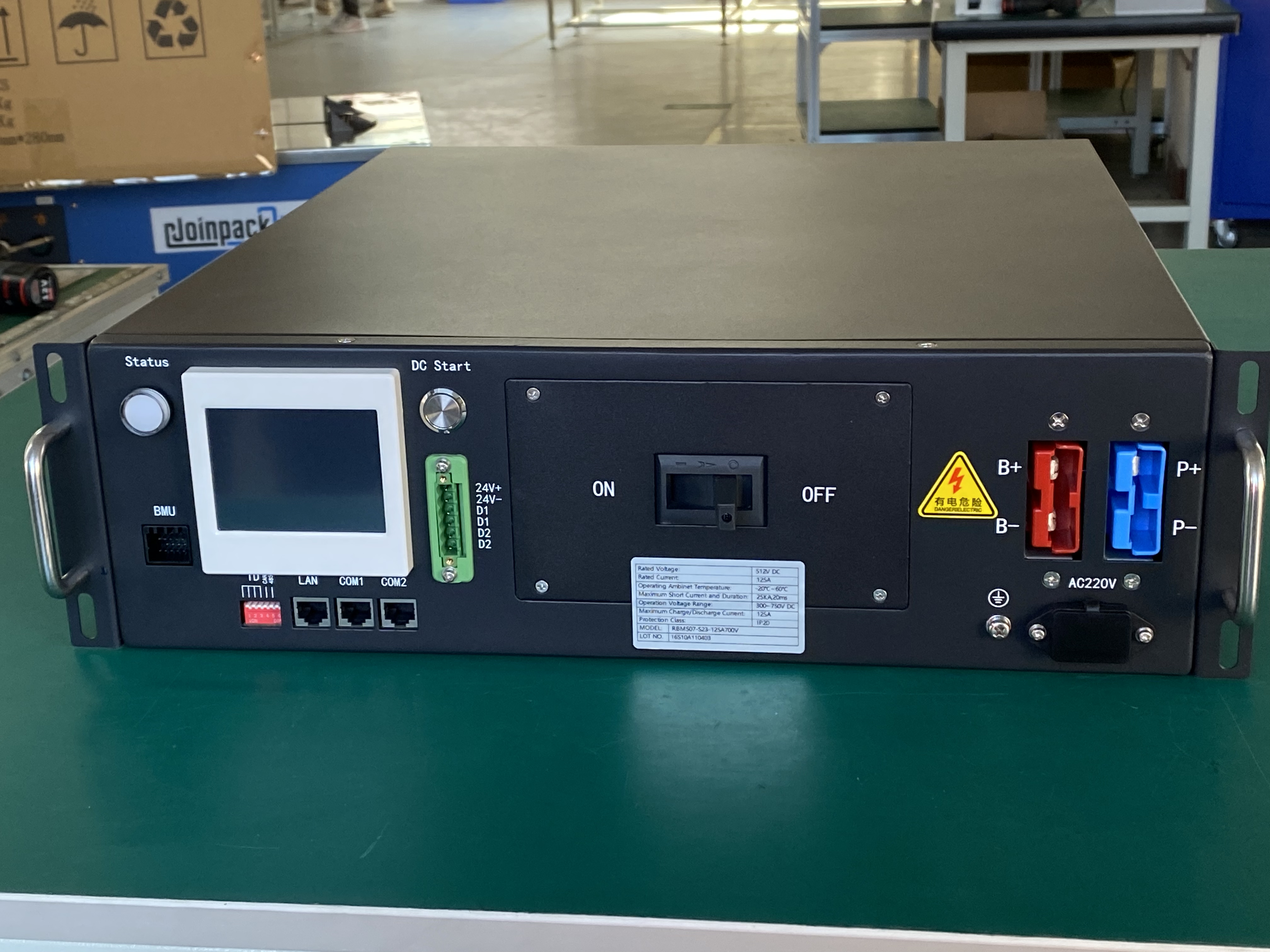

Actual pictures for your reference

Application & Production line

1. Devoated in BMS solution over ten years experience

2. Provide energy storage systems solution, BMS, battery pack and so on.

3. Customization solutions meet all your requirements

Company

Hunan GCE is a high voltage BMS manufacturer, made of suitable for LFP & NMC batteries in BESS, UPS, EV...BMS voltage from 48V to 1000V with master and slave three-level structure solution for over ten years.

GCE energy storage system resource energy across much of India, America, Europe and so on, helping offer sustainale solutions to meet your energy needs. We exploitation, construct and customization kinds of energy projects to the man whom need energy solutions. We also offer a variety of energy-related products and services too. Most importance, We dedicated to quality, cmmitted to provide the best solutions under the reasonable price to help our clients earn the market.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

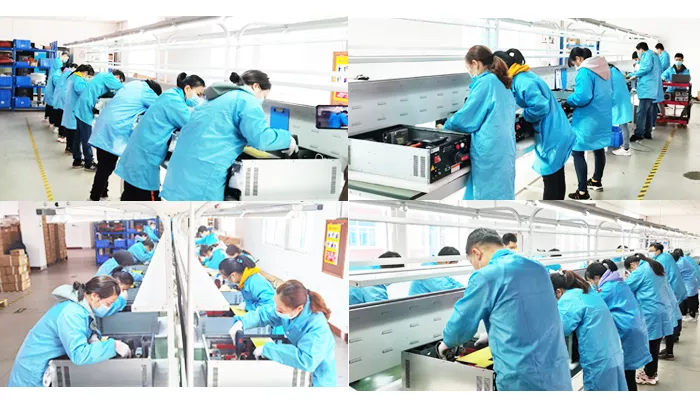

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
