To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-250A672V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
GCE BMS 60S-270S 672V 250A Li-ion LiFePO4 master slave BMS with CANBUS RS485 communication for inverter ups ess solar
BMS Configuration
210S 672V 250A High Voltage BMS * 1set 21S BMU * 10sets 21S wire harness *10sets (21S48V battery module,10 modules in series for 210S 672V 250A system) |
 |

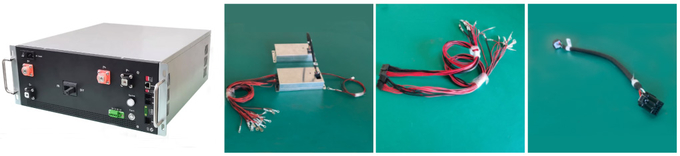

| 4U master BMS Slave BMU Wire Harness Communication Cable |
| * 4U BMS: Voltage 240V-1000V. Current 250A * Slave BMU: 12s-24s * Wire harness: length 600mm,900mm,1200mm with M4/M6 terminal * Support multiple BMS connected in paralle to achieve higher capacity. |
Application
GCE 75S 240V BMS for LifePO4 pack
GCE 75S 240V BMS for Lithium ion Battery Pack
GCE 75S 240V BMS for Battery Energy Storage System(BESS)
GCE 75S 240V BMS for Industrial and Commercial Battery Solution
GCE 75S 240V BMS for Photovoltaic Farm
GCE 75S 240V BMS for Off-grid energy storage
GCE 75S 240V BMS for Home Energy Storage
GCE 75S 240V BMS for Data Centre
GCE 75S 240V BMS for Wind Energy Storage
GCE 75S 240V BMS for Solar Power System
GCE 75S 240V BMS for Portable Power Station
GCE 75S 240V BMS for UPS Power Supply
GCE 75S 240V BMS for Lithium ion Batteri Pack
GCE 75S 240V BMS for Micro-grid applications
Specification
Product Name | 210S 672V 250A Master Slave BMS |
Model no. | RBMS07S2-3-250A672V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Tap center | Not support |
Net weight | 28kg |
Products Display

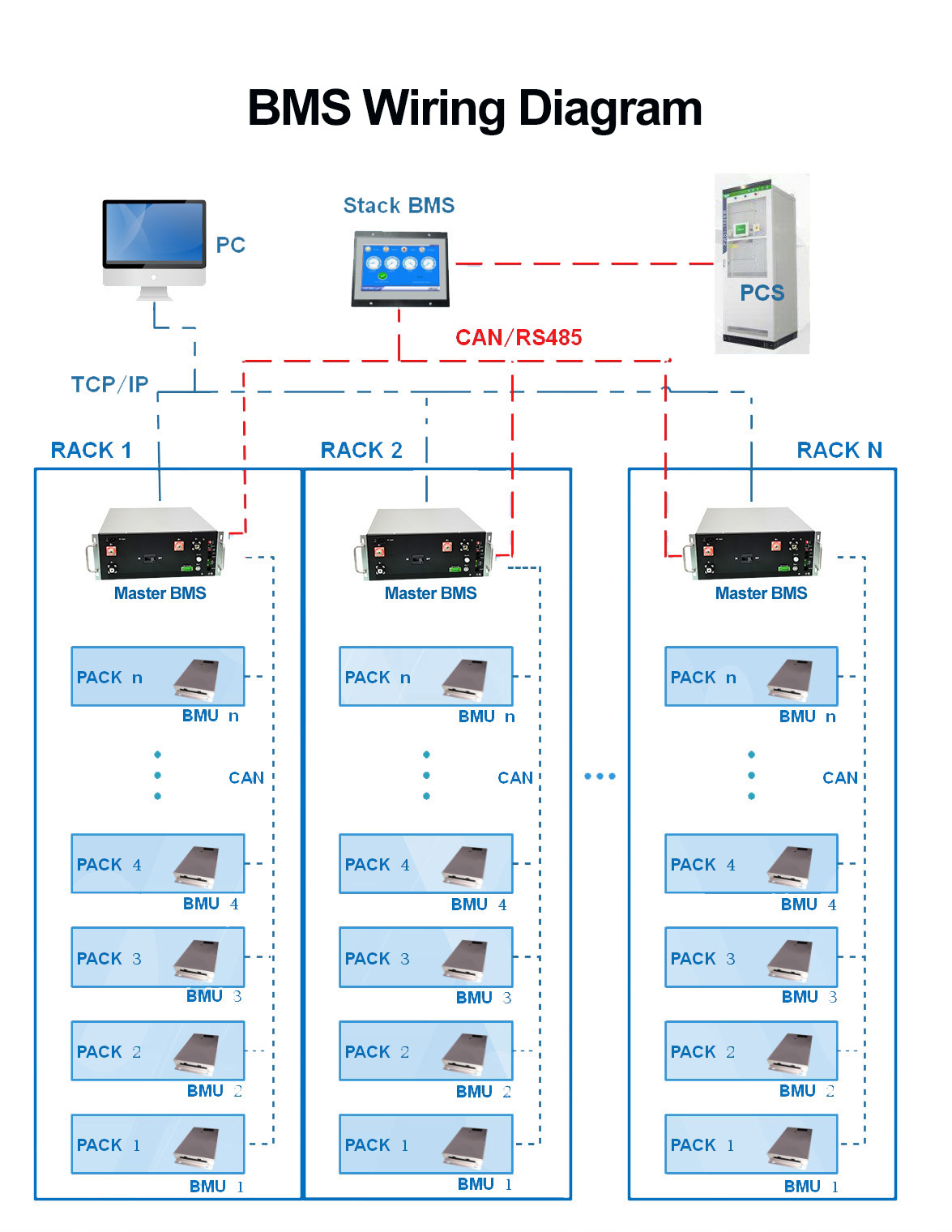

GCE BMS Solution
GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.
FAQ
Q. What is your MOQ?
A: one unit.
Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20
days depending on requirement and quantity.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery
information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.
Integrated BMS: 96V-240V 50A / 100A
2U BMS: 192V-500V, 50A / 100A
3U BMS:192V-600V, 125A / 160A
4U BMS: 192V-1000V, 250A
5U BMS: 192V-1000V, 400A /500A
