To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-50A192V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
GCE Master Slave BMS 60S 192V 50A LifePO4 BMS In Parallel With 15S Slave BMU And For Home Solar Energy Storage ESS UPS
BMS Configuration
60S 192V 63A High Voltage BMS * 1set
15S BMU * 4sets
15S wire harness *4sets
(15S48V battery module, 4 modules in series for 60S 192V 63A system)
Specification
Product Name | 192V 60S High Voltage BMS |
Model no. | RBMS07S2-3-50A192V |
protecting method | MCCB+Contactor |
Rated Current range | -50A~50A |
Voltage Range | 238V-328V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 3U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 21kg |

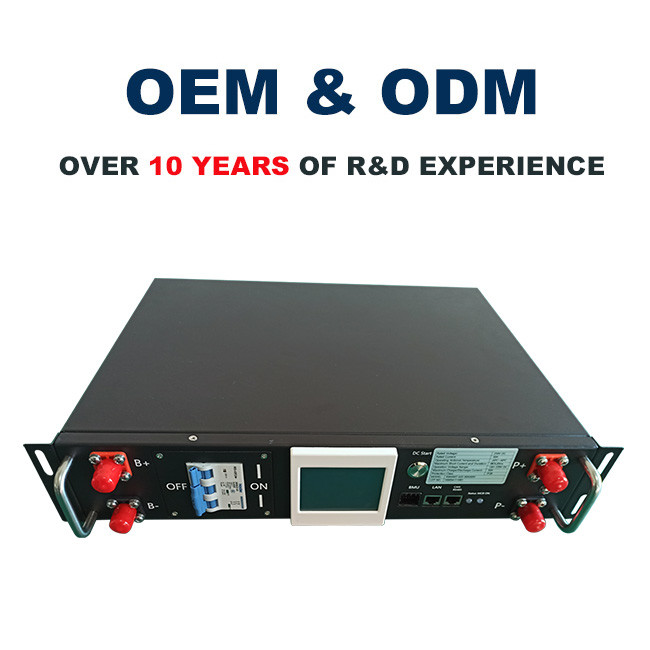

Products Display
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, and we have 10 years of experience in high voltage manufacturer.
Q: Can I get some samples?
A: Yes, a sample order is available for quality checking and market testing.
Q: What kind of cells are applicable to this Battery Management System?
A: LFP, NMC, LTO
Q. How about the delivery time?
A: Usually we need about 15-20 working days, which is according to the specification and the order quantity.
Q. What are your terms of payment?
A: Advanced T/T is the main payment term, and other payment terms are negotiable.
Q: What are your warranty terms?
A: We offer a 3-year warranty.
Q: How does your factory do regarding quality control?
A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, CANBUS and RS485. You can see battery information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP, NCM. LTO Batteries.
Integrated BMS: 30S, 40S, 50S, 60S, 64S, 75S, 96V-240V 50A / 100A

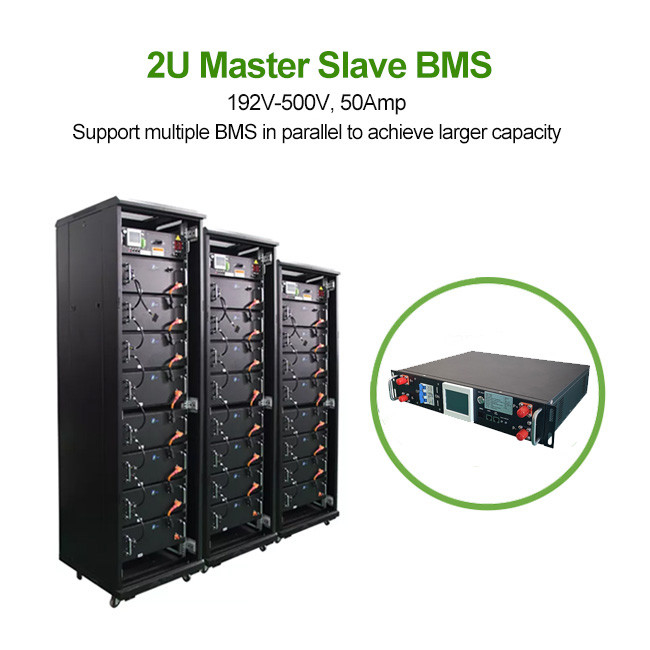

2U BMS: 192V, 240V, 256V, 288V,336V,384V......500V
3U BMS:192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 125A / 160A
4U BMS: 192V, 240V, 256V, 288V,336V,384V, 432V, 512V, 480V, 768V, 864V.....1000V, 250A
5U BMS: 192V,204.8V, 358.4V, 409.6V, 460.8V, 716.8V,......1000V, 400A / 500A
