To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-400A528V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
LiFePO4 BMS
ESS BMS LFP 165S 528V 400A LiFePO4 BMS with balance for battery pack energy storage system

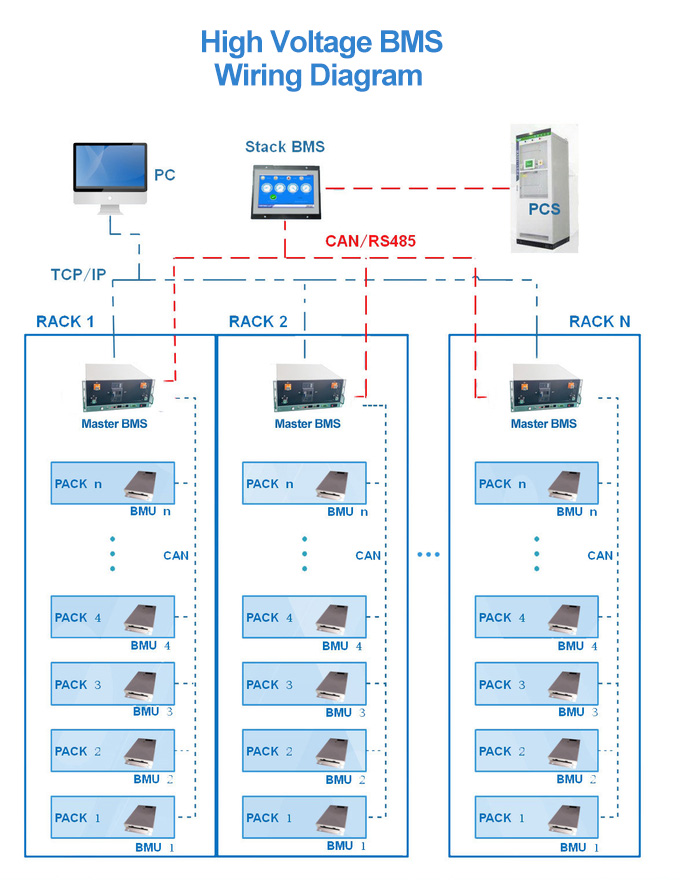

BMS Configuration
165S 528V 400A high voltage BMS(HV BMS) * 1set
15S BMU * 11sets
15S wire harness *11sets
(15S48V battery module,11 modules in series for 165S 528V 400A system)
Application
Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply
Specification
Product Name | |
Model no. | RBMS07S2-3-400A528V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Tap center | Not support |
Net weight | 28kg |

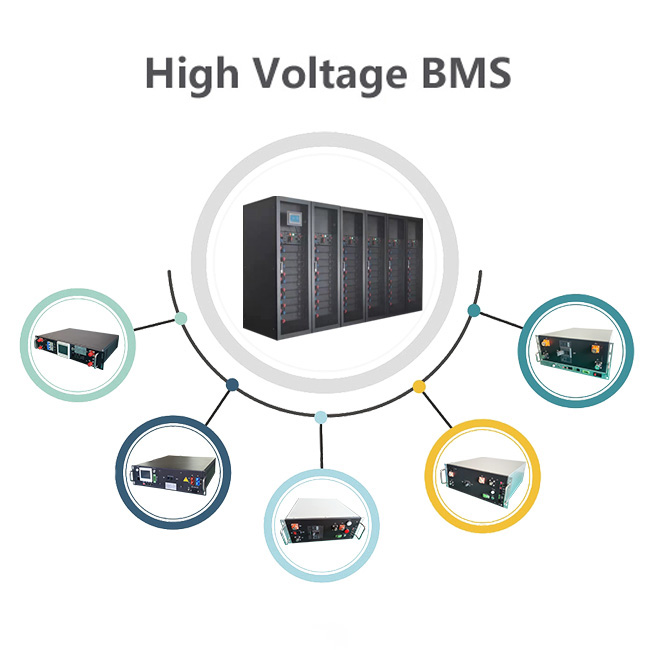

Products Display
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, and we have 10 years of experience in high voltage BMS(HV BMS) manufacture.
Q: Can I get some samples?
A: Yes, a sample order is available for quality checking and market testing.
Q: What kind of cells are applicable to this Battery Management System?
A: LFP, NMC, LTO
Q. How about the delivery time?
A: Usually we need about 15-20 working days, which is according to the specification and the order quantity.
Q. What are your terms of payment?
A: Advanced T/T is the main payment term, and other payment terms are negotiable.
Q: What are your warranty terms?
A: We offer a 3-year warranty.
Q. Can you produce BMS with customization requirements?
A: Yes, we offer OEM & ODM services.
Q: How does your factory do regarding quality control?
A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
