GCE +/-192V=384V 50A 120S cells Lithium high voltage ESS BMS lifepo4 BMS center tap&middle line&3-wire relay BMS breaker UPS

GCE HV Overall Solution BMS Configuration:

For UPS Power manufacturer, the Overall solution center-tapped BMS with flexible and strong

configurability, its dual battery cluster backup means double protection on the continuous power

supply to clients. BMS can adapt to the requirements of UPS for the environment and perform

tasks such as battery protection and continuous power supply. It is a good helper for solving problems.

One set of +/-192V=384V 50A 120S contains:

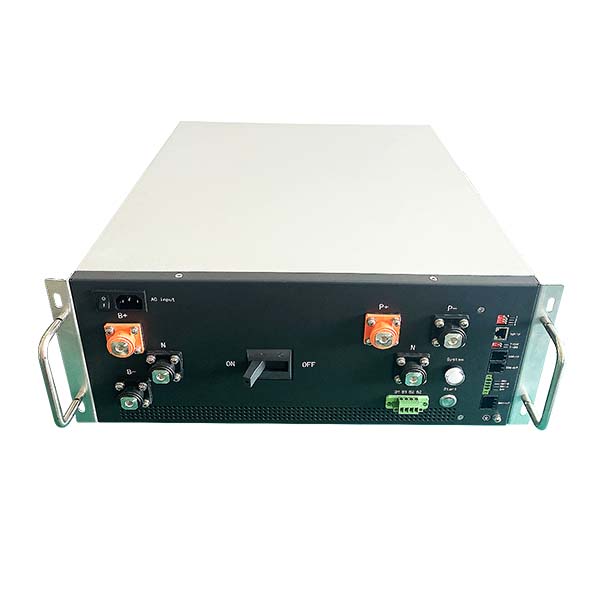

1unit Master BMS, model#: RBMS07-S30-50A384V

8units Slave BMU, model#: BMU07-15S8T48F

8set 15S Wire Harness.

The main control will be required if there are multiple racks parallel connection, model#: SBMS, which is

equipped with a 7" touchscreen.

GCE HV Master BMS and Accessories:

12S-24S BMU(Slave) 12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication Wire harness- Signal acquisition wire 18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm Fan Power wire: 600mm Wire harness- communication wire Communication wire connects from the master BMS to each BMU with a cascade connection, the last port is for terminal resistance

GCE BMS technical parameters:

Applications:

FAQs:

• Q: Are you a manufacturer or simply a trading company?
  A: We are a manufacturer, and we sincerely welcome you to visit our factory.
• Q: Can I get some samples?
  A: Yes, a sample order is available for quality checking and market testing.
• Q: What kind of cells apply to this Battery Management System?
  A: LFP, NMC, LTO
• Q. How about the delivery time?
  A: The lead time usually takes about 15 to 20 working days according to the specification of your order and quantity.
• Q. What are your terms of payment?
  A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
• Q: What are your warranty terms?
  A: We offer a 3-year warranty.
• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.

GCE HV BMS Documents Download:

Linkage for downloading Master BMS and Slave BMU specifications:

GCE_RBMS specification--EN--V1.0.pdf

GCE 12-16S BMU-specification-UL-V1.0.pdf

Linkage for downloading a BMS demand information collection form:

high voltage BMS info collection form EN2021-04.do...

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
