To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S60S50A |
| Certification : | CE UL |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000+pcs+1 month |
| Delivery Time : | 8-15 days |
60S 50Amp BMS
Communication protocol:
CAN, RS485, Bluetooth, GPRS,Dry Contact
* Design: Master & Slave all in one
* Efficient, stable and reliable * size:W410*H232*D128cm
SYSTEM OVERVIEW
4. current collection uses Hall sensor, safe and reliable, no heat
5. SOC estimation error ≤ 5%;
6. 3-digit address dialing to set the BMS address
7. 3-channel relay dry contact output
8. 4-channel contactor expansion and auxiliary contact detection
9. Provide PC software to facilitate the customer to debug the battery system, or modify the system parameters through the host computer
10. Support for parallel use (maximum 7 units)

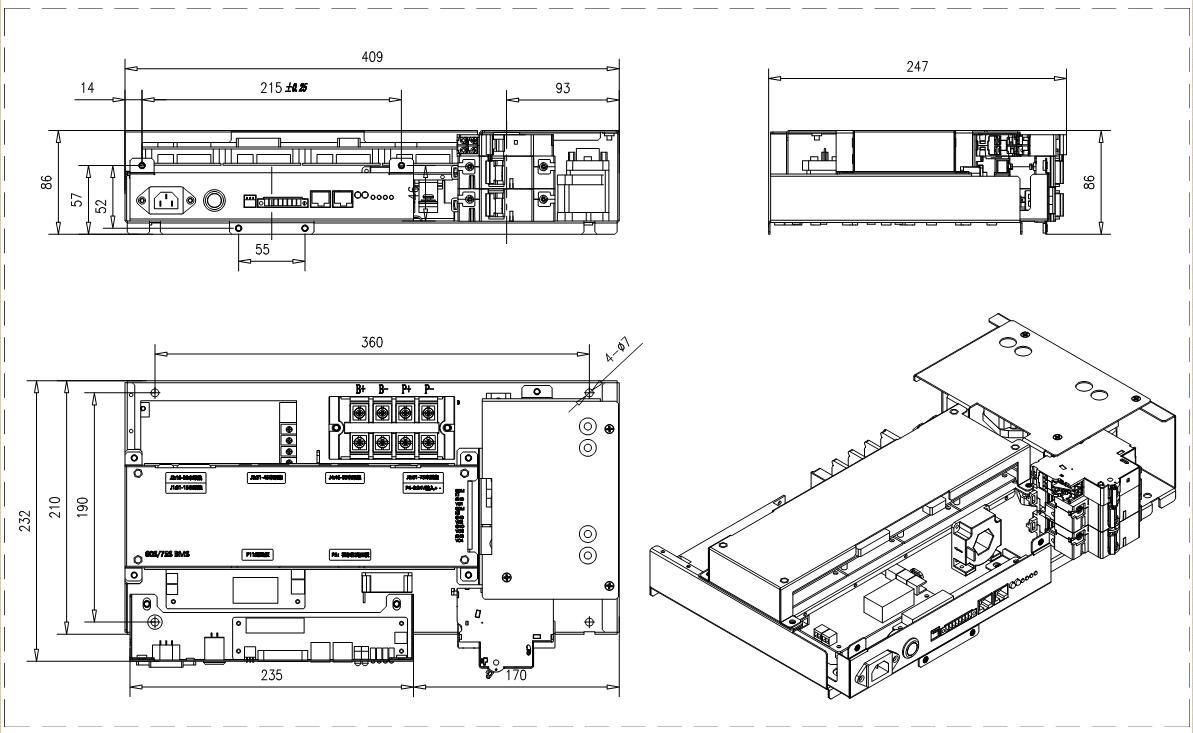

BMS COMPONENT SIZE AND INTERFACE

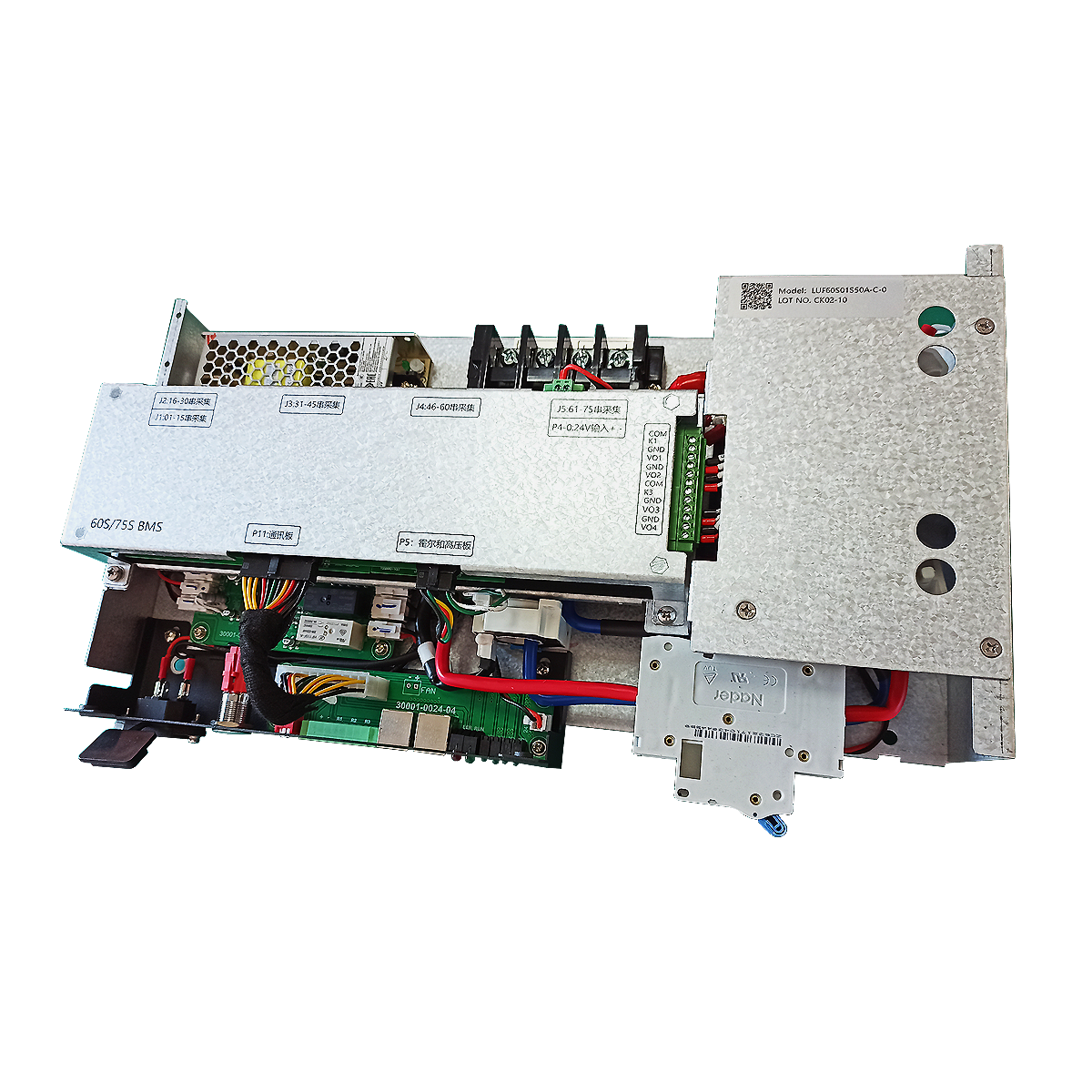

Real pictures for your reference
Product Name | Integrated BMS(master slave together in one) | |
Model no. | RBMS07S60S50A | |
System voltage range | 0 - 192 V DC | |
Startup mode | DC start (optional AC and DC starter) | |
Number of battery strings | 60 S(4 x 15 S) | |
Balance | Balance type | Passive resistance equalization |
Balanced current | 100mA ± 10mA(Single cell 3.4V ) | |
Temperature Sampling | Numbers | 12 Battery temperature(4*3) |
Sampling accuracy | ± 2℃ | |
Voltage Sampling | Sampling accuracy | Single cell ±20mV |
SOC | ≤5% | |
Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, | |
Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit
operation indication, 4-bit SOC power indication HMI display: optional | |
Hall sensor specifications | 50A/100A | |
Maximum load of power components | Steady-state:100A transient state:150A/10S( Adjustable) | |
Alarm level | 1 Level | |
Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down | |
Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ | |
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
|
