GCE 224S 716.8V 160A Lifepo4 BMS Li-Ion Battery Management System Master BMS 4S 12V BMS

Model no.: RBMS07-S20-160A716.8V

BMS Solution:

Number of moudel strings: 224S (15S*15)

1set Master BMS,

15sets 15S Slave BMU

15sets 15S Wire Harness

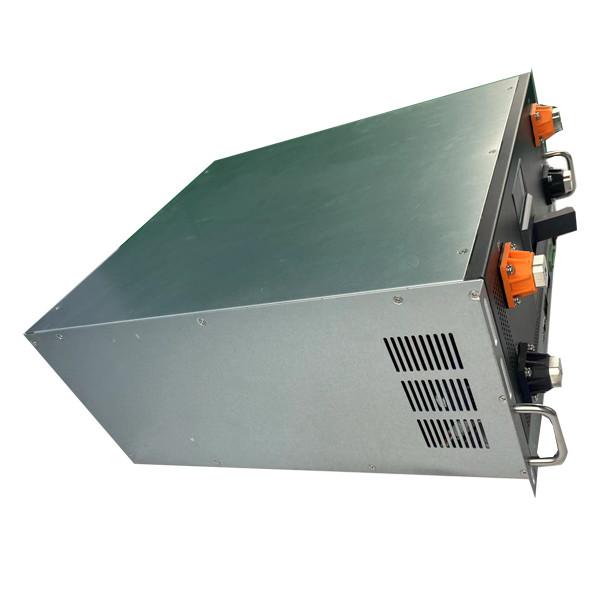

4U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm

Selling Units:Single item

Single package size: 80X70X60 cm

Single gross weight:40.000 kg

Package Type:Corrugated Carton, bundles, pallets, wooden box

Accessoires including:

12S-24S BMU(Slave)	Wire harness-Signal acquisition wire	Wire harness-communication wire
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication	18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm	Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
13sets 15S Slave BMU	13sets 15S Wire Harness	13sets 15S Wire Harness

Specification

item	High voltage BMS
Place of Origin	China
	Hunan
Application	Solar Energy Storage Systems
Brand Name	GCE
Model Number	15
Model Number:	RBMS07S-20-160A716.8V
Product name:	4U BMS
Battery Type:	LFP/NMC/LTO
communication:	Rs485/CAN/LAN/dry contact
Voltage:	716.8V
Current:	-160~160A
Application:	BESS/UPS
module strings:	15S*14pcs
Power	24VDC(18~28V)
Power consumption	≤20W
Communication with monitoring software/EMS	Ethernet
High voltage power module	Support DC start (optional)

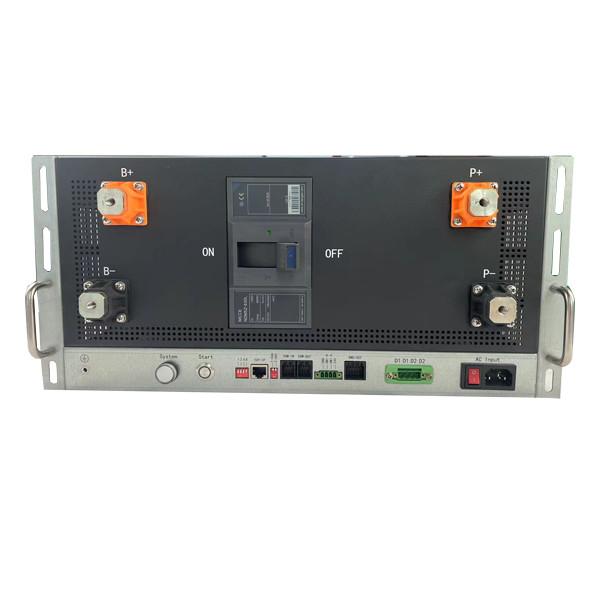

Way out	Front
Center Tap	Support(Optional)
Net weight	23kg
Size(W*H*D)mm	4U (440*178*600)

Project We Made

Application

Martet

Contact me

Jojoling Weng

Whatsapp me: +86 15570747076

Wechat: +86 15570747076

Email: wenglin@hngce.com

Linkedin: https://www.linkedin.com/in/jojoling-weng-74b47b220/

Facebook: https://www.facebook.com/GCEjojoling/

Youtube: https://www.youtube.com/channel/UCm5HlGPOAZyF8nIkAVhN73Q

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
