BMS High Voltage 135S 432V 50A Lifepo4 BMS for LFP MNC LTO

ESS UPS Battery Solar Energy Sistemas de Energia solar

Introduction of GCE Company:

GCE high voltage BMS is an intelligent overall solution. We can connect battery modules with different types of strings in series to higher voltage systems, GCE BMS will assign addresses to each connected battery module, and if a cell is damaged, we can easily Find and replace it. Multiple battery clusters can also be assigned addresses through DIP switches. We allow 8 battery clusters to be connected in parallel. Of course, you can also connect more battery clusters in parallel to meet your MWh energy storage needs. But our suggestion is that you can use every 8 battery clusters as a battery bank and have N battery banks in parallel. Our BMU can be divided into 8 series, 12-16 series, 17-24 series of three specifications of PCB. In this way, you can meet the average distribution of your various total strings of batteries.

We mainly have two BMS Categories, both applicable to Lifepo4 batteries, MnNiCo ternary batteries,

Lithium Titanate batteries.

Integrated BMS (the 30S/96V~75S/240V, Max. 100A), master BMS and Slave BMU all in one design. compact size.

Separated BMS(the 60S/192V~270S/864V, Max. 500A), master BMS and Slave BMU separately installed, flexible in

assembly.

GCE HV Overall Solution BMS Configuration:

One complete set of HV 135S432V 50A BMS solutions includes:

1set Master BMS, Model#: RBMS07-S23-50A432V

9sets 15S Slave BMU Model#: BMU07-15S8T48F

9sets 15S Wire Harness, including voltage&temperature sensoring wires, BMU communication wires,

Fan power wire.

A main control model#: SBMS07 will be required for multiple racks parallel connection applications, equipped

with a 7" display, the main control enables the communications among different racks. Customers also can make

some parameters setting and monitor the battery module status on it easily.

High Voltage Master BMS and Accessories:

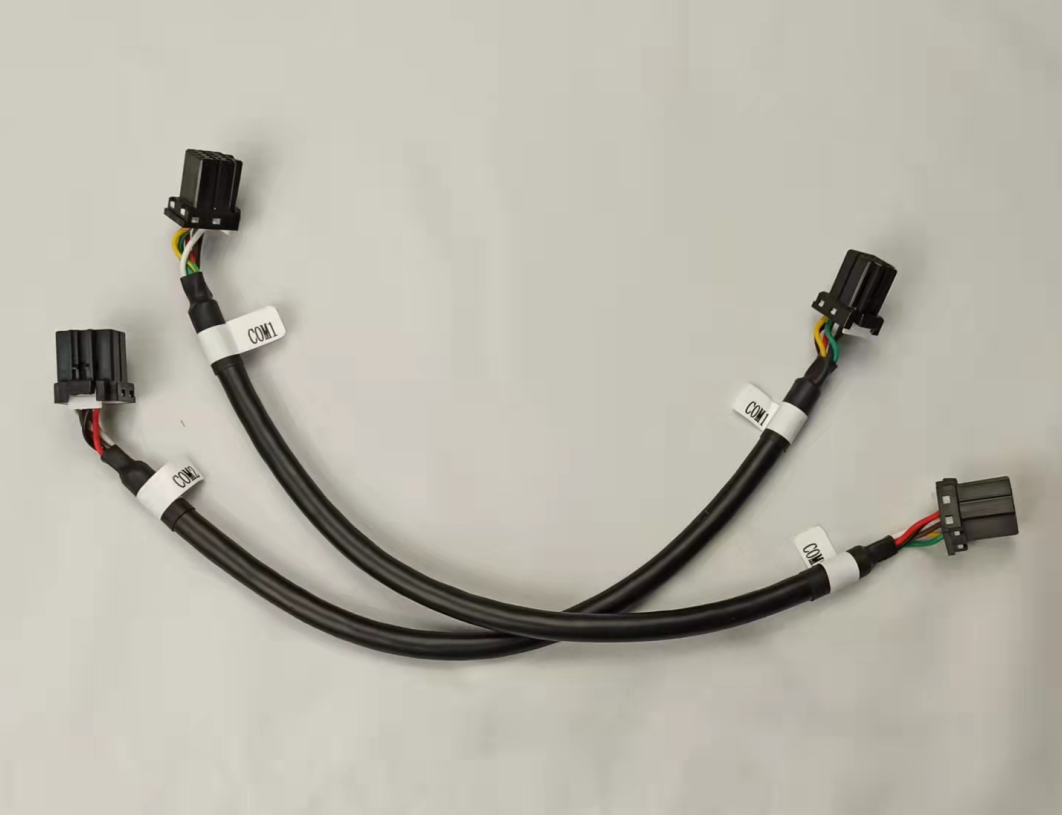

12S-24S BMU(Slave) 12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply, consumption less 20mA, CAN2.0 B communication	Wire harness- Signal acquisition wire 18 P+20P wire, standard length 600mm,900mm,1200mm temperature sensor wire: standard length: 600mm,900mm,1200mm Fan Power wire: 600mm	Wire harness- communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

GCE HV BMS Specification:

GCE HV BMS SYSTEM STRUCTURE:

GCE High Voltage BMS Applications:

GCE HV BMS Documents Download:

GCE_RBMS specification--EN--V1.0.pdf

GCE 12-16S BMU-specification-UL-V1.0.pdf

high voltage BMS info collection form EN2021-04.do...

FAQs about GCE High Voltage BMS:

• Q: Are you a manufacturer or simply a trading company?
  A: We are a manufacturer, and we sincerely welcome you to visit our factory.
• Q: Can I get some samples?
  A: Yes, a sample order is available for quality checking and market testing.
• Q: What kind of cells are applicable to this Battery Management System?
  A: LFP, NMC, LTO
• Q. How about the delivery time?
  A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
• Q. What are your terms of payment?
  A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we’ll discuss the details.
• Q: What are your warranty terms?
  A: We offer a 3-year warranty.
• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the rest ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
