To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-250A614.4V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |

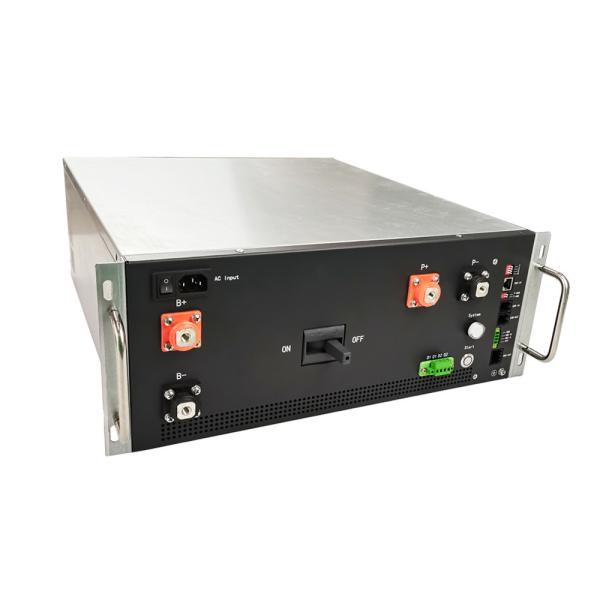

260S 832V Relay BMS For High Voltge Battery System Multiple BMS In Prallel RS485 CAN Communication For ESS Solar UPS
BMS Configuration
260S 832V 250A High Voltage BMS * 1set
20S BMU * 13sets
20S wire harness *13sets
(20S 832V battery module,11 modules in series for 260S 832V 250A system)

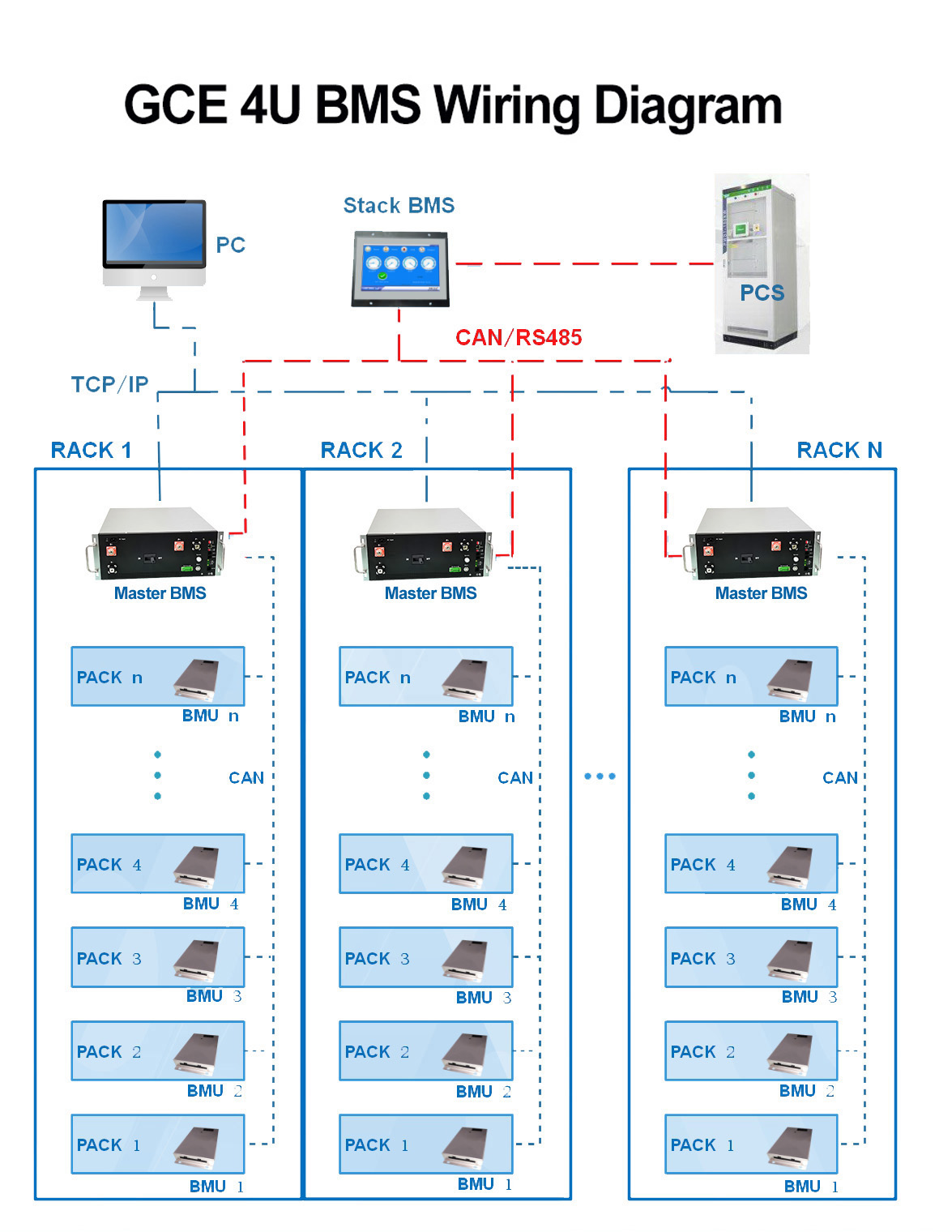

*Support multiple BMS in parallel to achieve higher capacity
| Slave BMU | Wire Harness | Communication Cable |
12S-24S BMU 8pcs of tempreture sensors Fan voltage 48V(17S-24S 12V) CAN2.0 communication | 18 Pin+20Pin wire Harness Length 600mm,900mm,1200mm | Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance. |
Application
Battery Energy Storage System(BESS)
Off-grid energy storage
Solar Power System
Photovoltaic farm
Data Center
UPS power supply
Battery Pack
 |
Specification
Product Name | High Voltage Bms, UPS BMS, Relay BMS |
Model no. | RBMS07S2-3-250A832V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Maximum qty of BMUs | 13 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Way out | Front |
Tap center | Not support |
Net weight | 28kg |
Products Display
Shippment
By Air
By Sea
By express: EMS, TNT, UPS, Fedex, DHL
We can arrange shipment as your request.
FAQ
Q. What is your MOQ?
A: one unit.
Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20
days depending on requirement and quantity.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery
information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.
Integrated BMS: 96V-240V 50A / 100A
2U BMS: 192V-500V, 50A / 100A
3U BMS:192V-600V, 125A / 160A
4U BMS: 192V-1000V, 250A
5U BMS: 192V-1000V, 400A /500A
