75S Relay BMS

75S 50A Unique Design BMS Lithium Battery Management System 240V BMS For Lifepo4 Battery Pack Ess Ups Solar Home Energy

BMS Configuration

75S 240V 50A High Voltage BMS * 1set

15S BMU * 5sets

15S wire harness *5sets

(15S 48V battery module,5 modules in series for 75S 240V 50A system)

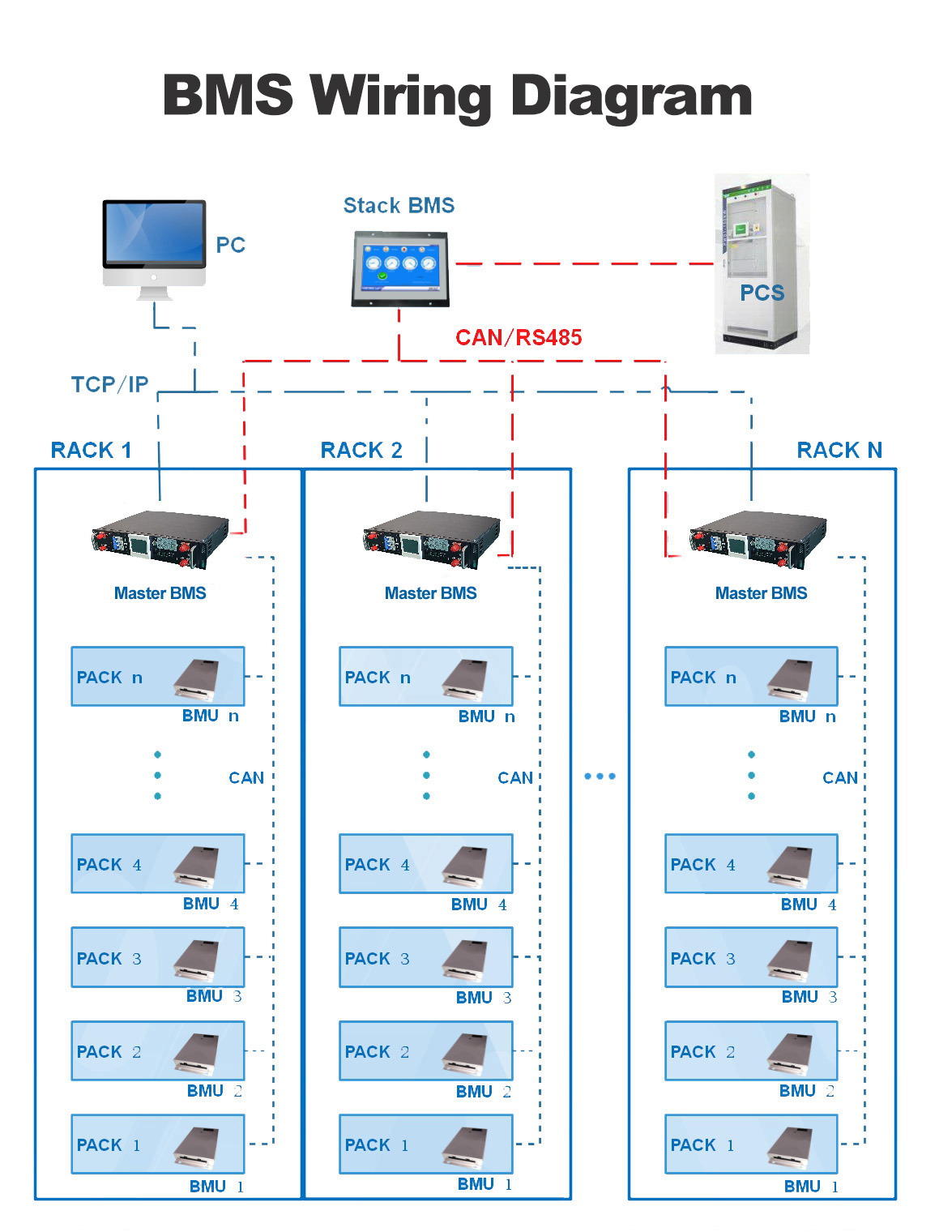

12S-24S BMU(Slave) 12S-24S BMU 8pcs of temperature sensors. consumption less 20mA, CAN2.0 B communication	Wire harness 18 P+20P wire Length: 600mm,900mm,1200mm Fan Power wire: 600mm	Communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance.

Application

Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply

Specification

Product Feature

- Perfect self-test and operational status detection, with HMI display, and system operation information at a glance.

- Advanced Battery Management System -- The highly integrated battery management system enables seamless monitoring.

- Automatic circulation control and automatic parallel machine offline control can be easily parallel batteries.
(Model suffix selection D).

- Flexible communication interface protocol --- The company comes with the company's communication protocol,
but also according to customer needs to adapt to PCS of different manufacturers.

- Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data,
but also can install an SD card for offline access.

- AC, DC Dual power supply design. 3U compact in size, master BMS and Slave BMU make its assembly flexible.
3.5" built-in touchscreen enables BMS operation easily.

- LAN, RS485, and CAN communication channels, together with GCE's unique software, our BMS can exchange
data with PC and other devices.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
