To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S40S50A |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
High Voltage Relay BMS
40s Bms With Relay 128V 100A 50A Lifepo4 Bms With Canbus Rs485 For Growatt Inverter Hibrid Solar Battery System Ess Ups

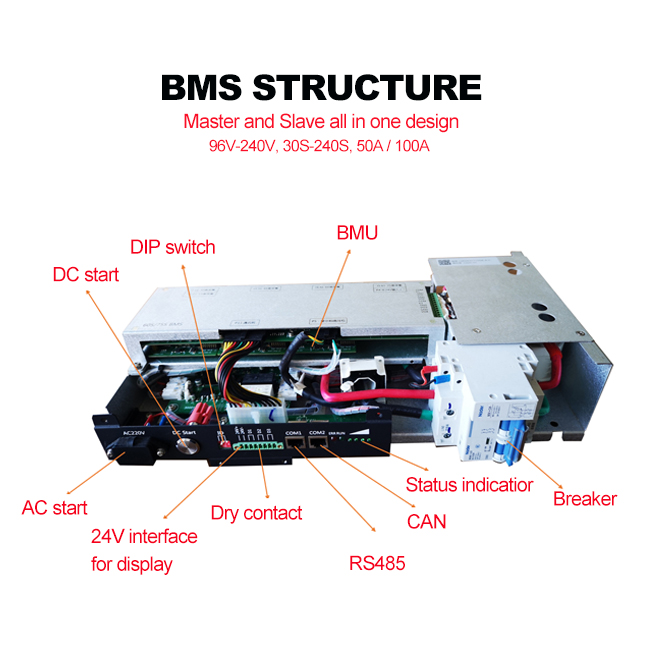

BMS Configuration

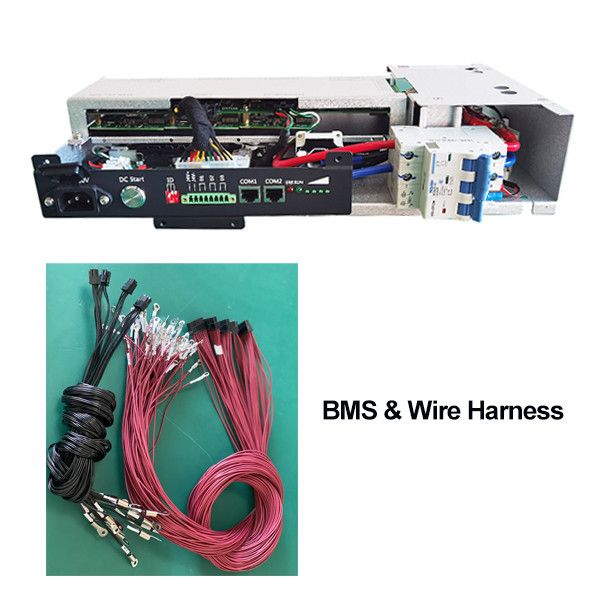

1set of integrated BMS (model: RBMS07S-40S50A, and wire harness.
1200mm 16P Voltage acquisition wires
1200mm 6P Temperature sensoring wires
The Integrated BMS supports a maximum of 75S 240V 100A
applications.
Specification
Product Name | Master Slave BMS (Integrated BMS) | |
Model no. | RBMS07S60S100A | |
System voltage range | 96-240 V DC | |
Startup mode | DC start (optional AC and DC starter) | |
Number of battery strings30 | 30S-75S | |
Balance | Equilibrium type | Passive resistance equalization |
Balanced current | 100mA ± 10mA(Single cell 3.4V ) | |
Temperature Sampling | Numbers | 12 Battery temperature(4*3) |
Sampling accuracy | ± 2℃ | |
Voltage Sampling | Sampling accuracy | Single cell ±20mV |
SOC | ≤5% | |
Communication mode | CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional, | |
Display mode | 6-digit LED indicator, including 1-bit fault indication, 1-bit
operation indication, 4-bit SOC power indication HMI display: optional | |
Hall sensor specifications | 50A/100A | |
Maximum load of power components | Steady-state:100A transient state:150A/10S( Adjustable) | |
Alarm level | 1 Level | |
Protection level | 2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down | |
Operating Temperature | Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃ | |

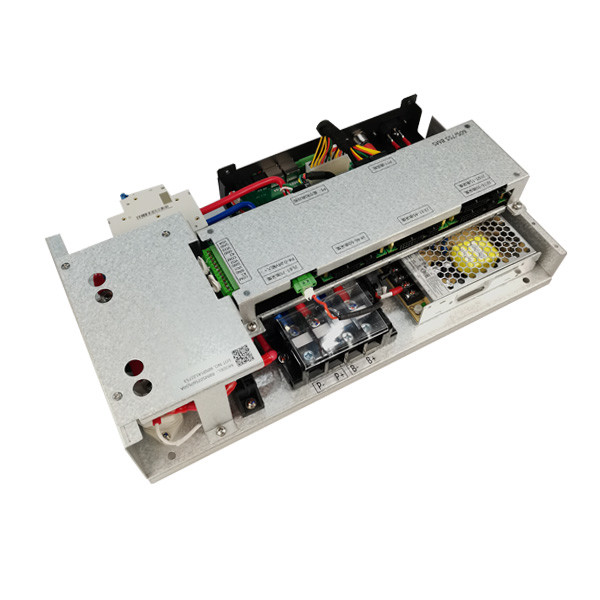

Products Display
Our Company
- Hunan GCE technology Co., Ltd. was founded in 2012, specializing in R&D and manufacture high voltage battery management system
(BMS) for KWh to MWh power system.
- Products are exported to more than 150 countries.
- 30s to 75s BMS adopts master-slave integrated design and relay
solution to meet the lithium battery demand of multiple strings of
small capacity
batteries. Greatly reduce the use cost of users.
- 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single
lithium batteries within 1000V.
