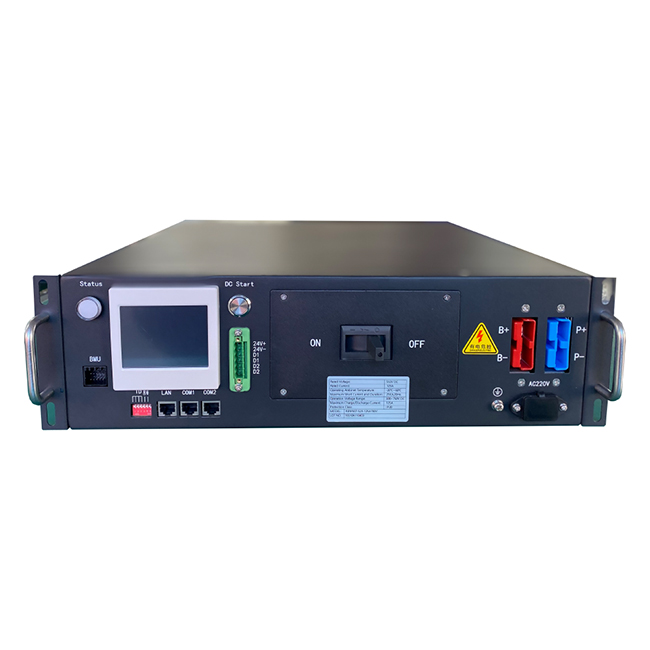

GCE 816V DC 125A HV Relay Solution Master Slave BMS 8S Lifepo4 BMS

Model no.: RBMS07S2-3-125A816V

BMS Solution:

Number of moudel strings: 255S (15S*17)

1set Master BMS,

147sets 15S Slave BMU

17sets 15S Wire Harness

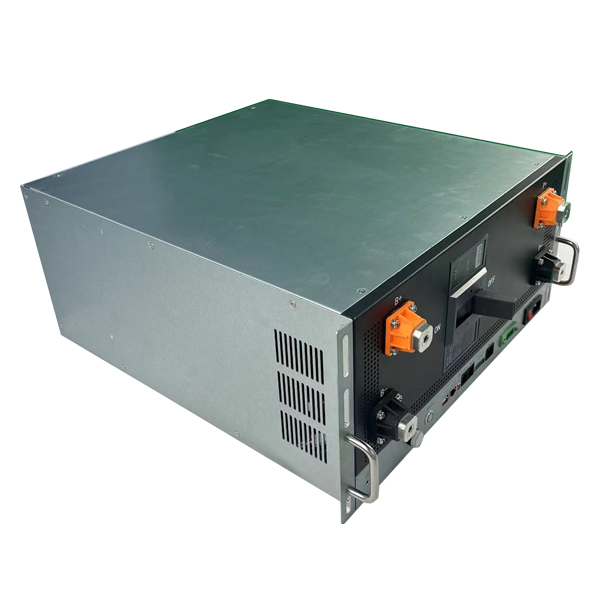

5U standard 19inch case

Efficient, stable and reliable

Size: 440*178*500mm

Accessoires including:

12S-24S BMU(Slave)	Wire harness-Signal acquisition wire	Wire harness-communication wire
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication	18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm	Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
13sets 15S Slave BMU	13sets 15S Wire Harness	13sets 15S Wire Harness

Specification

• 816V125Amp Lifepo4 BMS




Communication protocol:

Rs485, CAN, LAN

* 5U standard 19inch case

* Efficient, stable and reliable

* size:W440*H223*D650mm

Product Name	High voltage BMS ( Battery Management System)
Model no.	RBMS07S2-3-125A816V
protecting method	MCCB+Contactor
Rated Current range	-500A~500A
Voltage Range	384V-1000V
Current Sampling Accuracy	1.0%FSR
Communication interface with BMU	RS485/CAN
Communication interface with BMU	CAN
Communication interface with BMU	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(W*H*D)mm	5U (440*178*600)
Way out	Front
Tap center	Support(Optional)
Net weight	41kg
