To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | 3U |
| Certification : | CE/RoHS/SGS/MSDS |
| Price : | negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076 |
| Supply Ability : | 1000 sets/month |
| Delivery Time : | 15-20 days |
| MOQ : | 1pc sample accepted |

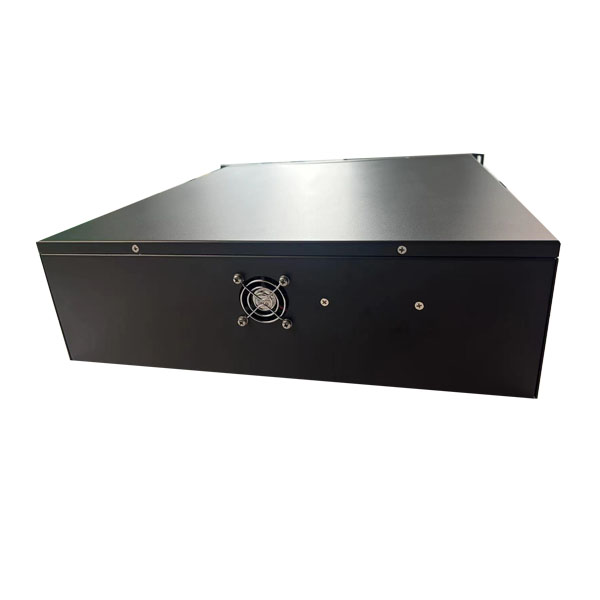

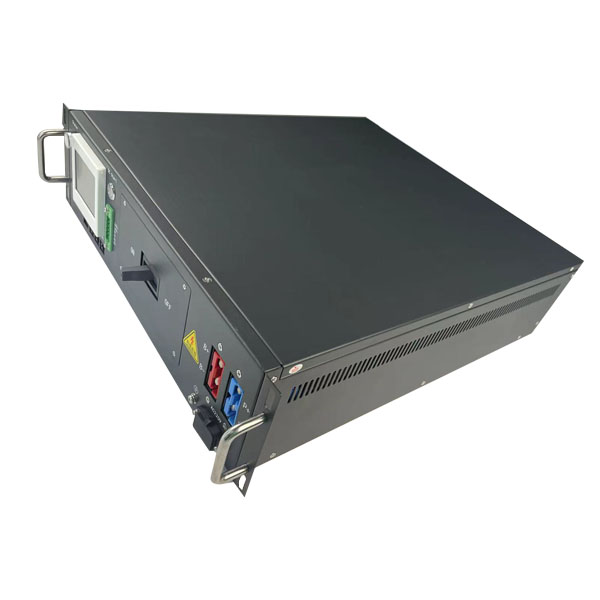

Relay Solution Solar Battery Management System 480V DC 63A 3 Level Structure High Voltage BMS Lifepo4
Quick Details
Place of Origin:China
Application:Solar Energy Storage Systems, Energy Storage
Brand Name:GCE
Model Number:3U
Product name:BMS
Model:3U
Voltage:480V
Battery type:LFP, NCM, LTO...
Rack configuration:standalone or Parallel
Current:63A
Features:DC&AC dual power supply
Weight:21kg
Design:Master BMS
Advanced Battery Management System --- The highly integrated battery management system enables seamless monitoring.
Perfect self-test and operational status detection, with HMI display, system operation information at a glance.
Perfect and reliable system control and protection strategies to fully protect the battery safety, extend the life of the battery escort.
Modular design, configurable, scalable --- flexible combination of multiple energy storage unit
Can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and output interfaces, support for most of the market with PCS, monitoring server communication.
Capacity is large --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.
PCS has a protocol control function, the choice of circuit breaker version .
PCS without protocol control function, the choice of contactor + breaker version.
Automatic circulation control and automatic parallel machine off-line control, can be easily
Parallel battery. (Model suffix selection D).
Specification
| item | value |
| Place of Origin | China |
| Hunan | |
| Application | Solar Energy Storage Systems |
| Brand Name | GCE |
| Model no. | RBMS07-S23-125A336V |
| protecting method | MCCB+Contactor |
| Rated Current range | -125A~125A |
| Voltage Range | 120V-336V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with UPS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | Communication interface with SBMS |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | Yes(Optional) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | Up to 3 |
| Maximum qty of BMUs | 13 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤15W |
| Size(W*H*D)mm | 3U (482*132*500mm) |
| Way out | Front |
| Mid-line | Not support |
| Tap center | Not support |
| Net weight | 15kg |
