480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw

Hunan GCE Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw from wholesalers

    Buy cheap 480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw from wholesalers
    • Buy cheap 480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw from wholesalers
    • Buy cheap 480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw from wholesalers
    • Buy cheap 480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw from wholesalers

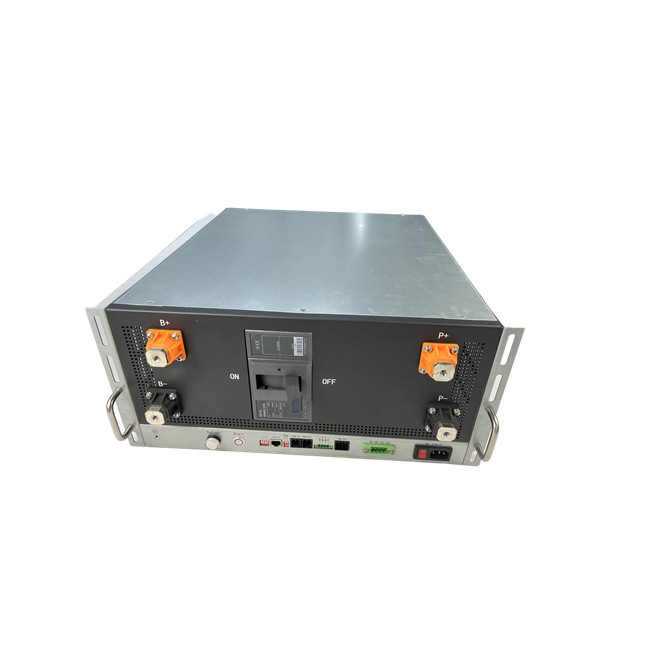

    480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07S20-400A480V
    Certification : CE/RoHS/UN38.3/MSDS
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000+pcs+1 month
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw

    Solar Battery Storage 480V 400A BMS for Battery Rack Cabinet 20Kw 19Kw Inverter Battery Cabinet For Ess System


    --Specification--

    Product Name
    BMS
    Model no.
    RBMS07S2-0-400A480V
    protecting method
    MCCB+Contactor
    Rated Current range
    -400A~400A
    Voltage Range
    0V-480V
    Current Sampling Accuracy
    1.0%FSR
    Communication interface with PCS
    RS485/CAN
    Communication interface with BMU
    CAN
    Communication interface with SBMS
    RS485/CAN
    Communication with monitoring software/EMS
    Ethernet
    Support IAP upgrade
    Yes
    Support HMI display and parameter
    No(Optional plug in)
    Insulation detection
    Yes(Optional)
    High voltage power module
    Support DC start (optional)
    Dry contact output (normally open)
    No
    Maximum qty of BMUs
    20
    Power
    24VDC(18~28V)
    Power consumption
    ≤20W
    Size(W*H*D)mm
    5U (W450*H230*L500mm)
    Way out
    Front
    Tap center
    Support(Optional)
    Net weight
    32kg

    480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw

    480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw480V 400A Solar Battery management System , BMS For Battery Rack Cabinet 20Kw 19Kw

    --BMS System Structure--



    --Production Line--

    --Company Profile--


    Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

    --FAQ--


    1.Where can I get the price?
    We will offer you the best quote in 24 hours after we get the product specifica-
    tions such as voltage capacity application etc Also we can provide the product
    pictures, videos and catalogue.


    2.How can you guarantee your quality?
    Sample order is available. We will make the big order exactly the same as you request. The
    order can be also placed through alibaba trade assurance, it can guarantee the
    quality and delivery, if it has quality disrepency, Alibaba will help you and return
    the money to you.


    3. What about the lead time for mass production?
    It depends on your order quantity Normally 5-10 days .if we have sample in stock
    5-8 days. for newly produced samples.20-30 days for big order.


    4.What shipping method can i choose? How about the shipping time?
    By Express (5-10working days), suitable for urgent time or small quantity.
    By Sea (15-30 days), it suitable for mass production.
    By Air (4-7 days), from airport to airport.
