    Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07S23-50A144V
    Certification : CE/RoHS/UN38.3/MSDS
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000+pcs+1 month
    Delivery Time : 8-15 days
    • Product Details
    • Company Profile

    Lifepo4 high voltage BMS(HV BMS) With Relay Contactor 45S 144V 50A 2U

    45S 144V 50A 2U smart BMS for high voltage BMS(HV BMS) with relay contactor lifepo4 bms slave master for battery energy storage


      • 144V50Amp

    Communication protocol:
    Rs485, CAN, LAN, Dry contact

    * 2U standard 19inch case * Efficient, stable and reliable * size:W440*H88*D500mm

    Specification
    Product Name
    BMS
    Model no.
    RBMS07S2-3-50A144V
    protecting method
    MCCB+Contactor
    Rated Current range
    -50A~50A
    Voltage Range
    48V-144V
    Current Sampling Accuracy
    1.0%FSR
    Communication interface with PCS
    RS485/CAN
    Communication interface with BMU
    CAN
    Communication interface with RBMS
    RS485/CAN
    Communication with monitoring software/EMS
    Ethernet
    Support IAP upgrade
    Yes
    Support HMI display and parameter
    Yes(Optional)
    Insulation detection
    No
    High voltage power module
    Support DC start (optional)
    Dry contact output (normally open)
    Up to 3
    Maximum qty of BMUs
    5
    Power
    24VDC(18~28V)
    Power consumption
    ≤20W

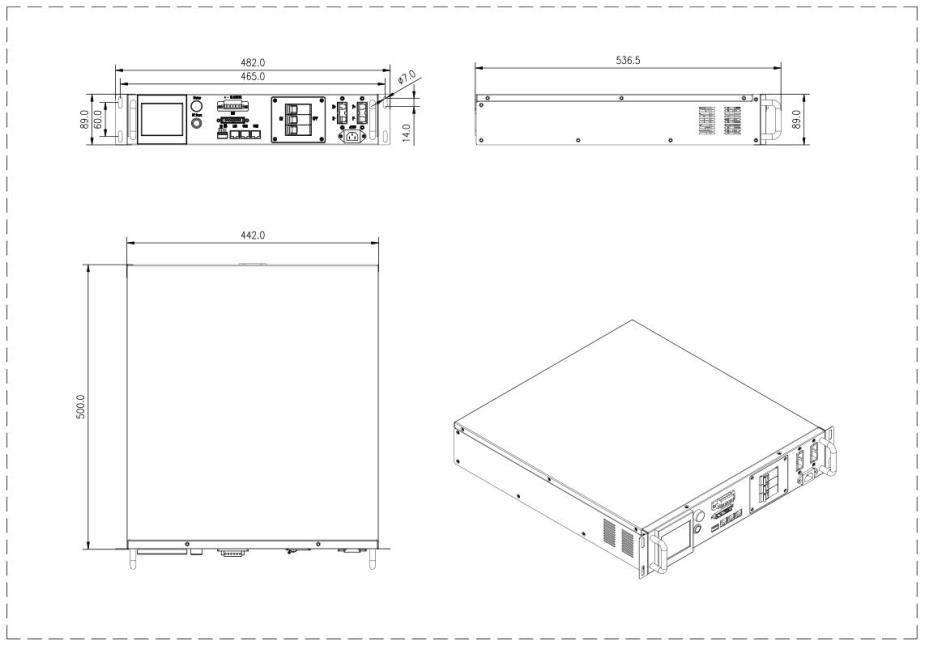

    Size(W*H*D)mm
    2U (440*88*500)
    Way out
    Front
    Mid-line
    Not support
    Tap center
    Not support
    Net weight
    14kg

    Certification
