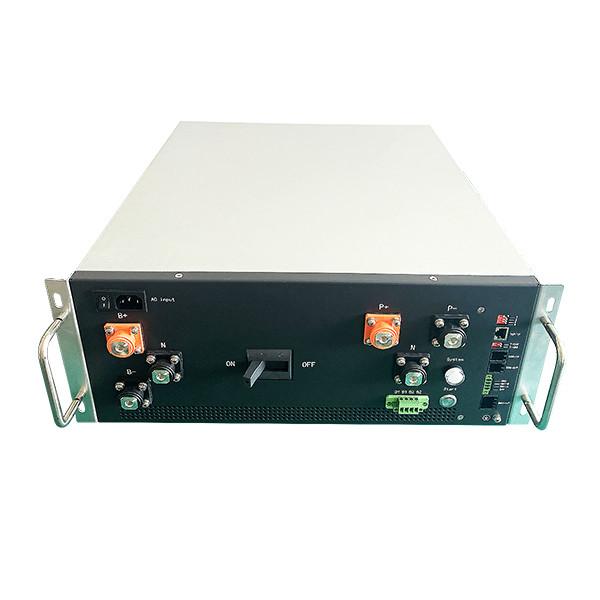

+/- 192V=384V 250A 120S cells Lithium high voltage BMS lifepo4 bms center tap relay bms breaker UPS

--Specification--

Product Name	BMS
Model no.	RBMS07S3-0-63A384V
protecting method	MCCB+Contactor
Rated Current range	-63A~63A
Voltage Range	96V-384V
Current Sampling Accuracy	1.0%FSR
Communication interface with BMU	RS485/CAN
Communication interface with BMU	CAN
Communication interface with BMU	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(W*H*D)mm	4U (440*178*600)
Way out	Front
Tap center	Support(Optional)
Net weight	23kg

--Packing&Shipping--

--BMS System Structure --

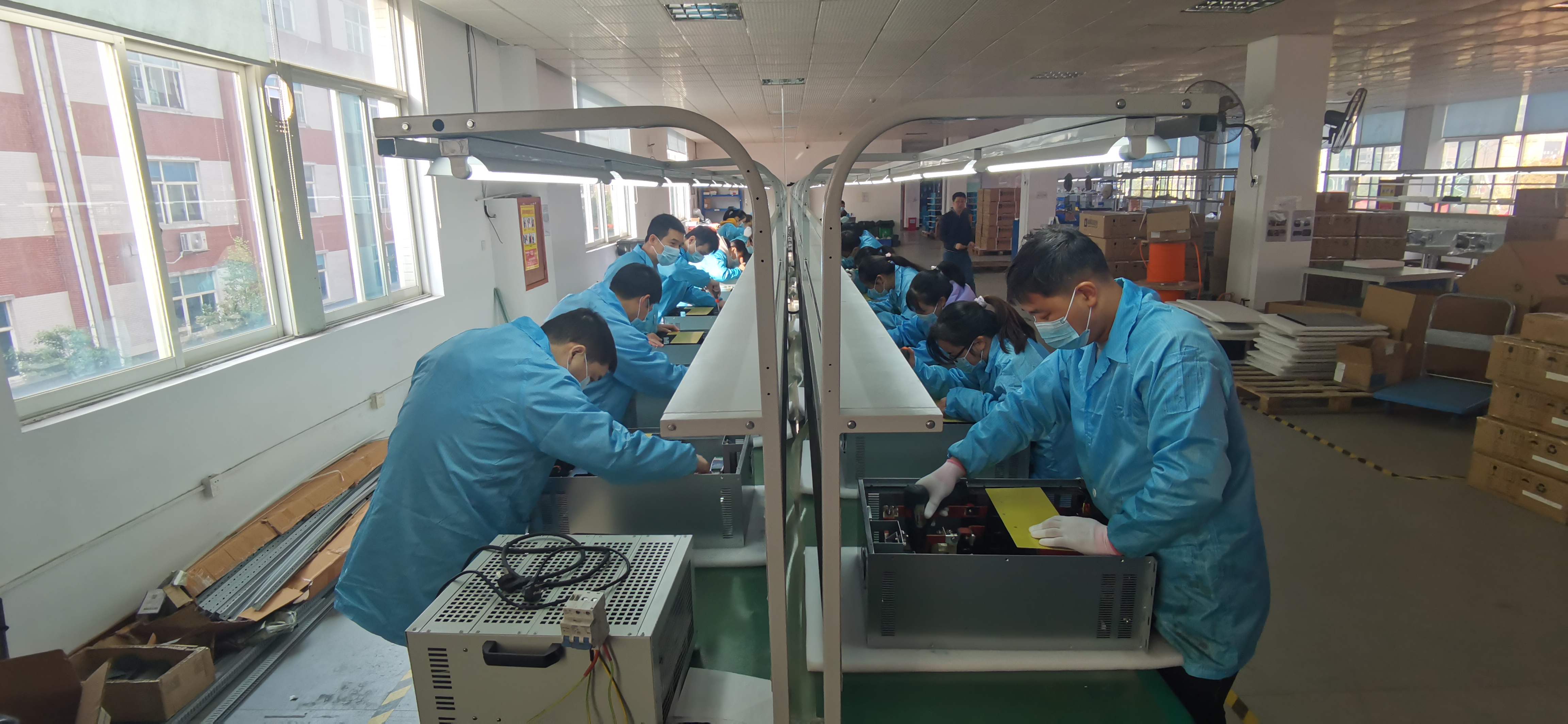

--Production Line--

--Products Features--

• Multi-string management – for large scale systems of parallel battery strings
• Battery system performance algorithms (SOC, SOHc,SOHr, power available, optimal charging)
• High voltage interlock loop monitoring and control
• Isolation resistance measurement
• Battery usage recorder
• Functional safety features protected by SafeRTOS
• Telematics – data collection

--Company Profile--

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

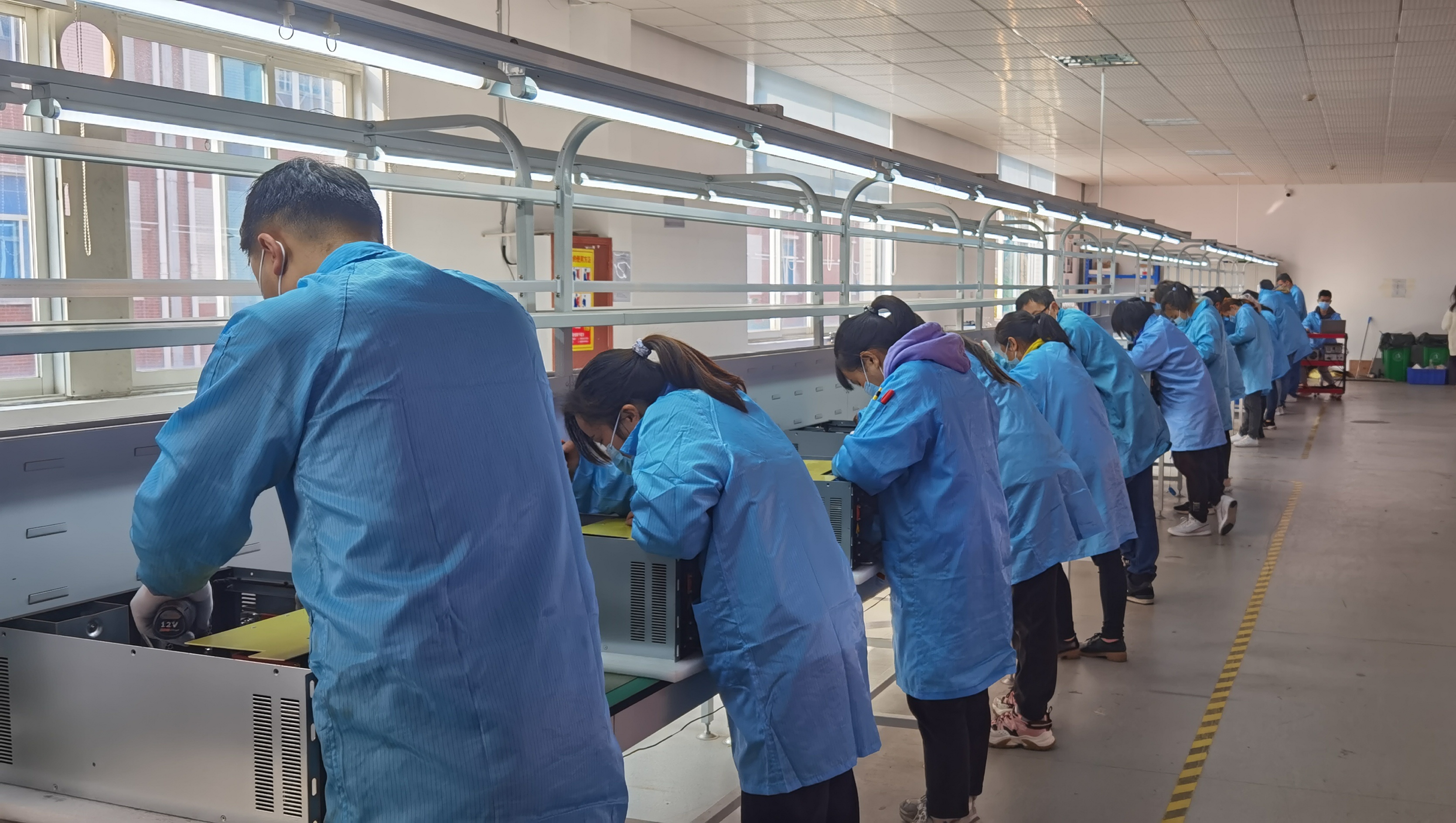

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
