To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S70S100A |
| Certification : | CE/RoHS/MSDS/ |
| Price : | can be renegotiate |
| Supply Ability : | 1000 set per month |
| Delivery Time : | 15-20 day |

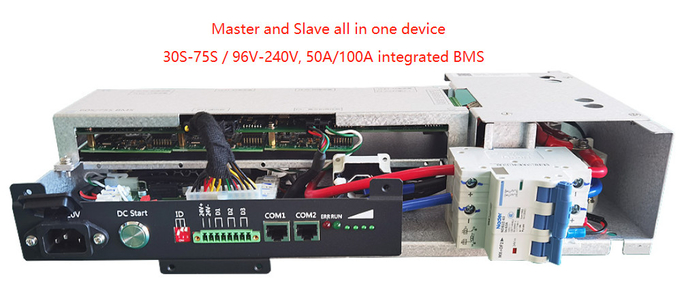

GCE 70S 224V 100A Unique Design BMS Lithium Battery Management System
Model No.: RBMS07S70S100A
1.It is high integrated with less installation space.

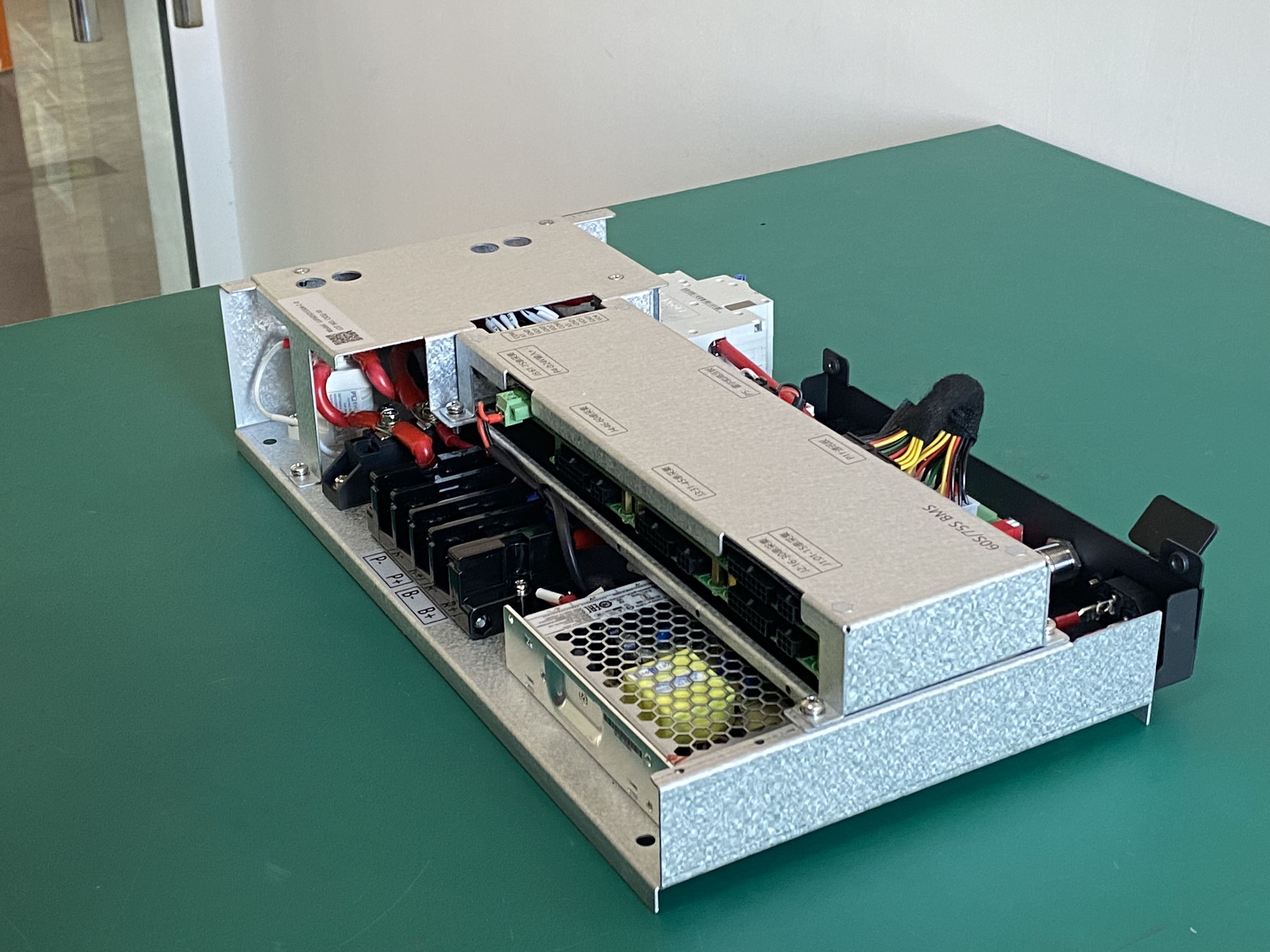

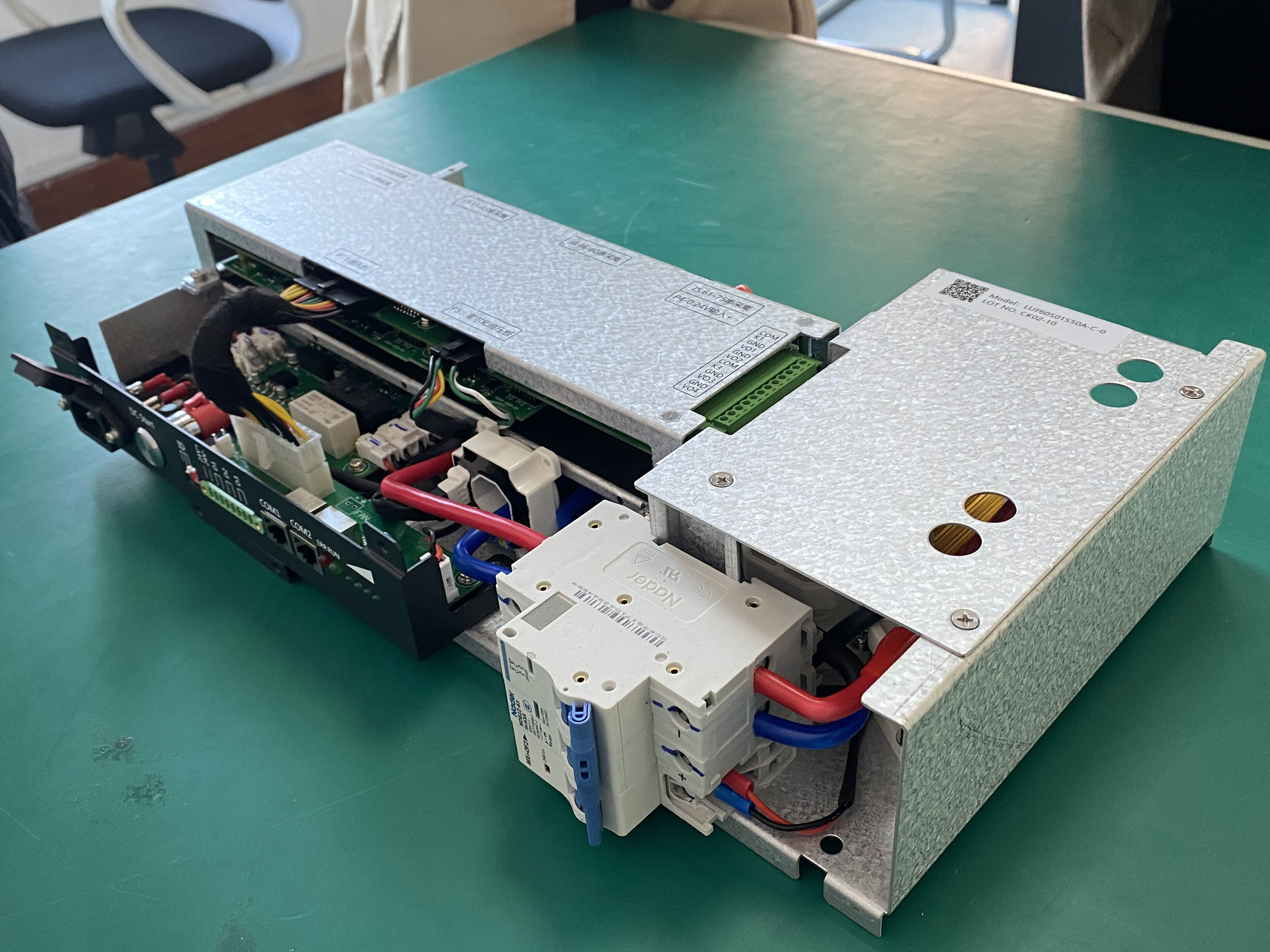

Detail View:
| No. | Accessories name | Remarks |
| 1 | High pressure plate box | |
| 2 | BMU box | |
| 3 | Micro break switch | Select model according to |
| 4 | Contactor subassembly | Select model according to |
| 5 | Hall sensor | Select model according to |
| 6 | Interface board | |
| 7 | Start button | |
| 8 | AC socket | For AC startup |
| 9 | Power module | LRS-100-24 |
| Mark | Description | Remarks |
J1 | Power line socket | Connected with switching power supply and contactor |
| J2 | GPRS socket | Connect to optional GPRS |
| J3 | Hall and high voltage board socket | Connected to Hall sensor and high pressure plate |
| J4 | Interface board socket | Connect with interface board |
| J5-1 | 1-13 series core sampling socket | |
| J5-2 | 1-3 temperature sampling socket | |
| J6-1 | 14-26 series battery sampling socket | |
| J6-2 | 4-6 temperature sampling socket | |
| J7-1 | 27-39 series core sampling socket | |
| J7-2 | 7-9 temperature sampling socket | |
| J8-1 | 40-52 series core sampling socket | |
| J8-2 | 10-12 temperature sampling socket | |
| J9- | 53-65 series core sampling socket | For 65 string extension reserve |
| J9- | 13-15 temperature sampling socket |
Download file: GCE 30S-75S integrated BMS specification Ch-EN V2...
